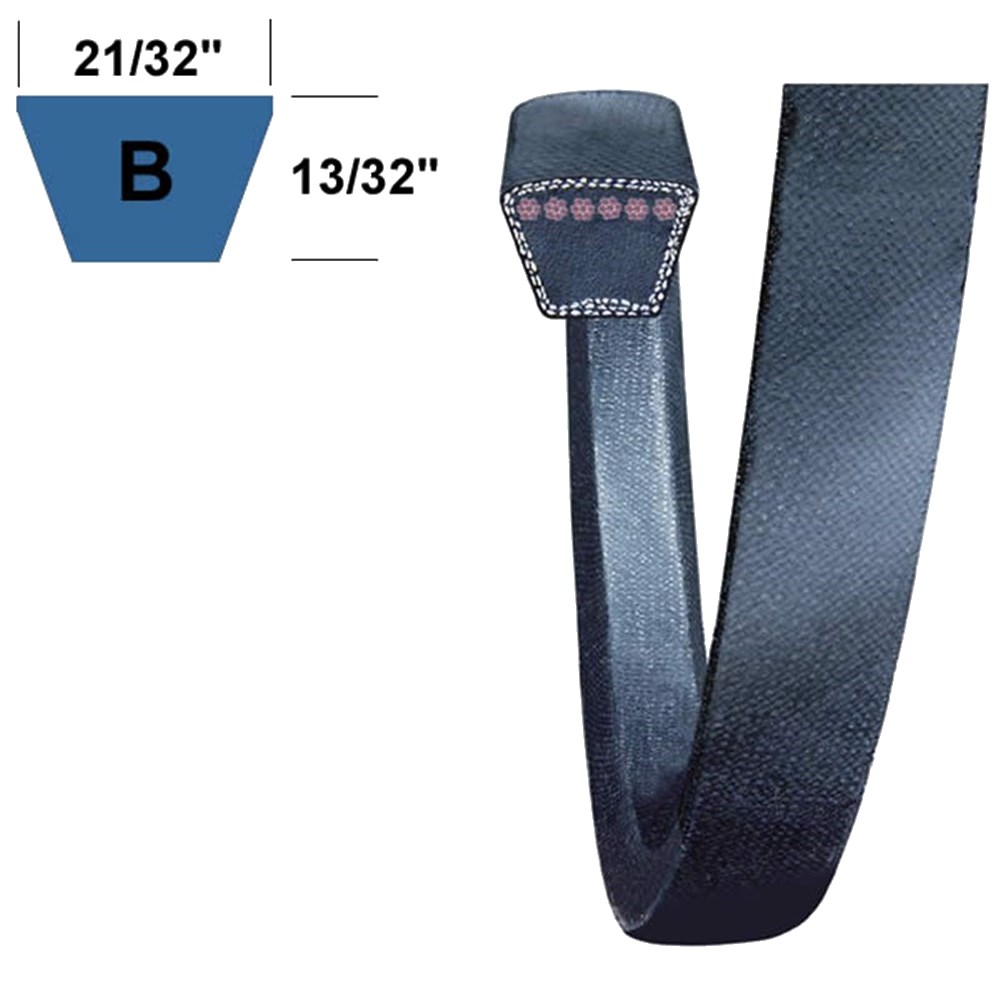

High performance raw-edge, center-corded v-belt for use in demanding applications. Featuring superior flexibility and wear resistance, raw-edge construction provides increase power transmission, improved grip and controlled slipage. Raw-edge belts are ideal for high performance drives found in agricultural, industrial and commercial applications.
Dimensions
| Dimension |
Imperial (Inches) |
Metric (mm) |
| Nominal Top Width |
21/32" |
16.66 |
| Nominal cross-section |
11/32" |
11.11 |
| Length Internal (Li) |
Li=187" |
4749 |
Features
- Length designation Li = length internal
- Raw-edge multi-layer construction
- High tensile strength
- Improved flexibility for use with back idlers
- Increased heat dissipation for superior service life
- Controlled grip
- Anti-Static, oil & heat resistant
- Temperature range -25°C to +100°C
Construction
- Multi-layer fabric provides extra strength and acts as a crack barrier under reverse bend conditions
- High modulus polyester cords placed at the centre neutralises the reverse bending stress
- Special rubber compound for better grip on smaller diameter pulleys
- The unique design of raw edge laminated side-walls facilitates high power transmission and faster heat dissipation
BrandsWe supply several br
0022150484 246727 3287276M2 1415261R1 1416434R1 1416543R1 00880022150484 0880022150484 5301886 5302187 DEUTZ 1320 CASE IH 1630 NEW HOLLAND TR85 MASSEY 542 - Self Propelled MASSEY 3342 - Self Propelled NEW HOLLAND TR70 DEUTZ 1600 MASSEY 542 - PTO MASSEY 3342 - PTO B187BL
