High performance raw-edge, center-corded v-belt for use in demanding applications. Featuring superior flexibility and wear resistance, raw-edge construction provides increase power transmission, improved grip and controlled slipage. Raw-edge belts are ideal for high performance drives found in agricultural, industrial and commercial applications.

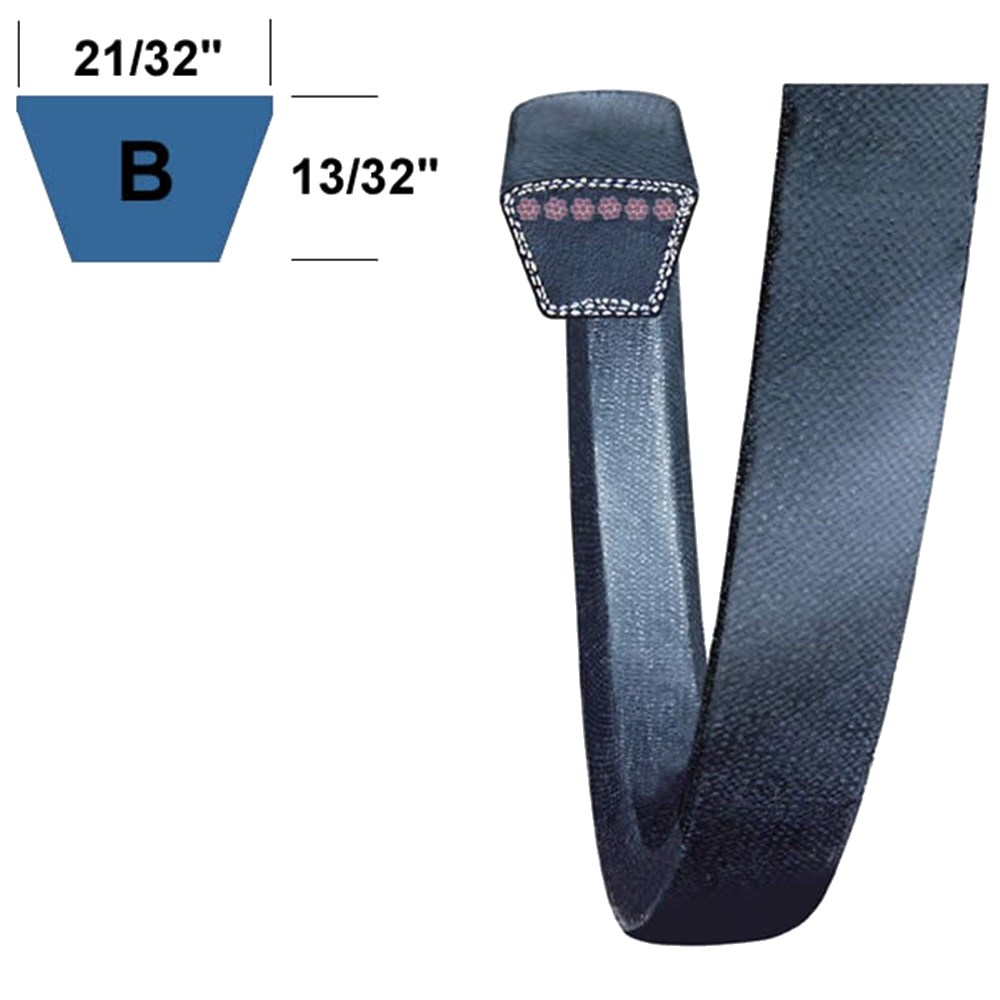

Dimensions
| Dimension |
Imperial (Inches) |
Metric (mm) |
| Nominal Top Width |
21/32" |
16.66 |
| Nominal cross-section |
11/32" |
11.11 |
| Length Internal (Li) |
Li=220" |
5588 |
Features
- Length designation Li = length internal
- Raw-edge multi-layer construction
- High tensile strength
- Improved flexibility for use with back idlers
- Increased heat dissipation for superior service life
- Controlled grip
- Anti-Static, oil & heat resistant
- Temperature range -25°C to +100°C
Construction
- Multi-layer fabric provides extra strength and acts as a crack barrier under reverse bend conditions
- High modulus polyester cords placed at the centre neutralises the reverse bending stress
- Special rubber compound for better grip on smaller diameter pulleys
- The unique design of raw edge laminated side-walls facilitates high power transmission and faster heat dissipation
Combine Hasrvester Fitment
| OEM |
Case IH |
|
| Part Numbers |
196371C1, 84172256 |
|
| Machine Location |
Straw Spreader Drive |
|
|
|
| Series |
Models |
Serial/Year |
| Case 14 Series |
1440, 1460, 1470, 1480 |
|
| Case 16 Series |
1640, 1644, 1660, 1666, 1670, 1680, 1688 |
|
| Case 21 Series |
2144, 2166, 2188 |
|
| Case 23 Series |
2344, 2366, 2377, 2388 |
|
| Case 25 Series |
2577, 2588 |
|
| Case Heritage (Old) |
914, 915 |
|
| Case 130 Series |
4130, 6130, |
|
| Case 150 Series |
4150, 5150, 6150, 7150 |
|
| Case 88 Series |
5088 |
|
