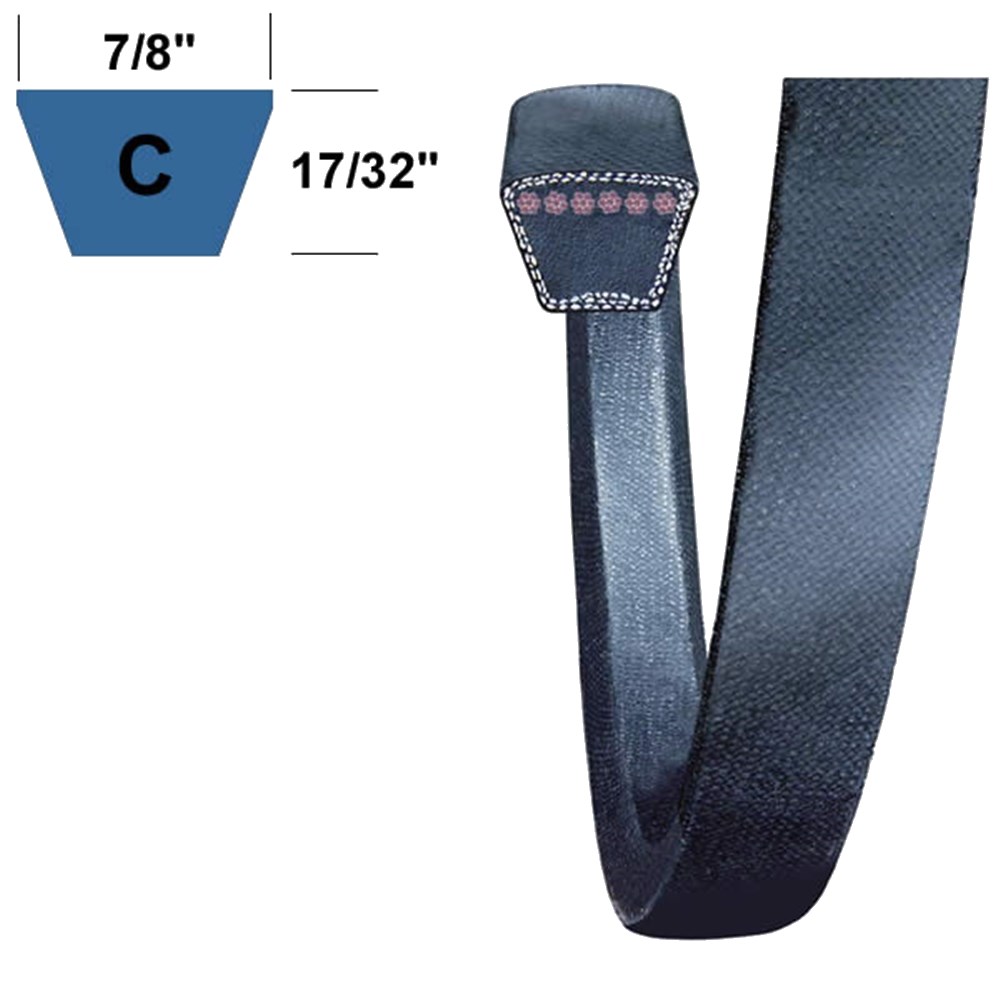

Wapped construction classical section belt for use in general purpose industrial, agricultural, commecial and domestic applications. Ideal where there is no high shock loading, back idlers or high duty cycles.
| Dimension |
Imperial (Inches) |
Metric (mm) |
| Nominal Top Width |
7/8" |
22.22 |
| Nominal cross-section |
17/32" |
13.49 |
| Length Internal (Li) |
Li=48" |
1219 |
Features
- Wrapped fabric cover for improved service life.
- Economic price-performance design
- Anti-Static, oil & heat resistant
- Temperature range -30°C to +80°C
Construction
- Wear-resistant bias-cut neoprene rubberised polyester cotton fabric
- High tensile cord embedding cushion rubber compound
- High tenacity, low stretch, specially treated polyester cords
BrandsWe supply several brands, depending on what is in stock. When placing your order we will supply either PIX or TIMKEN branded belts. If you require a specific brand please specify this on the order.
826739R1 70805114 1410692R1 1410692R92 1418692R1 1419233R1 1440692R92 E46844 5303048 CASE IH 726 CASE IH A8-5 CASE IH A8-4 CASE IH 710 C45BL
