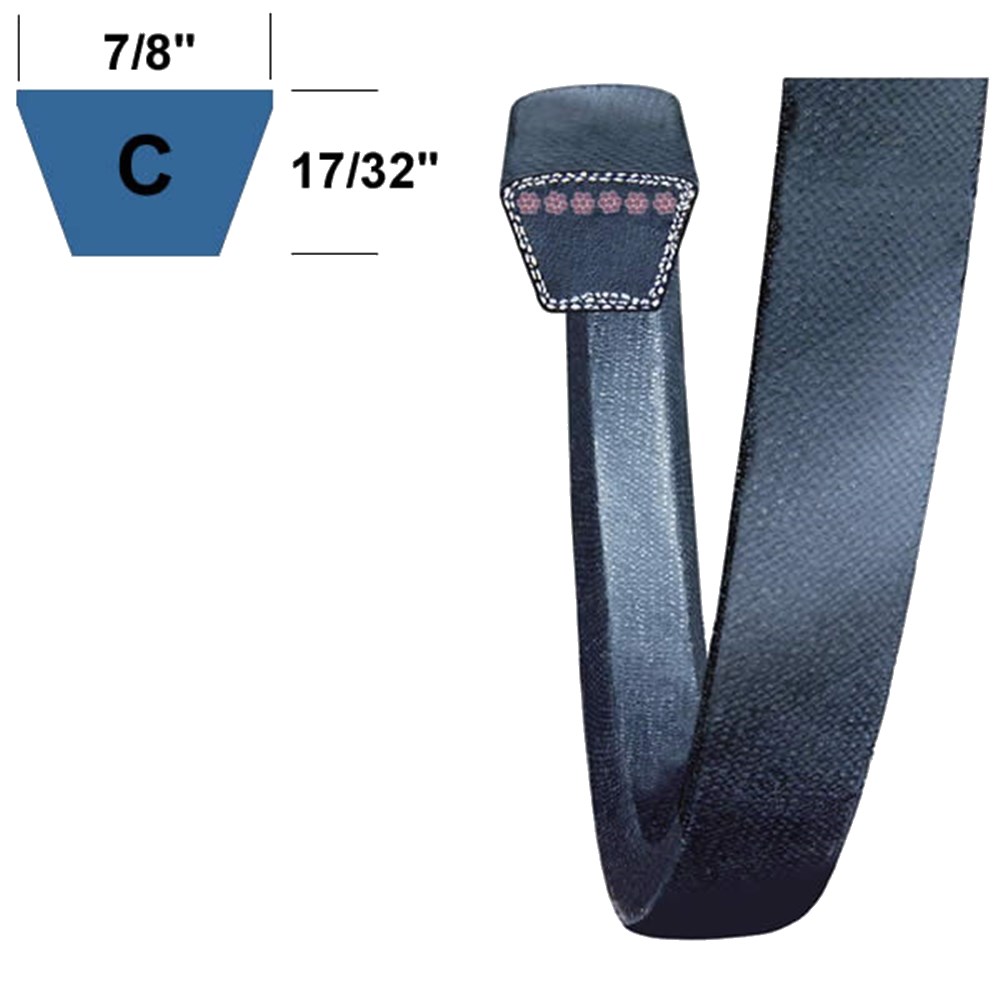

Wapped construction classical section belt for use in general purpose industrial, agricultural, commecial and domestic applications. Ideal where there is no high shock loading, back idlers or high duty cycles.
| Dimension |
Imperial (Inches) |
Metric (mm) |
| Nominal Top Width |
7/8" |
22.22 |
| Nominal cross-section |
17/32" |
13.49 |
| Length Internal (Li) |
Li=70" |
1778 |
Features
- Wrapped fabric cover for improved service life.
- Economic price-performance design
- Anti-Static, oil & heat resistant
- Temperature range -30°C to +80°C
Construction
- Wear-resistant bias-cut neoprene rubberised polyester cotton fabric
- High tensile cord embedding cushion rubber compound
- High tenacity, low stretch, specially treated polyester cords
BrandsWe supply several brands, depending on what is in stock. When placing your order we will supply either PIX or TIMKEN branded belts. If you require a specific brand please specify this on the order.
1415360R1 H23766 H23766H 9502654 Z21398 121960 121961 5300725 CASE IH 726 CASE IH 710 CASE IH 711 CLAAS Dominator 85 CLAAS Dominator 80 JOHN DEERE 55.SQ/B JOHN DEERE 95 C70BL
