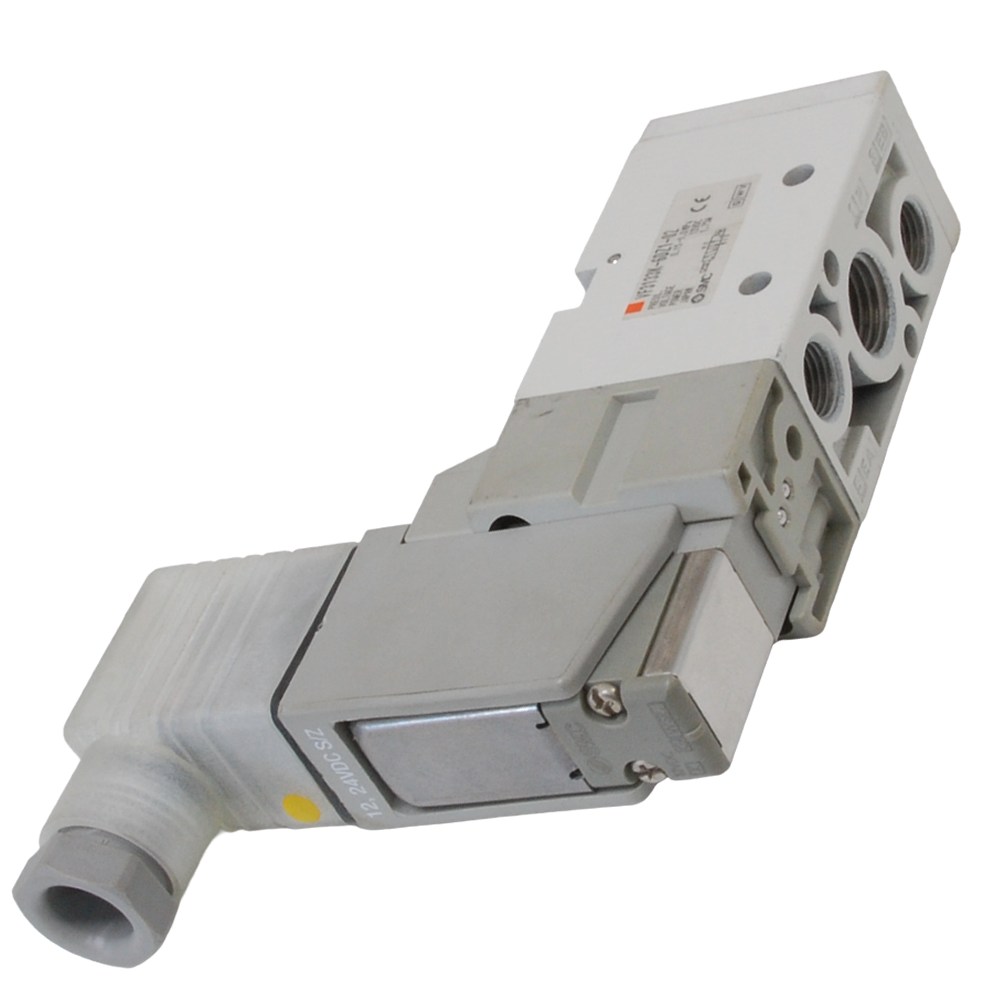

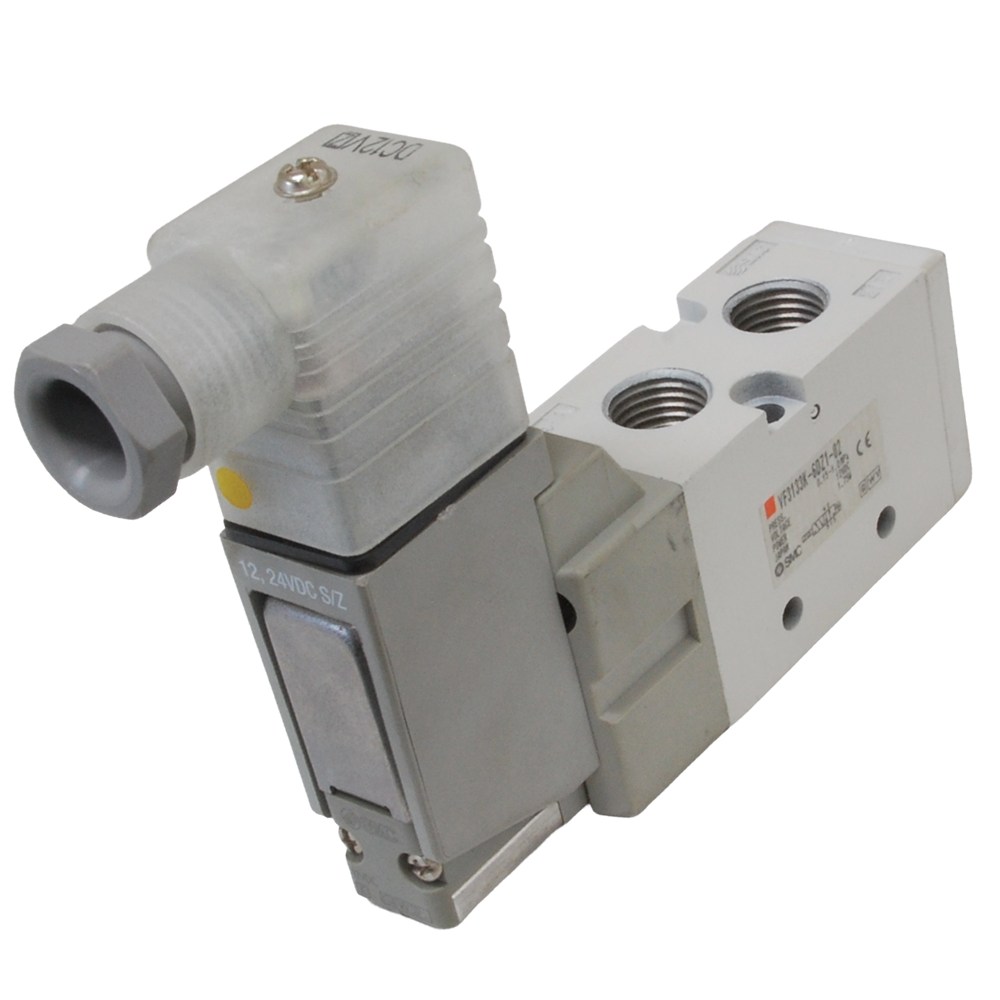

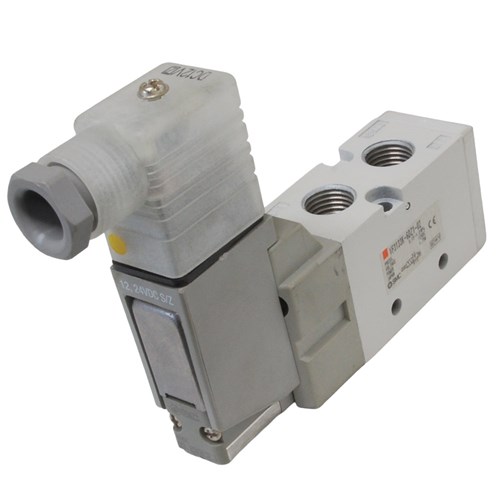

Genuine SMC® VF3000 Series
5-Port Pilot Operated Solenoid Valve
SMC® VF3133K-6DZ1-02 designed to control pneumatic actuators. Configured to extend and retract cylinders and is set up as a 5 port x 2 position. It utilizes a smaller internal pilot valve to operate the larger main valve, allowing for high-pressure control with lower power consumption.
Key applications
- Operate cylinders that perform repeatable actuations
- Powers diverter gates and pusher mechanisms to route or sort products on high-speed conveyor lines.
- Manages the raising and lowering of products for palletizing or inspection.
Features

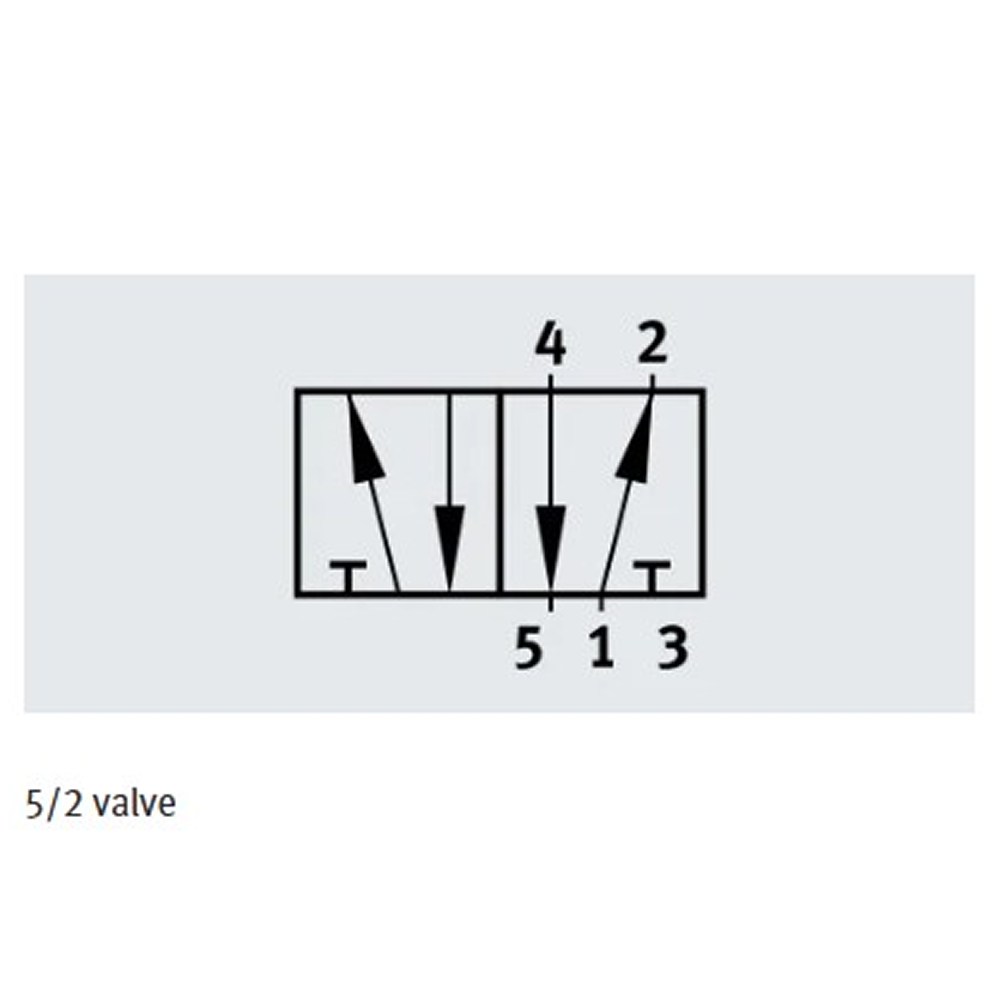

- Features five ports (typically Supply, two Output ports to a cylinder, and two Exhaust ports), allowing it to extend and retract double-acting cylinders.
- Compact 26.4mm body
- 981 NL/Min
Part Number
| VF3 |
1 |
3 |
K |
6 |
D |
Z |
1 |
02 |
| VF SERIES 3 BODY SIZE |
2 POSITION
SINGLE ACTING |
BODY PORTED |
MANUAL OVERIDE |
12VDC |
DIN CONNECTOR |
SURGE PROTECTION |
COMMON EXHAUST |
PORT 1/4"BSP |
