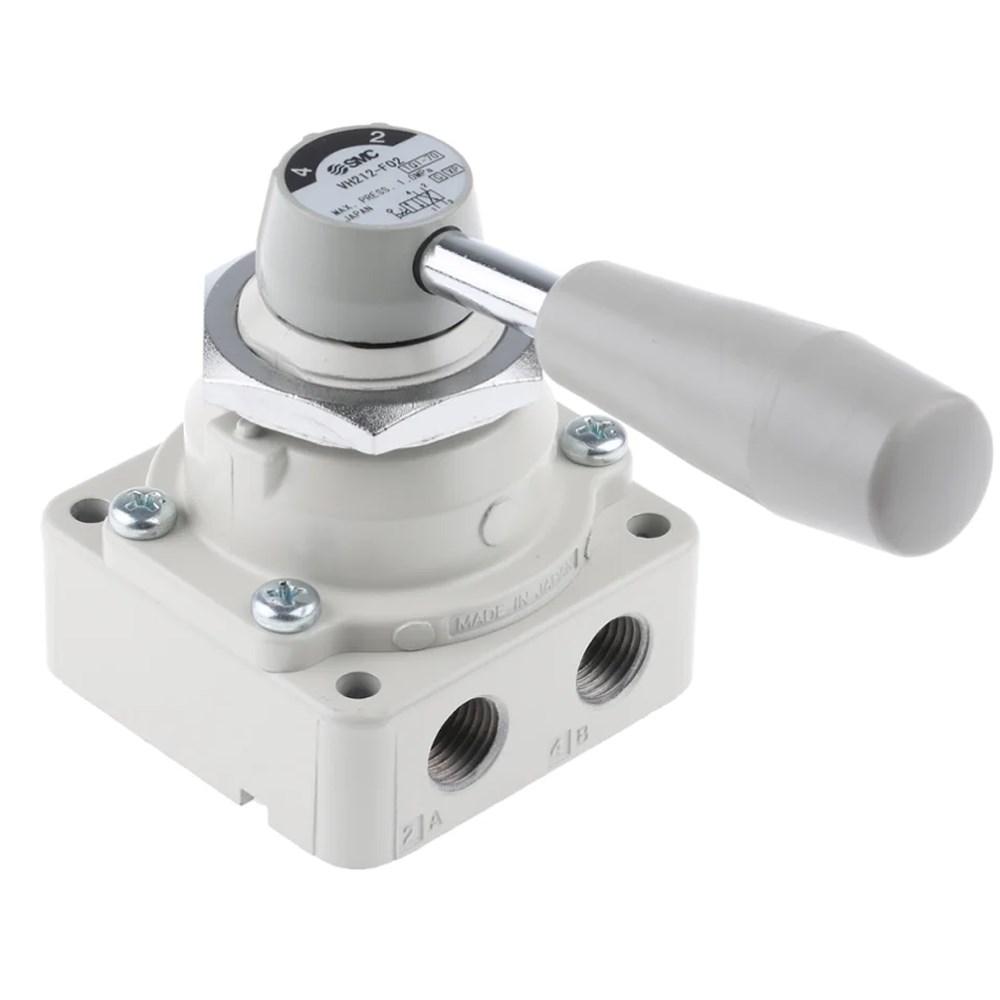

SMC MECHANICAL VALVE 4/2 HANDLE (BSP-F 1/4 PORTS) VH212-02

HANDLE (BSP-F 1/4 PORTS) VH212-02

Product Code: VH21202

Detail
Downloads

SMC 4-Way 2-Position Hand Valve - Two Action

This hand operated 4/2 valve has 4 ports and 2 positions. Designed to actuate a double action cylinder or rotary motor in both directions. When port is pressurised the opposite port is open to atmosphere. There is no neutral position.

Specifications

Hand operated
4-way 2-position (4/2)
Rotary handle action
Max pressure 1.5 Mpa
Port 1/4"-F BSP

Features

Rotary handle action
Exhaust through 1/4" BSP port in base
Panel or flush mount

Typical Uses

Control a double action cylinder or motor in two directions with no neutral position
