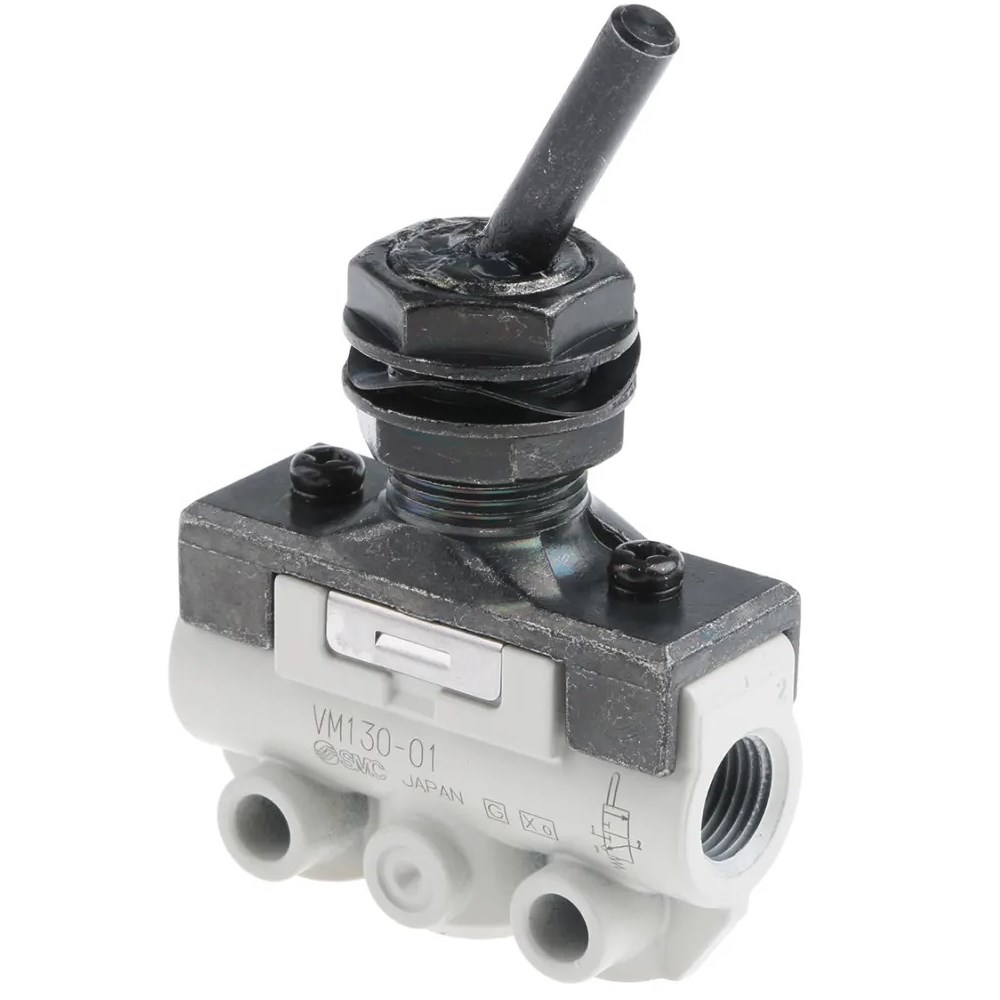

SMC MECHANICAL VALVE 3/2 TOGGLE LEVER (BSP-F1/8 PORTS) VM130-01-08A

TOGGLE LEVER (BSP-F1/8 PORTS) VM130-01-08A

Product Code: VM1300108A

Detail
Downloads

SMC (3-Way 2-Position) Toggle Valve - Single Action

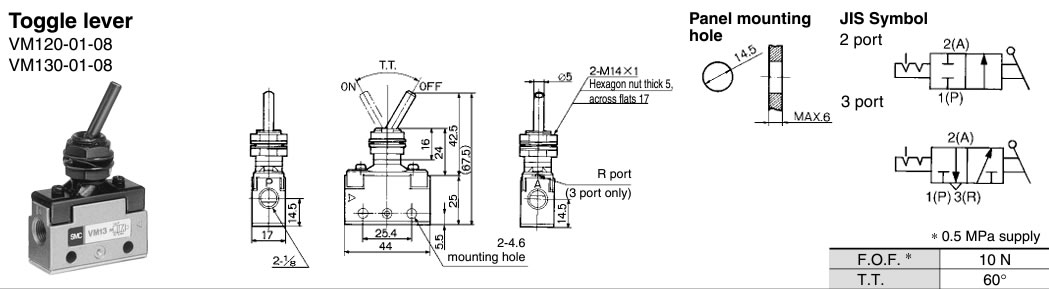

SMC VM100 series is a compact toggle actuated 3-way x 2-position mechanical valve. Ports are located on the side of the valve.

The valve is used to fill a cylinder, and also to exhaust it afterwards, so that a new working stroke can be realized. Therefore, a valve with two ports would not be adequate. Venting requires a third port.

Specifications

3-way normally closed
Operating Pressure -100kPa to 1.0 Mpa
Port 1/8"-F BSP

Features

Compact size
Ports located on each end
Toggle actuator

Typical Uses

Control a single action cylinder (fill cylinder & exhaust after)
Ideal for water truck valve actuators
