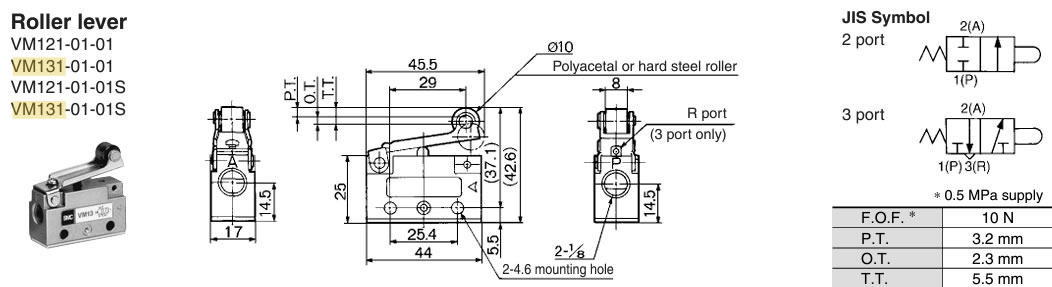

SMC MECHANICAL VALVE 3/2 ROLLER LEVER (BSP-F1/8 PORTS) VM131-01-01A

ROLLER LEVER (BSP-F1/8 PORTS) VM131-01-01A

Product Code: VM1310101A

Detail

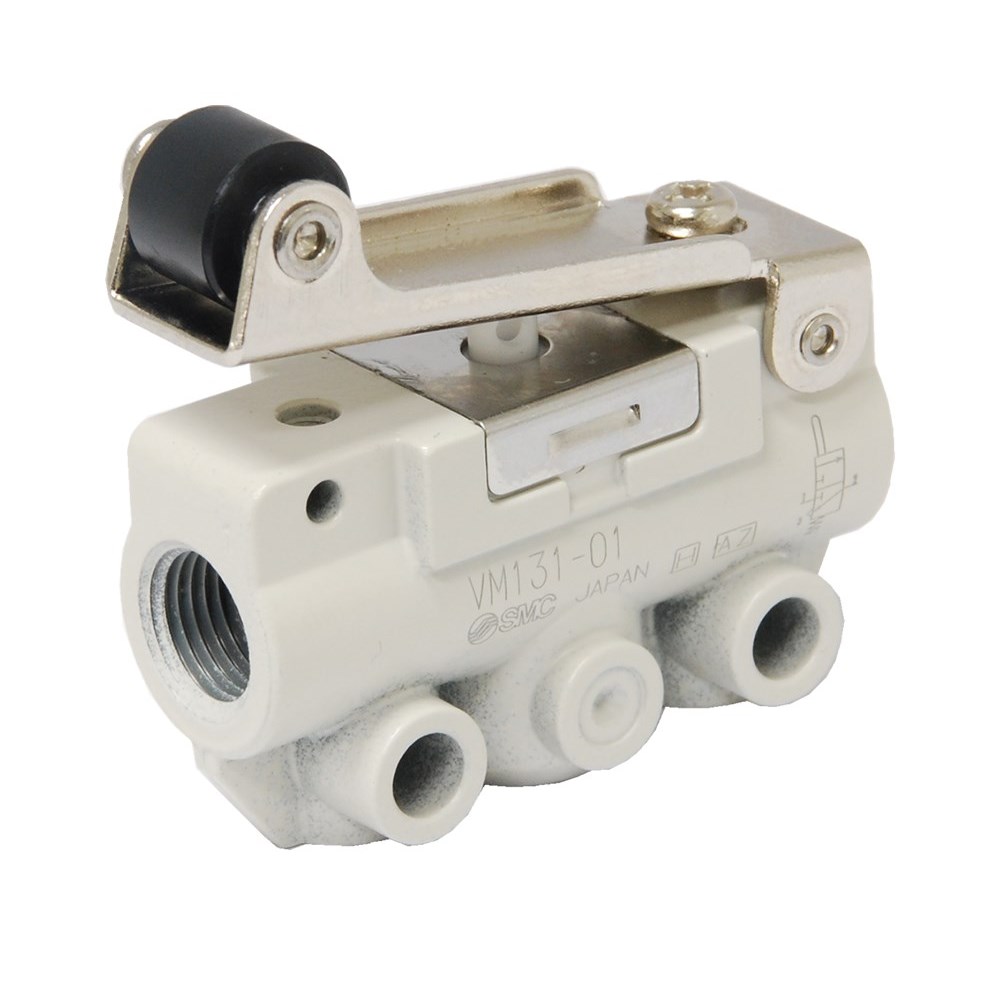

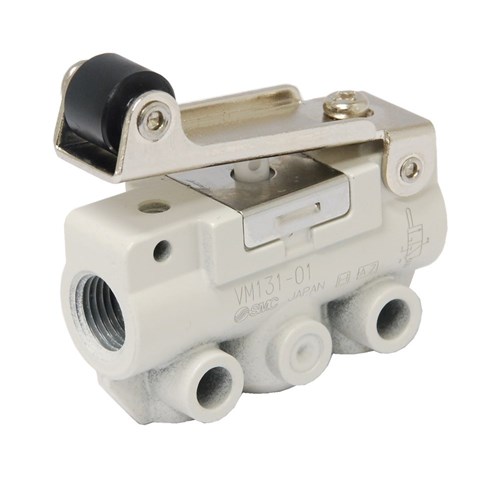

SMC (3-Way 2-Position) Roller Lever Valve - Control single acting cylinder

SMC VM100 series is a compact roller lever actuated 3-way x 2-position mechanical valve. Ports are located on the side of the valve.

The valve is used to fill a cylinder, and also to exhaust it afterwards, so that a new working stroke can be realized. Therefore, a valve with two ports would not be adequate. Venting requires a third port. Tye roller lever actuation is ideal for tripping an action.

Specifications

3-way normally closed
Operating Pressure -100kPa to 1.0 Mpa
Port 1/8"-F BSP

Features

Compact size
Ports located on each end
Roller lever actuator

Typical Uses

Control a single action cylinder (fill cylinder & exhaust after)
