Genuine SMC® VX Series
2-Port Direct Operated N.C Solenoid Valve

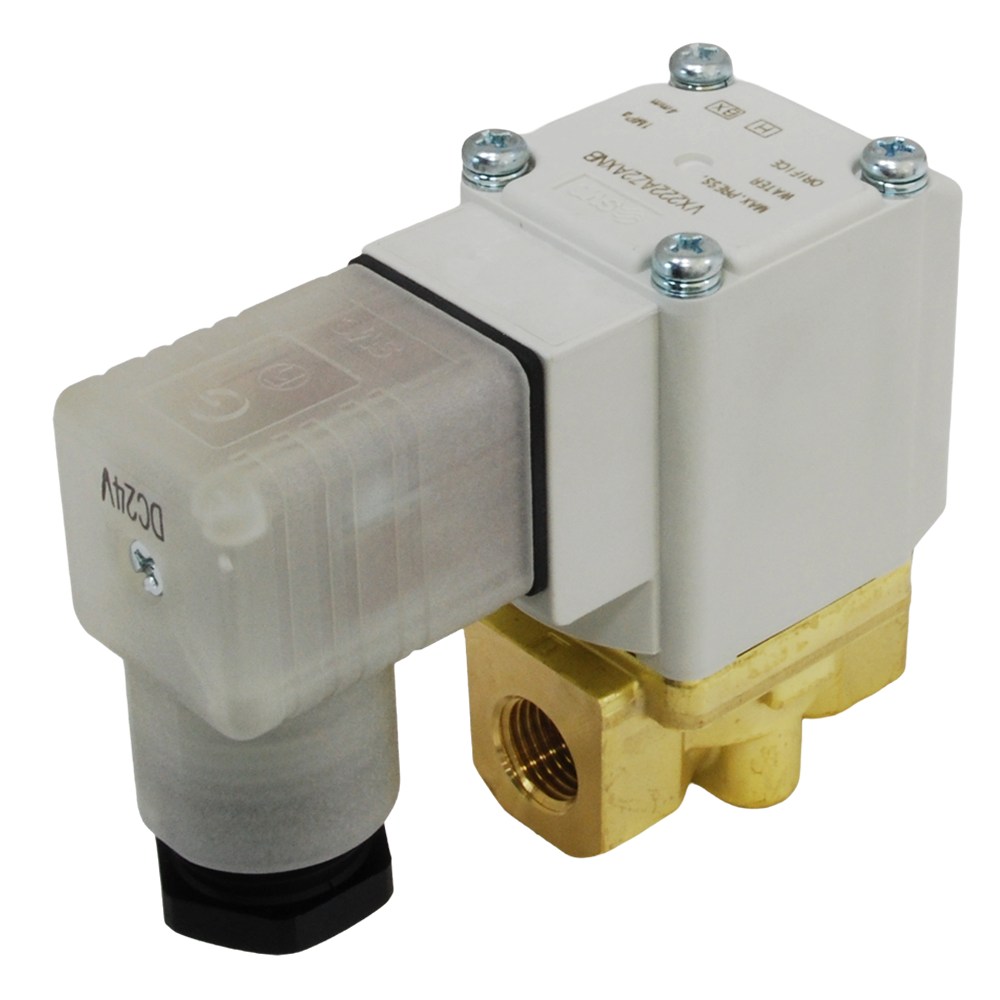

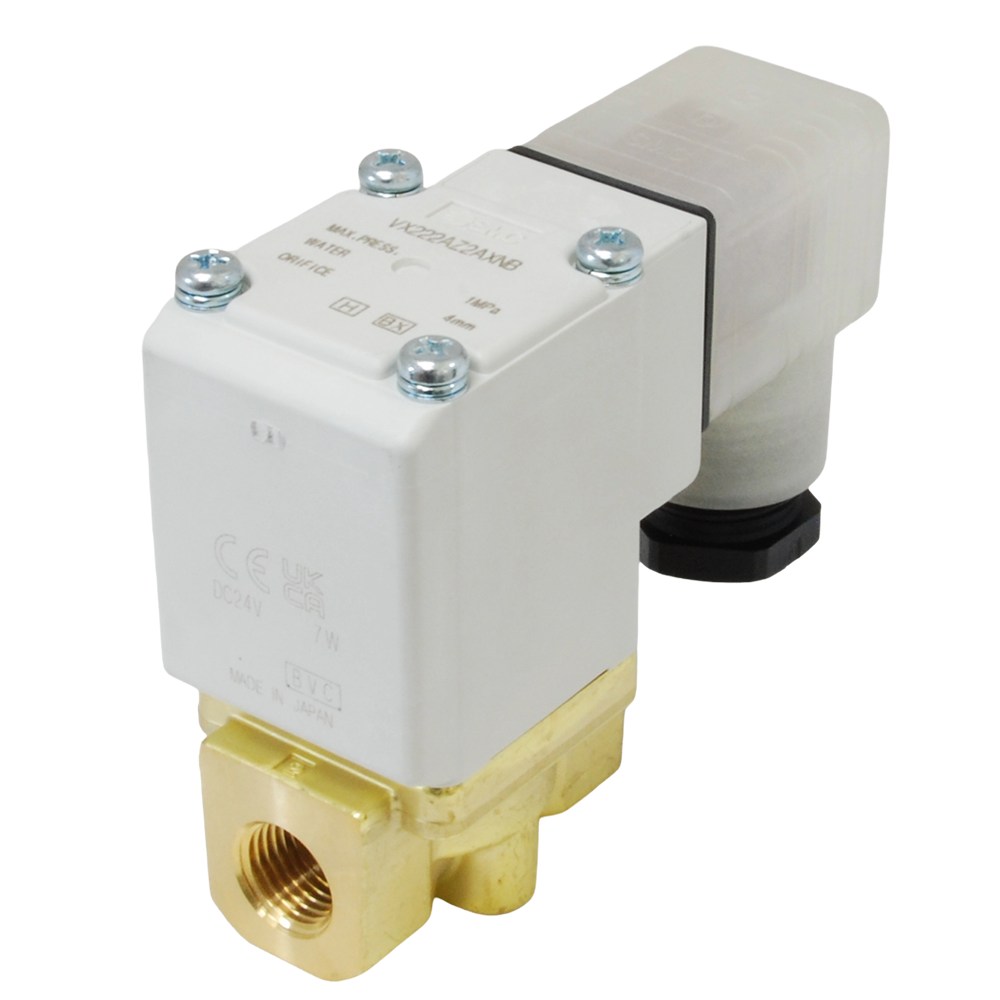

SMC® VX222A-Z2A-XNB is a 2-port direct-operated solenoid valve designed for water, featuring a 1/4" BSP port and 24VDC power with a DIN terminal, surge voltage suppressor, and light. It is a normally closed (N.C.) valve with a C37 (brass) body, NBR seal, and a max operating pressure of 1.0 MPa
Key applications
- Acts as a bridge between an electrical control system (PLCs) and physical fluid movement, allowing for remote operation without manual intervention.
- As a normally closed (NC) valve, it is used to safely block flow when power is lost and open the path only when energized.
- Its internal rubber bumpers reduce metal-on-metal noise, making it suitable for indoor factory settings where quiet operation is preferred.
- This valve is suitable for gravity-fed systems where operation is required from zero system pressure.
Part Number VX222A-Z2A-XNB
| VX2 |
2 |
2 |
A |
Z |
2 |
|
| VX2 SERIES |
BODY SIZE
1/4" BSP |
FLUID
(WATER) |
C37 BRASS
4MM ORIFICE |
VOLTAGE
SUPRESSION |
24VDC |
|
