SMC MECHANICAL VALVE 5/2 PUSH / PULL (BSP-F1/8 PORTS)

PUSH / PULL (BSP-F1/8 PORTS)

Product Code: VZM5500137

Detail
Downloads

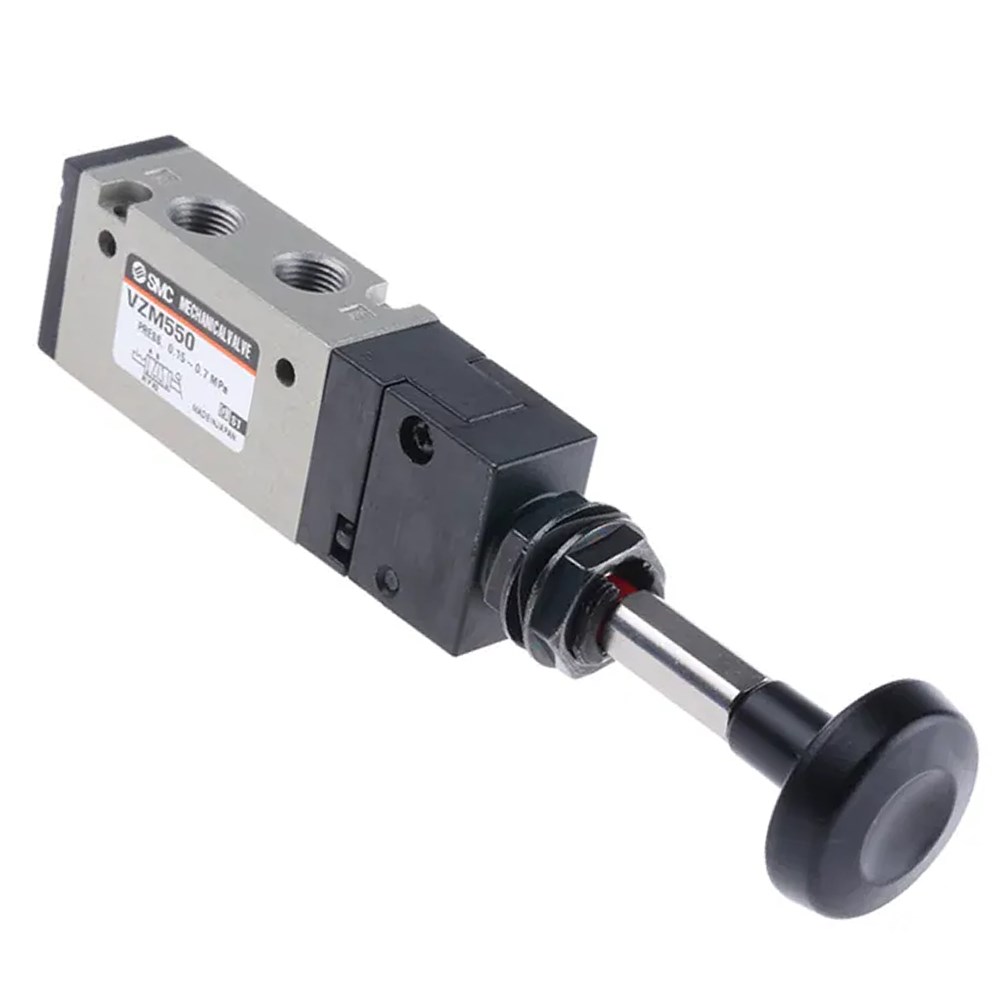

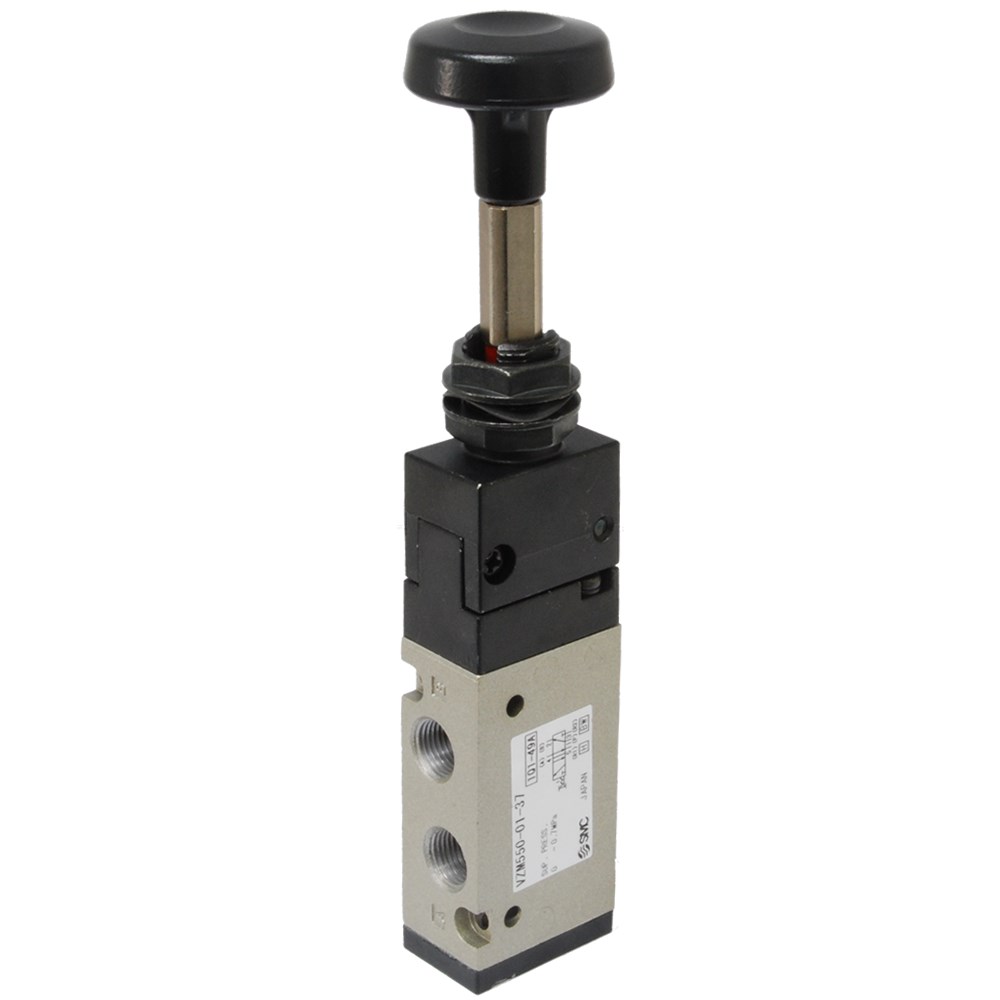

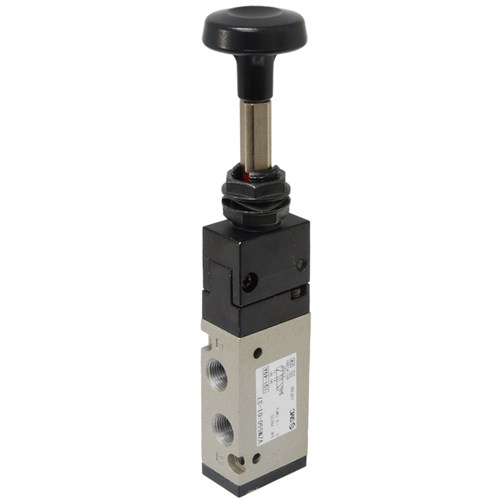

SMC (5-Way 2-Position) Push Pull - Two Action

The SMC VZM500 series valves are a five way two position with push-pull lever control valve. Ideal for controlling cylinders or pneumatic actuators simply push the lever one way or the other. Simple to use, install and maintain.

When port is pressurised, opposite port is exhausted.

Specifications

5-way 2-position (5/2)
Push-Pull Knob
Pressure 0-10 bar
Port 1/8" Rc

Typical Uses

Control a double action cylinder or motor in two directions
