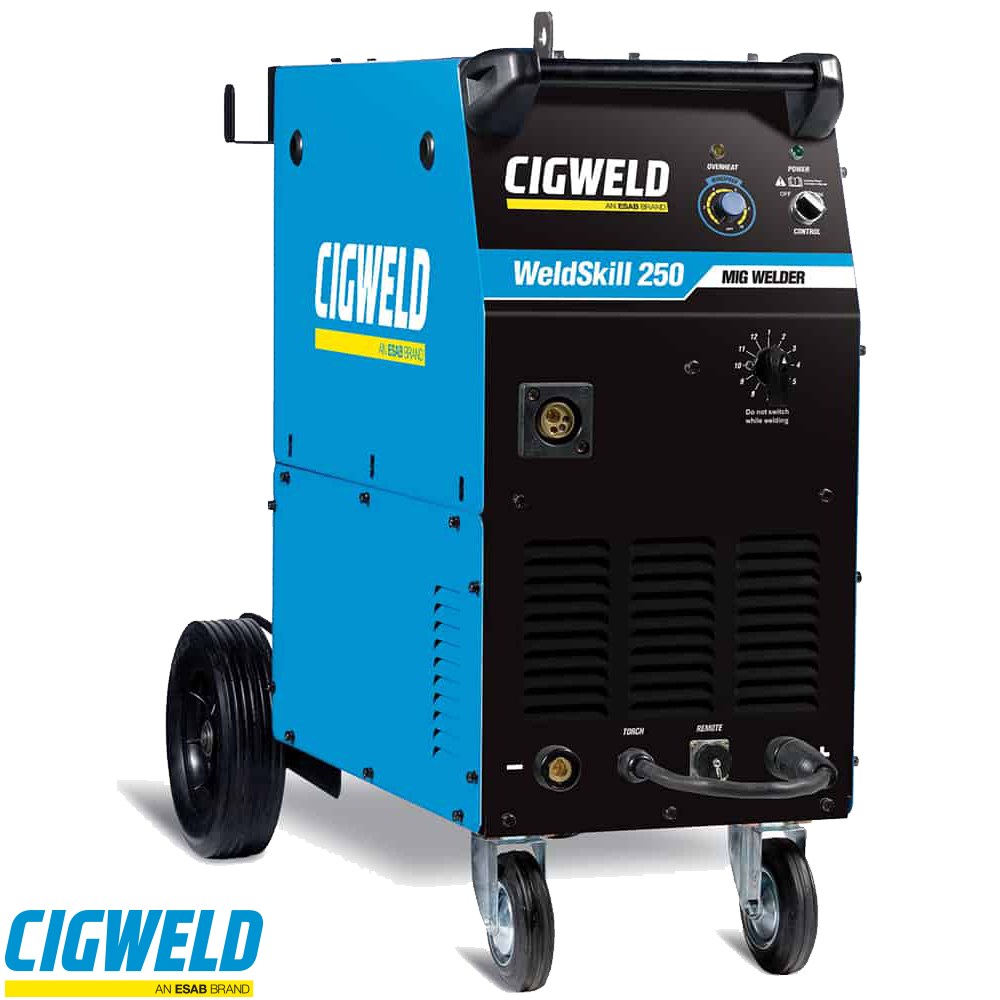

Cigweld WeldSkill 250

The WeldSkill 250 is a single phase compact power source designed specifically for the handyperson or tradesmen that requires high quality welding performance. This constant voltage power source is rated to 250 amps @ 25% duty cycle and provides excellent arc performance with solid and flux coated welding wires. This unit is suitable for use with either CO2 or mixed gases.

Features

• Powerful MIG welding plant designed for a broad range of applications
• Designed specifically for the handyman or tradesman
• Excellent arc characteristics on both CO2 and mixed shielding gases
• Heavy duty robust construction
• Optional 4 roll wire feeder available

Includes

• WeldSkill 250 MIG Power Source (compact)
• Tweco Fusion 250 MIG Torch, 3.6m
• Work lead, 3m
• Argon Regulator/Flowmeter
• Cylinder Chain
• 200mm Spool Adaptor
• Feed roll 0.9/1.2mm V Groove (fitted)
• Contact tips: 0.8mm, 0.9mm (fitted), 1.0mm, 1.2mm
• Shielding Gas Hose Assembly
• Operating Manual

Specifications

• Dimensions: 1050H x 470W x 1020D mm
• Generator Requirement: 13kVa
• Input Frequency: 50Hz
• Input Voltage: 240V/10%
• Output Range: 50 - 270A
• Rated Output @ Duty Cycle:
• 250A @ 20% - (with an upgraded 4mm2�supply lead)
• Weight (Power Source): 100kg
• Supply Plug Lead: 15 Amps
