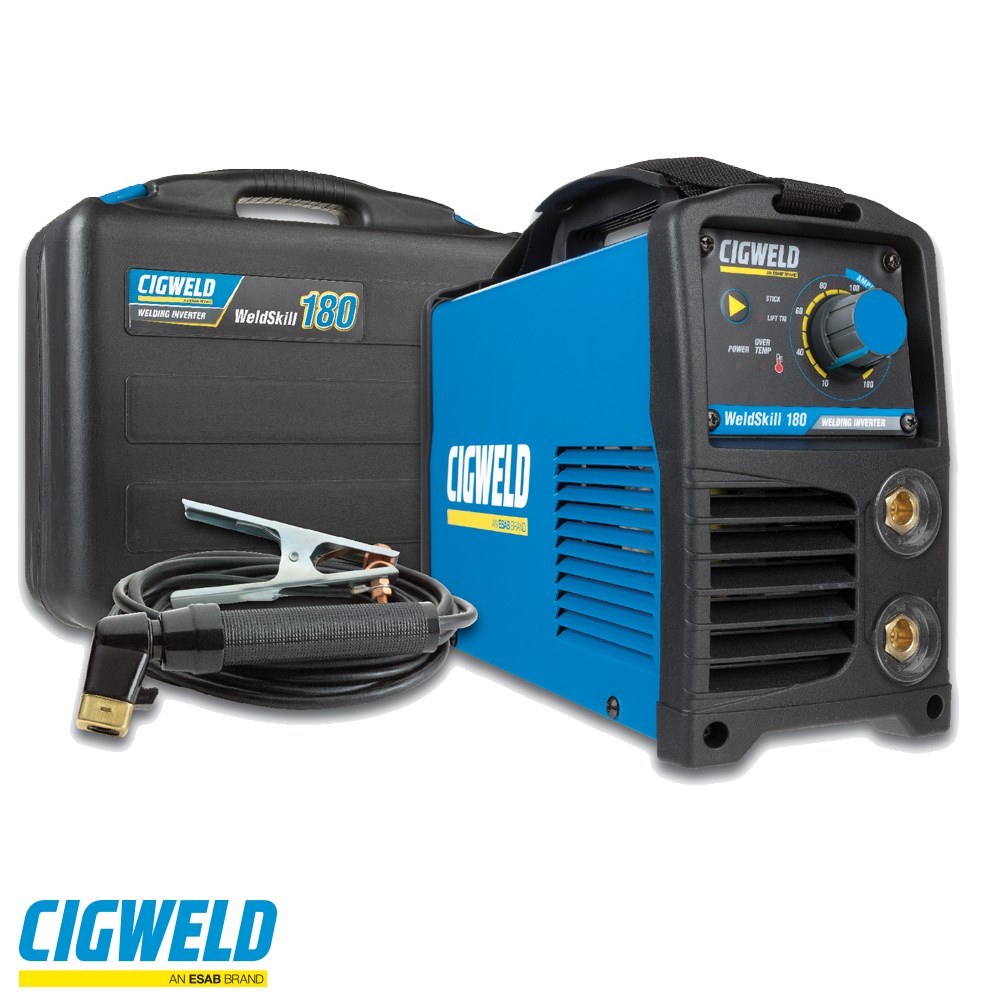

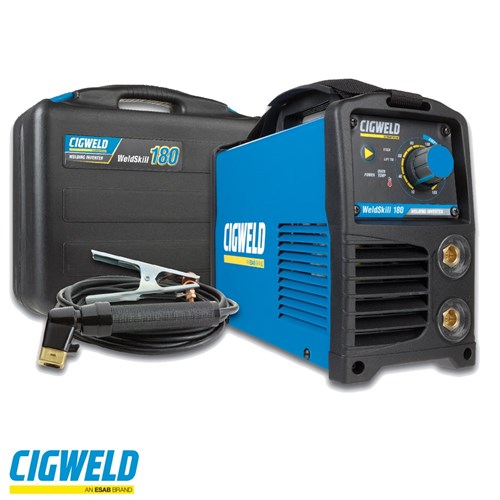

Cigweld WeldSkill 180
The WeldSkill 180 is a single-phase welding inverter with a user-friendly control panel, a practical push-button operation for mode selection, clearly visible LED indicators and sturdy large control knob.
Affordable, compact and light-weight, this unit is a great addition to the shed ensuring the ultimate portability for the Home Handyman, Tradesman, Farmer or Maintenance Worker.
In addition to its appealing design and functional features, the WeldSkill 180 provides the added reassurance of a high-quality welding inverter that complies to Australian Standards.
Simply plug it into any standard 15 Amp powerpoint and get welding right away!
Features
- Twist lock electrode holder
- 3 Year Warranty
- Rugged case with carrying handle and carry strap
- 4m long electrode holder and work leads
- Push-button weld mode selection switch with LED indicators

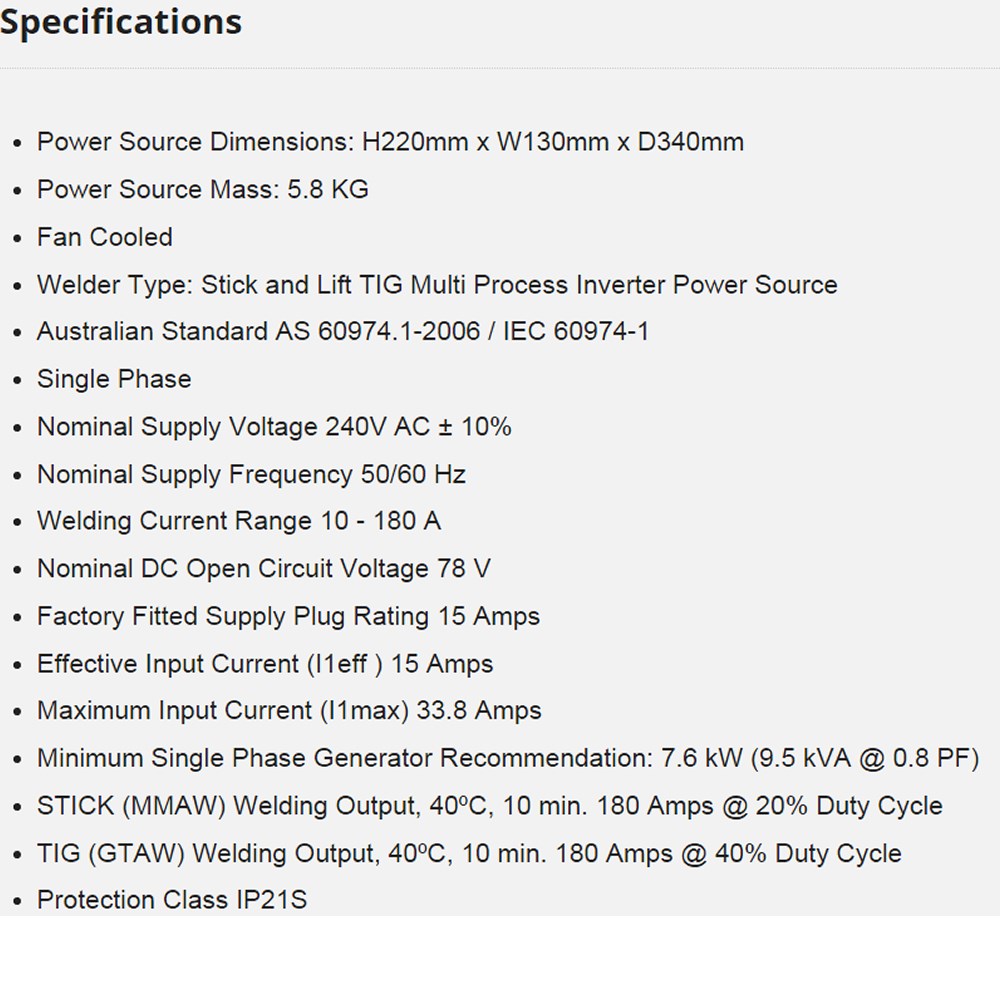

Specifications
- Australian Standards: AS 60974.1-2006 / IEC 60974-1
- Current Range: 10-180A
- Dimensions: 220H x 130W x 340D mm
- Duty Cycle: Stick (MMAW): 20% @ 180amps (40C, 10 mins) TIG (GTAW): 40% @ 180amps (40C, 10 mins)
- Effective Input Current: 15A
- Generator Requirement: 7.6kW (9.5kVa @ 0.8 PF)
- Maximum Input Current: 33.8A
- Nominal Supply Frequency: 240V AC +/10%
- Open Circuit Voltage: 78V
- Processes: Stick and Lift TIG
- Protection Class: IP23S
- Supply Plug Lead: 15A
- Supply Voltage: 50/60Hz
- Weight: 5.8kg
- Number of Phases: Single Phase
