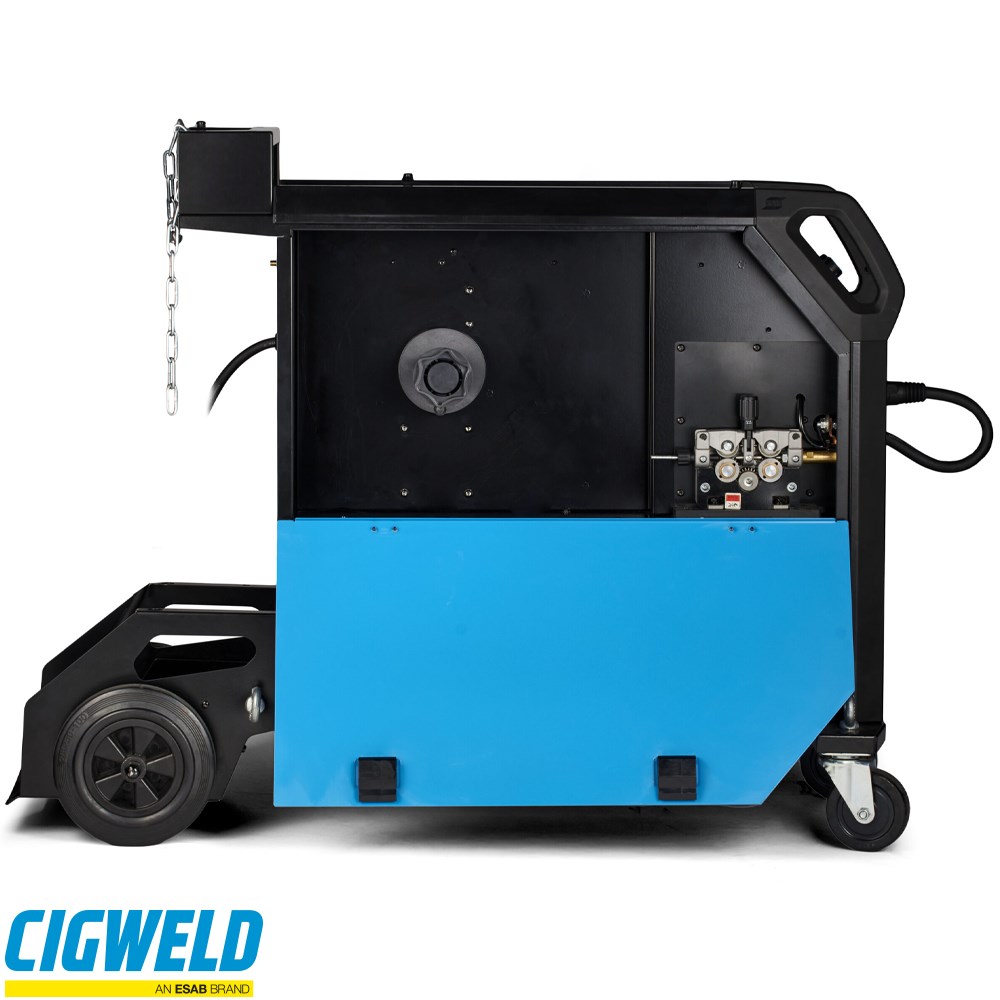

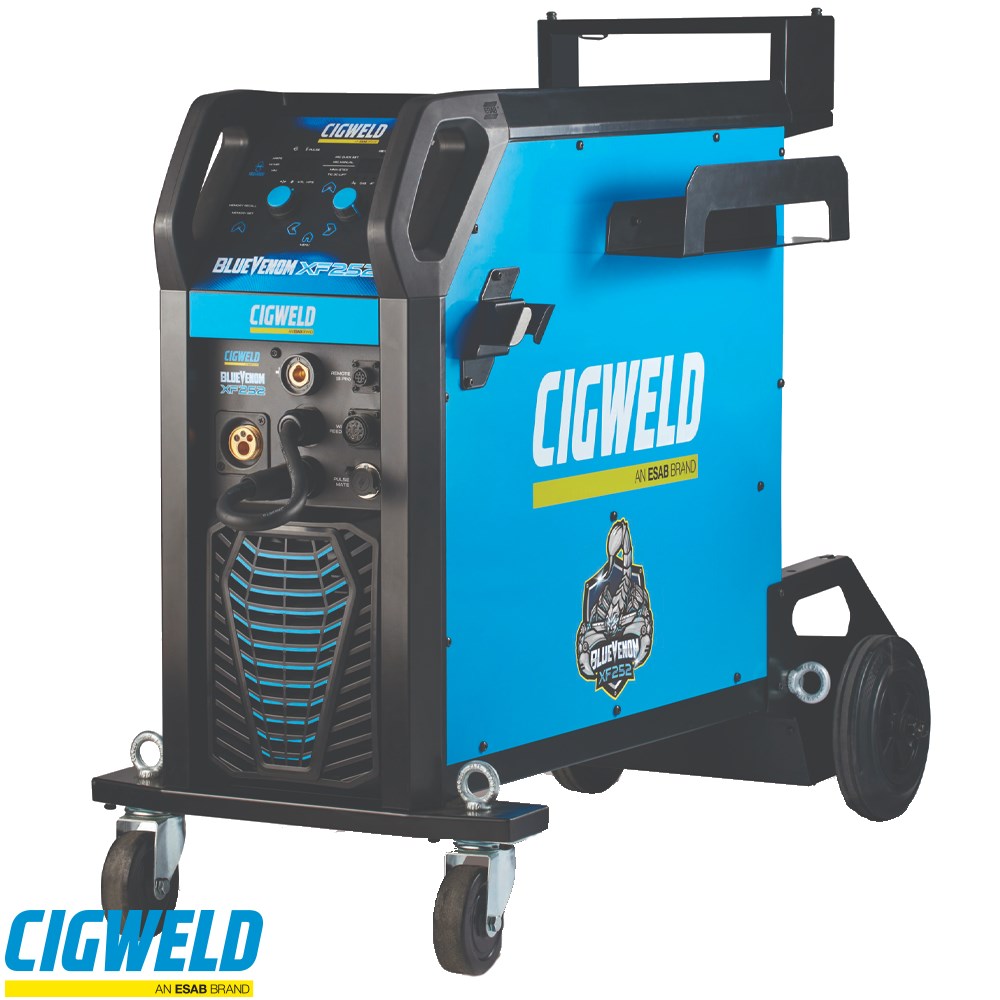

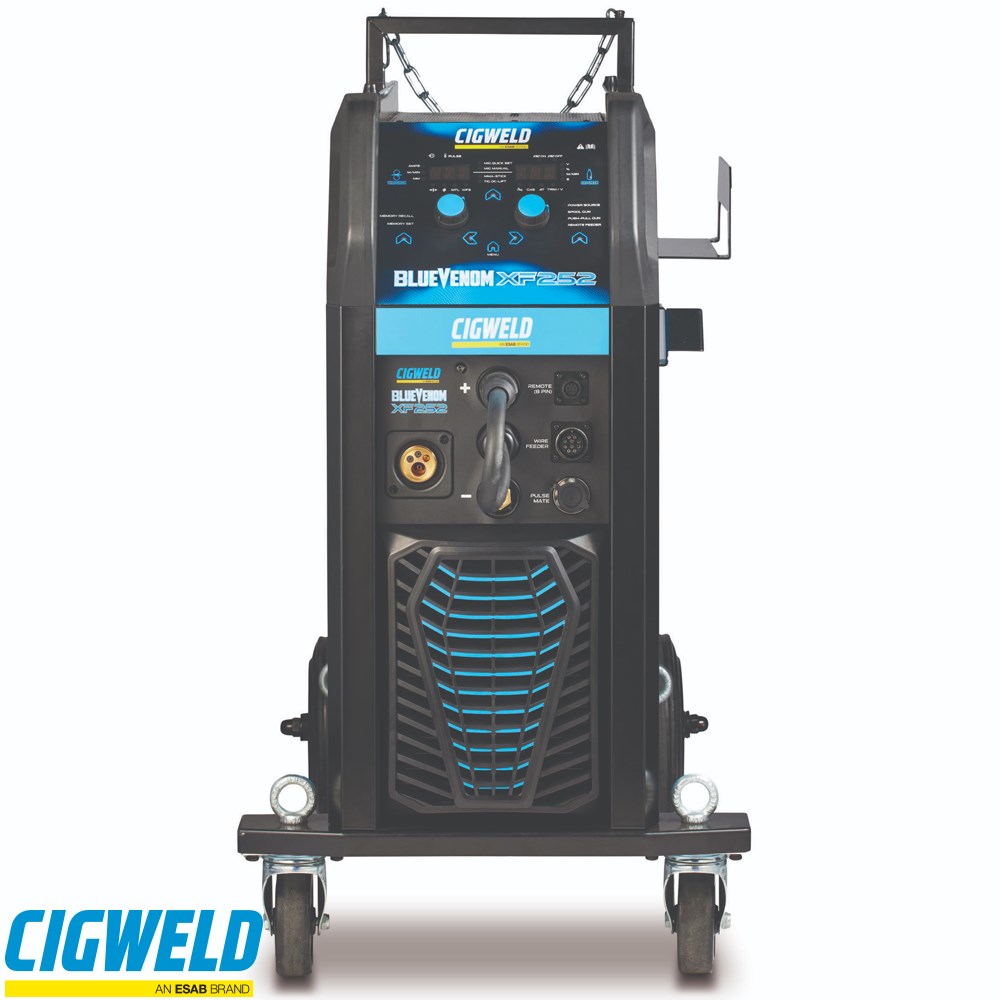

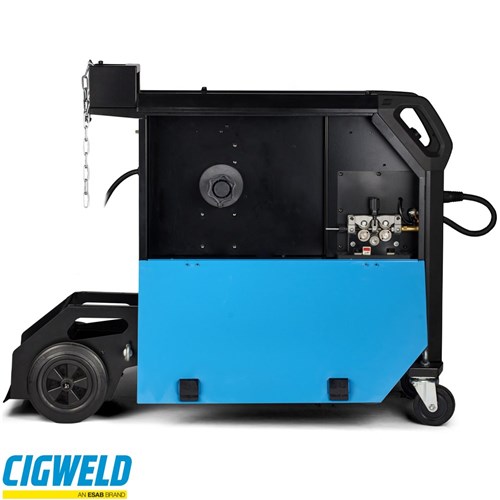

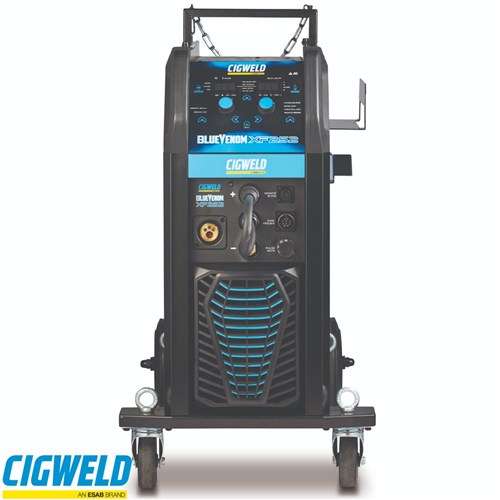

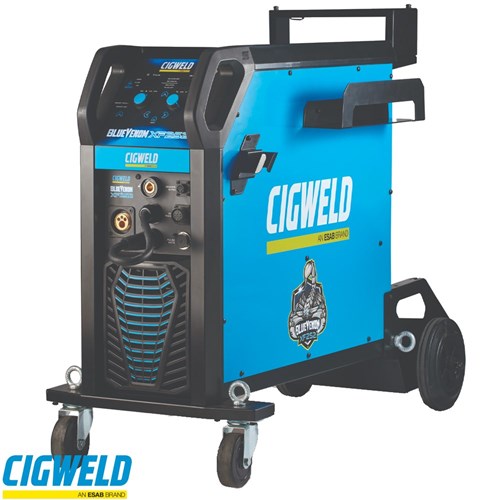

Cigweld BlueVenom XF252 Multi Process Welding Inverter
The BlueVenom XF252 is a versatile 3-in-1 multiprocess welding inverter designed for superior performance and manoeuvrability. With a compact, narrow profile, it easily fits into tight spaces while also offering the flexibility of a modular arc station. This powerhouse excels in MIG, STICK, and TIG welding modes, featuring MIG QuickSet and Manual options, gas and gasless operation, and even single and double pulse MIG capabilities with the optional PulseMate. Its robust design includes a 4x roll wire drive system, compatibility with up to ‘G’ size gas cylinders, and multiple safety and convenience features such as a voltage reduction device, adjustable wire burn back, and anti de-spooling technology. Engineered for maximum usability, the XF252 is ideal for both professionals and enthusiasts seeking high-quality welds with ease. Whether you’re after precise TIG-like results or reliable MIG functionality, the XF252 has you covered.
Features
- 3-in-1 multiprocess welding: MIG, STICK, and TIG
- Narrow design for easy access in tight spaces
- MIG QuickSet & Manual modes, Gas & Gasless operation
- Single & Double Pulse MIG with optional PulseMate
- 4x roll wire drive system, 300mm spool capability
- Voltage Reduction Device (VRD) for safe welding
- Compatible with PulseMate, spool gun, and push-pull gun
- TIG foot control and dial remote torch compatibility
- 4-point lifting lugs for easier manoeuvrability
- Adjustable wire burnback and crater fill in MIG mode
Includes
- BlueVenom XF252 Power Source
- MIG Gun BZ36 “Style”, 4m, Euro
- Work Clamp 3OOA with 4m Lead
- Twistlock Electrode Holder 4OOA with 4m Lead
- Feed Rolls: O.9/1.2mm V Groove (fitted), 1.O/1.2mm U Groove, 0.9/1.2mm Gasless Knurled
- Gas Regulator/Flowmeter
- Quick Connect Gas Hose 3m
- Operating Manual
Specifications
- Power Source Dimensions: (L) 1075mm x (W) 460mm x (H) 865mm
- Power Source Weight: 55kg
- Cooling: Fan Cooled
- Standards: AS 60974.1:2020 / IEC 60974-1:2019 EN 60974-10:2021
- Number of Phases: Single Phase
- Nominal Supply Voltage: 230/240 VAC ± 15%
- Nominal Supply Frequency: 50/60Hz
- Nominal DC Open Circuit Voltage MIG Weld Mode: 53V
- Open Circuit Voltage (VRD On) Stick Weld Mode: <35V
- Open Circuit Voltage (VRD Off) Stick Weld Mode: 53V
- Open Circuit Voltage Lift TIG Weld Mode: 53V
