Cigweld BlueVenom SV135 Nano ARC Welding Inverter
Just when you thought a welder couldn't get any smaller, it has!
The all-new BlueVenom SV135 'Nano' is an incredibly small multiprocess welder designed for STICK and TIG (DC-LIFT-TIG) welding, featuring some very special attributes and benefits. In fact, it’s a market leader!
Weighing in at only 2.7 kg, it is one of the lightest welders available, offering true portability for effortless maneuverability. It's perfect for site work, climbing ladders or stairs, working in tight, restrictive spaces, and navigating hard-to-access job sites. The machine is designed to be safe, with a built-in Voltage Reduction Device (VRD) to ensure maximum safety.
The BlueVenom SV135 Nano also punches well above its weight, offering big features you won't find in other machines of this size or price range. These include STICK-Pulse and LIFT-TIG-Pulse, process improvements that enable users to weld with professional precision.
Features
Stick-Pulse
- Excellent for filling gaps and one-sided penetration in butt welds
- Simplifies vertical-up welding with better control and reduced undercut
- Enhances overhead welding with improved safety and less spatter
- Improves vertical down weld control, reducing slag inclusions
Lift-Tig Pulse
- Easy to use with only three settings: Peak-Current, Base-Current %, and Pulses per second
- Ideal for slow pulse settings in root runs for carbon steel pipes and butt-welds
- Great for fast pulse welding of thin gauge stainless and mild steels, controlling heat input to reduce distortion in thin metals

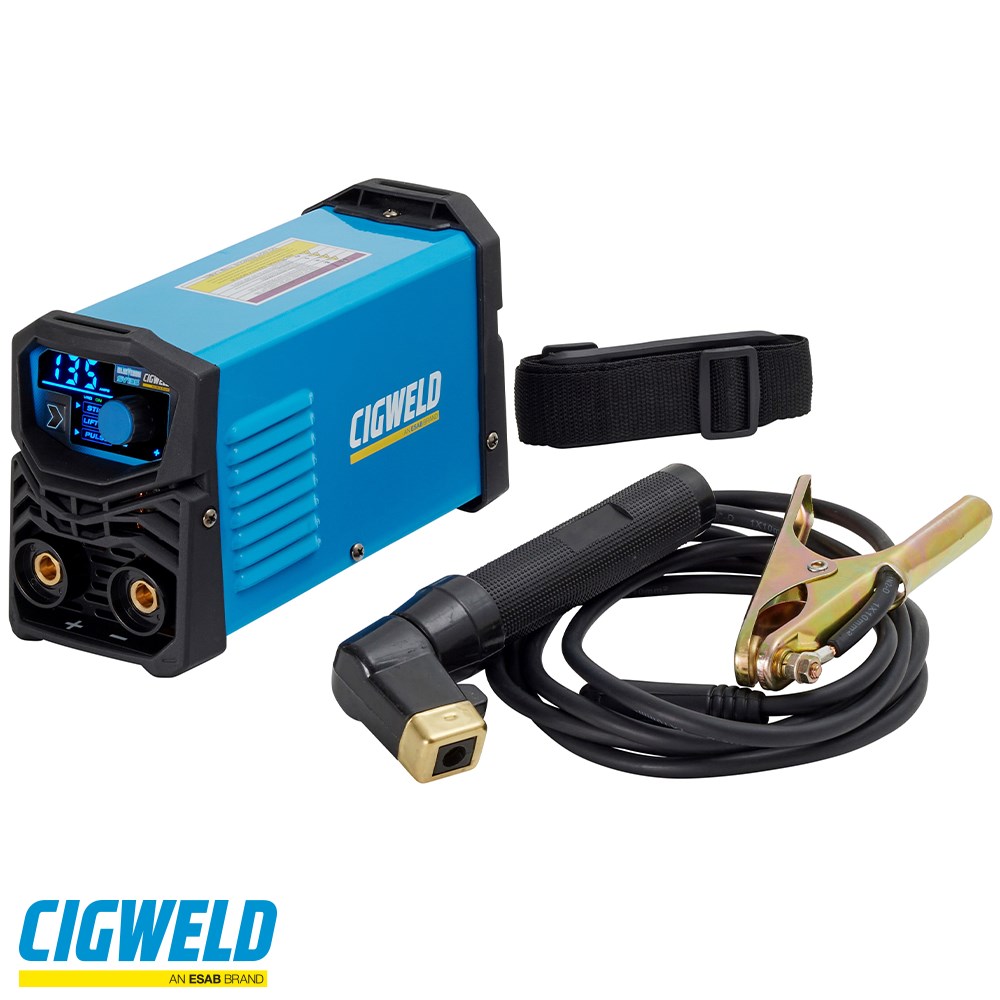

Includes
- BlueVENOM SV135 Power Source
- 200A Work Clamp with 1.5m Lead
- Twistlock Electrode Holder with 1.5m lead
- Plastic Carry Case
- Carry Strap
- Operating Manual
Specifications
- Power Supply: Single-Phase 230V/240V +/- 10%
- Australian Standard: AS 60974.1:2020
- Nominal Supply Frequency: 50/60Hz
- SupplyLead and Plug supplied: 10 Amp
- Minimum Single Phase Generator Recommendation: 8kVA (at 0.8 PowerFactor) at Max Amps
- Amperage Range: 10 – 135A (STICK & TIG)
- Voltage Range (MIG): 10.5 - 23.5V
- Measurements: 255mm L x 105mm W x 142mm H
- Weight: 2.7kg
