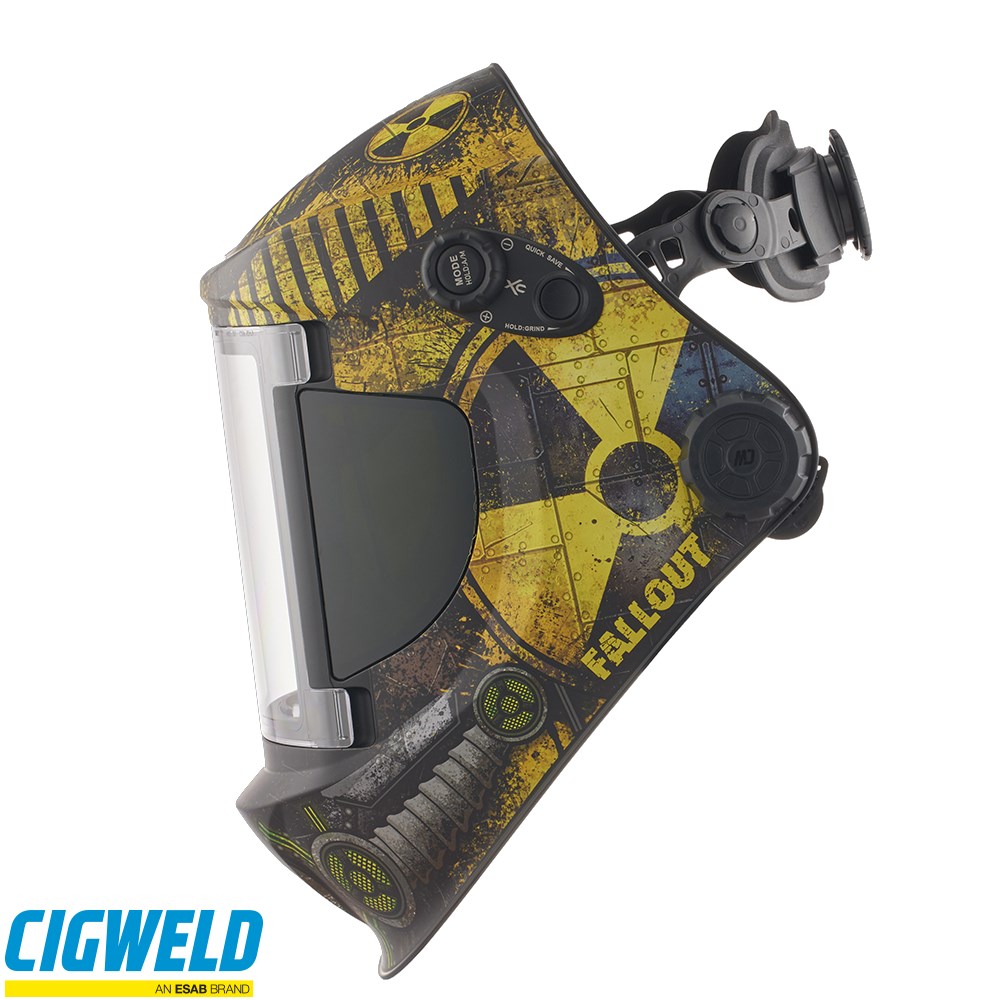

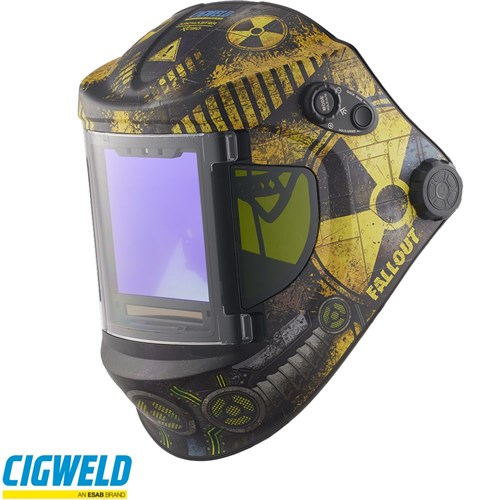

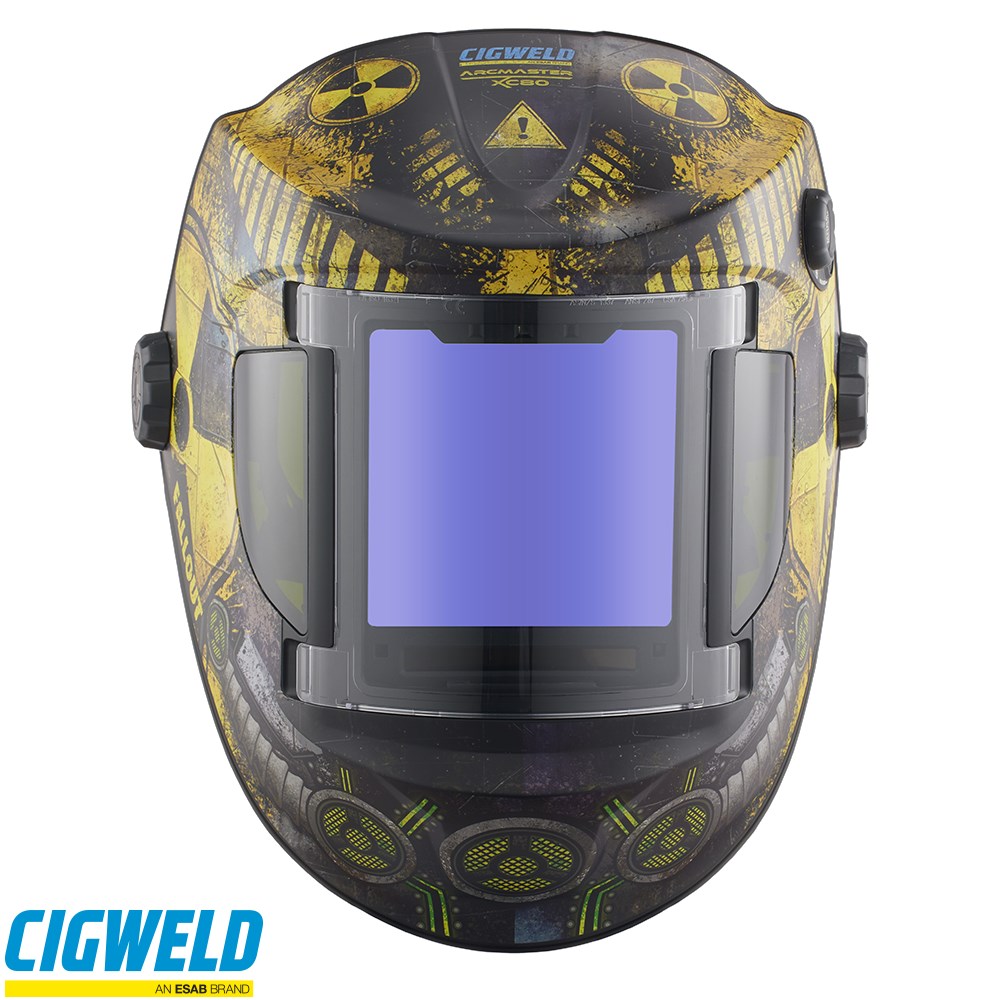

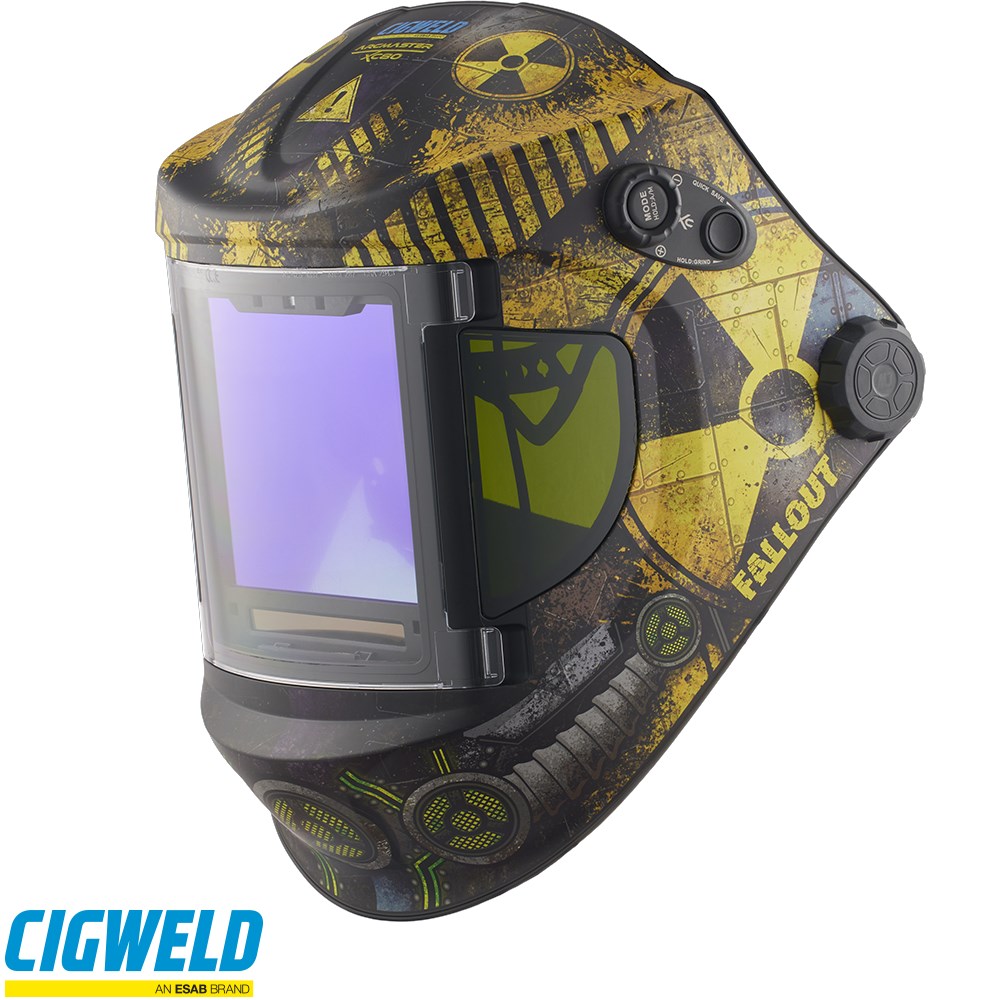

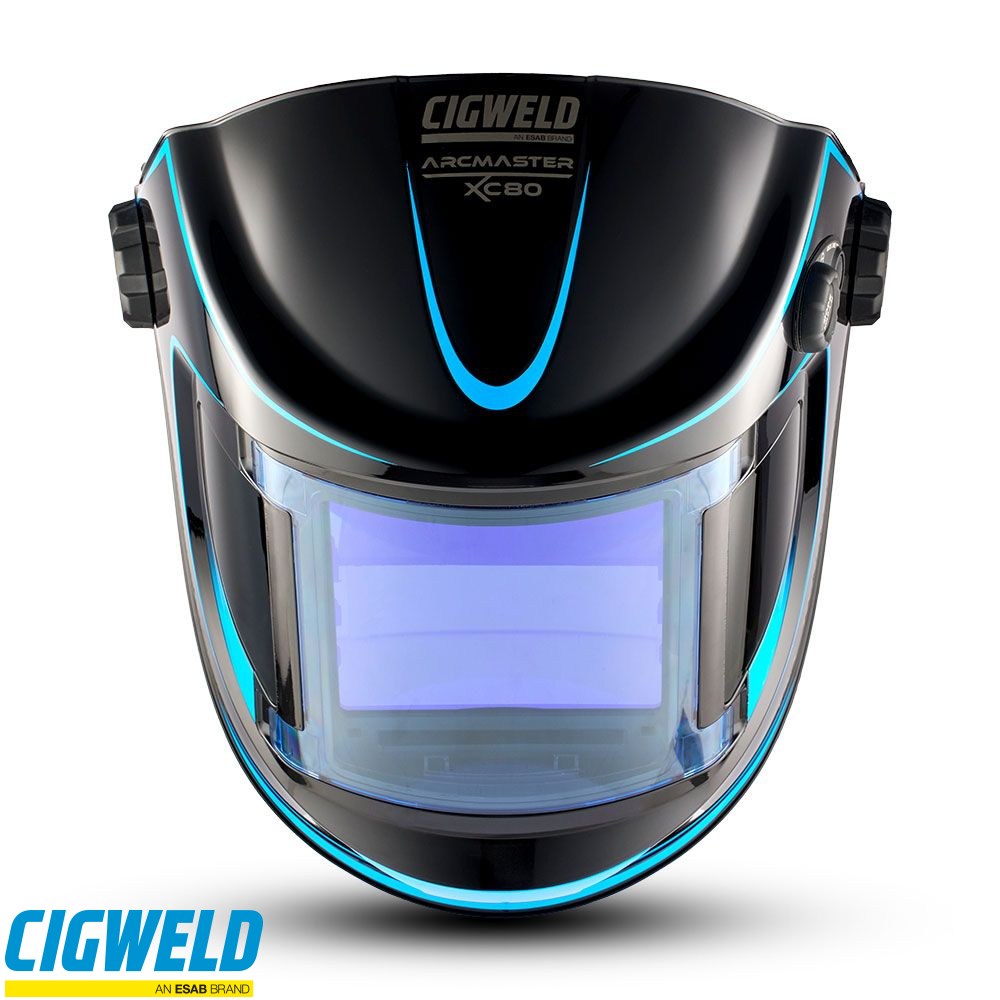

CIGWELD Arcmaster XC80 BLAX Auto-Darkening Welding Helmet
The CIGWELD Arcmaster XC80 BLAX sets a new benchmark in welding visibility, comfort, and control. Featuring CIGWELD’s largest viewing area combined with passive side windows, it delivers an exceptional panoramic view of the weld zone. A lightweight, high-impact shell, secure 5-point head harness, and tactile external control module allow welders to adjust settings without removing the helmet—maximising efficiency, safety, and comfort on every job.
Features
- Extra-large panoramic viewing area with passive side windows
- Quad-1 high-definition optical clarity to ISO 16321-2:V1
- 5 arc sensors for reliable detection, including TIG welding down to 2 amps
- Variable shade range 4–8 / 9–14 with half-shade increments
- External tactile control module for easy on-the-fly adjustments
- High-impact rated shell suitable for grinding applications
- Suitable for TIG, MIG, Stick, Plasma Cutting, and Oxy-Welding
- Solar assist power with replaceable batteries for long service life
Includes
- Front Cover Lens Clear – WHCL145F x 2 (fitted on the Fallout)
- Front Cover Lens Blue – WHCL145FB x 1 (fitted on the BLAX)
- Rear Cover Lens – WHCL108R x 1 (spare)
- Sweatband – WHSB04 (fitted)
- Arcmaster XC Series Helmet Bag
- Operating Manual
Specifications
- Viewing area: 104 mm x 104 mm
- Arc sensors: 5
- Optical rating: ISO 16321-2:V1 (formerly EN379 1/1/1/1)
- Australian approval: AS/NZS 1337.1 & 1338.1
- Shade range: 4–8 / 9–14
- Grinding shade: 3
- OptiShade technology: User adjustable ±2 shades
- Gradual mode: Yes (dark to clear)
- Switching speed: 0.1 ms
- Memory modes: 9

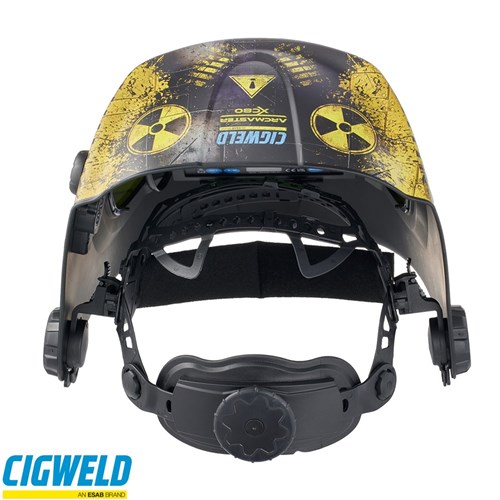

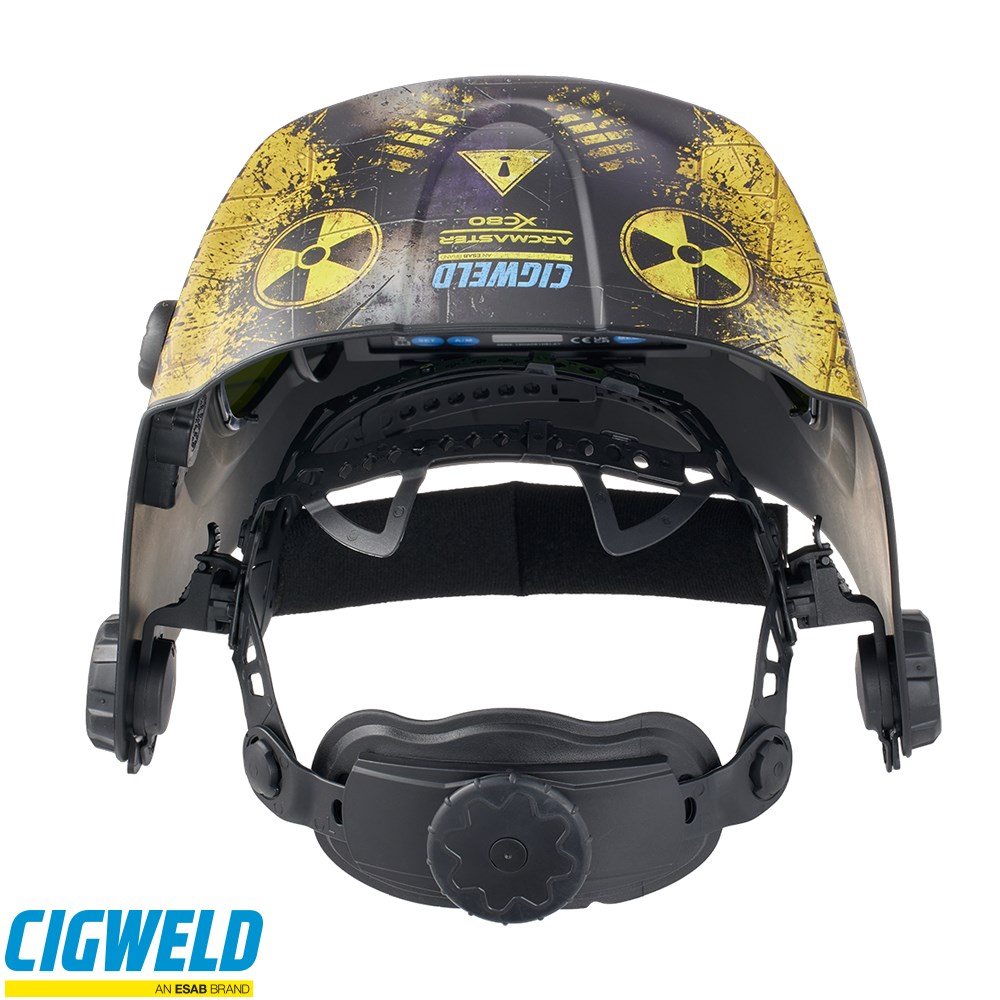

- Harness: 5-point positive lock system
- Controls: Digital
- Impact rating: High impact
- Battery: Solar assist with 2 x CR2045 replaceable batteries
- Weight: 0.690 kg
