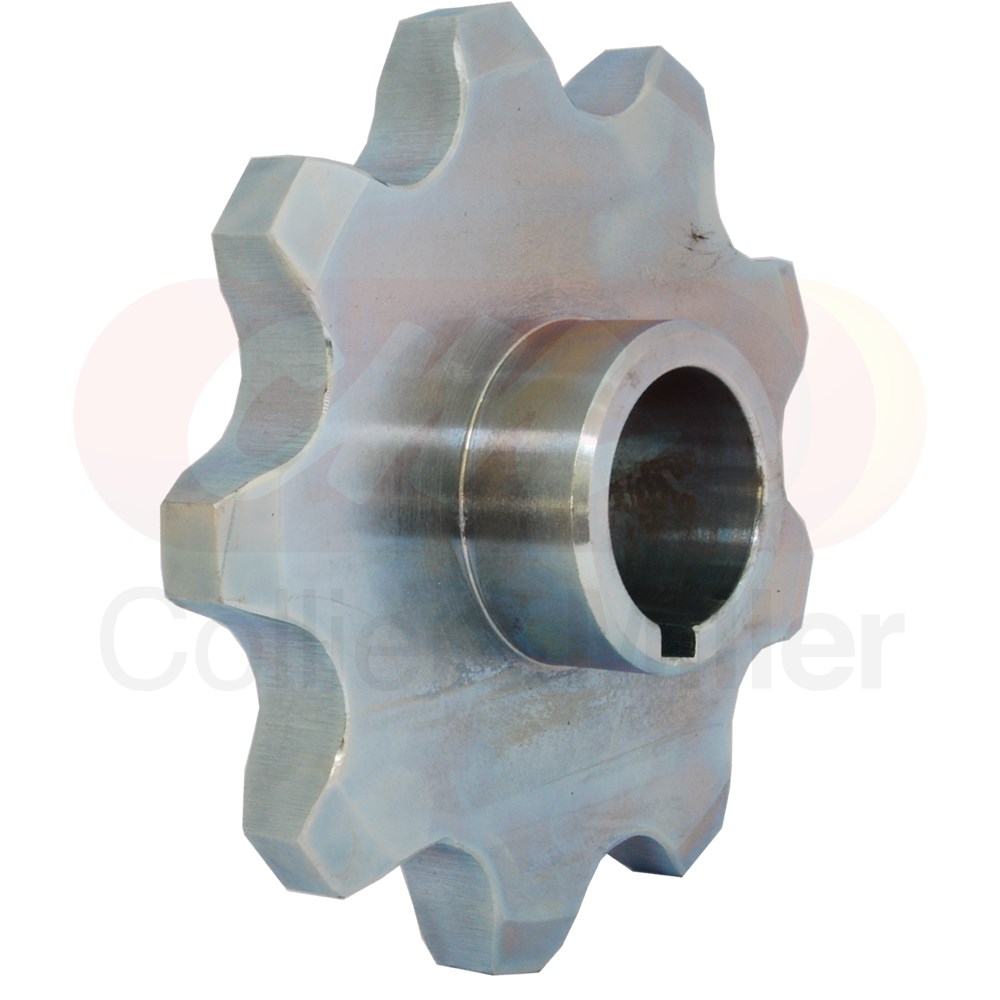

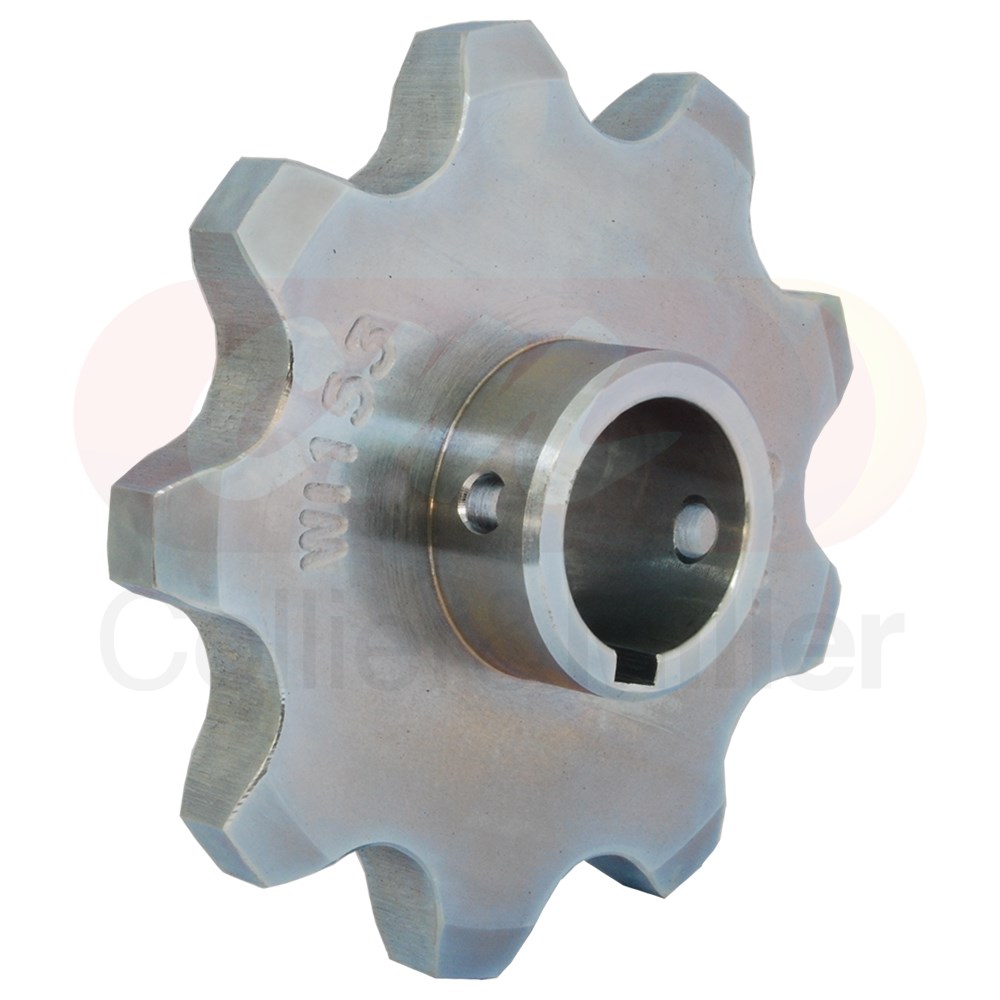

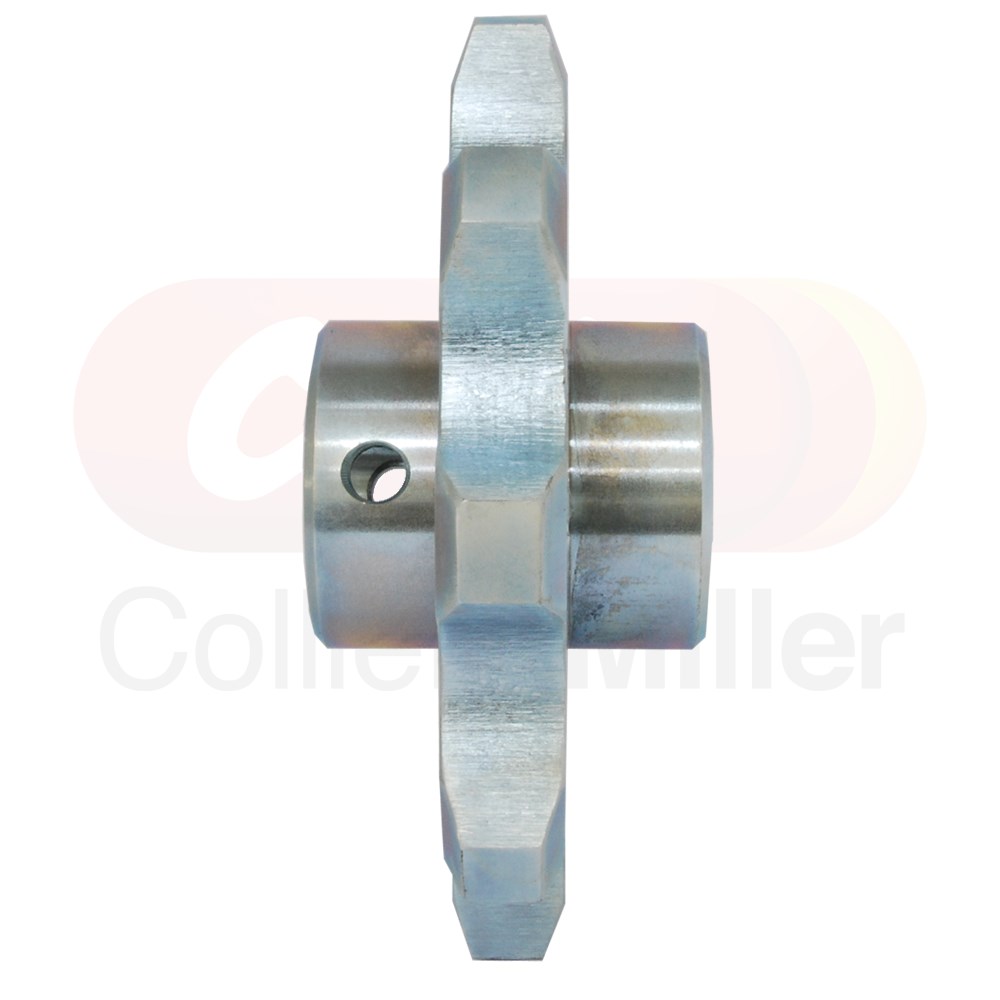

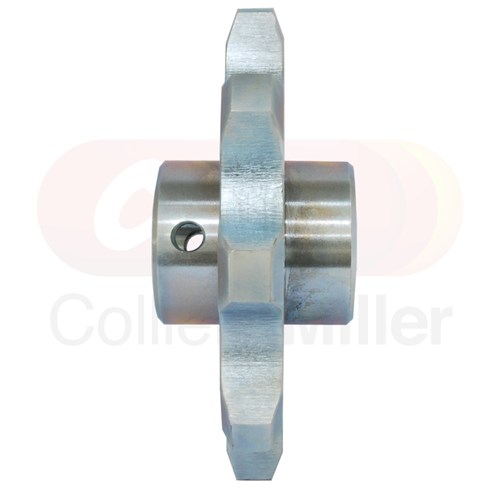

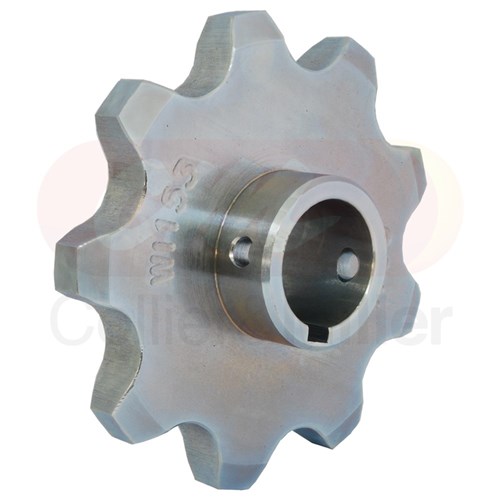

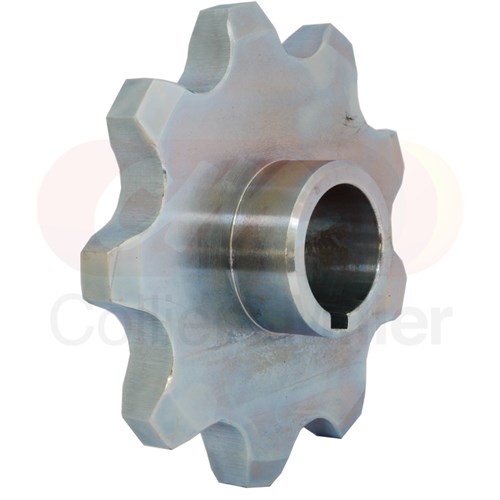

Case-IH® Compatible Elevator Drive Sprocket
Keep your storage and unloading system in top condition with this premium Australian-made elevator drive sprocket. Specifically engineered for Case-IH® Mid-Range combine harvesters, this
extended wear component ensures smooth operation for your clean grain systems, providing a
longer life for your elevator assemblies.

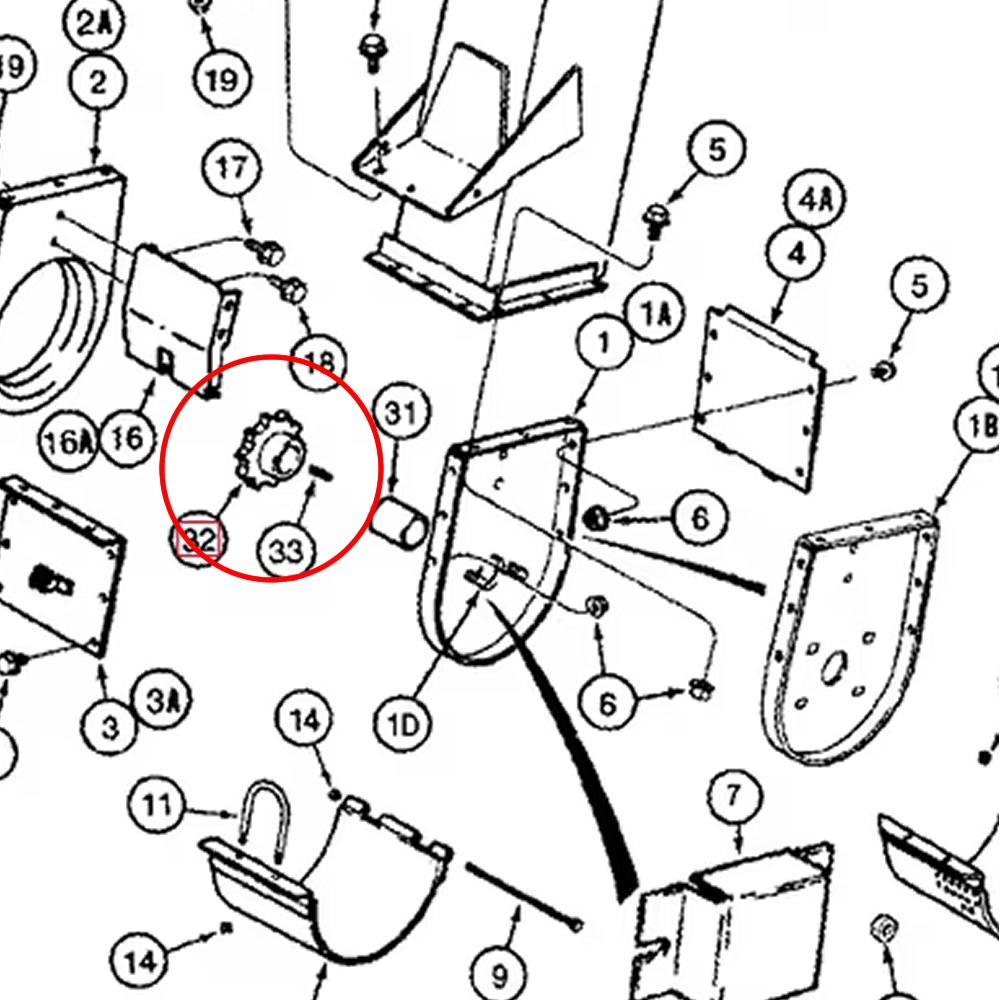

Manufactured by C&M in our Griffith factory, this sprocket is a precision-machined direct-fit replacement for multiple elevator locations. By replacing worn or "hooked" sprockets with this grade 1045 billet assembly, you maintain precise chain timing and protect your
elevator chain from unnecessary wear.
Case-IH® OEM Cross-ReferenceReplaces OEM Part Numbers: 143960A1
Elevator Drive Sprocket for Case IH 1440, 1680, 2188, 2388, 2588 Models
| Series |
Models |
Serial/Year |
| Case-IH® 2100 Series |
2188 |
All Units |
| Case-IH® 2300 Series |
2377, 2388 |
All Units |
| Case-IH® 2500 Series |
2577, 2588 |
All Units |
Technical Specifications & Features
- Quality Assurance: Proudly C&M Australian made to keep your equipment in top condition.
- Material: Machined from a single solid piece of high-grade 1045 billet for extended wear.
- Dimensions: ID-1.00" | Keyway= 1/4" | Widith= 1-7/8"
- Configuration: 7-Tooth sprocket with a 1-1/4" precision bore.
- Precision Alignment: Precision timed during manufacturing for perfect chain tracking.
- Finish: Electroplated coating for longer life and corrosion resistance.
- Available for fast Australia-wide dispatch from Collier & Miller.
Expert Maintenance Review
To keep your storage and unloading system in top condition, we recommend inspecting the shaft bkeys and shaft wear whenever these sprockets are replaced.
Because these sprockets drive critical clean grain and tailings elevators, using a precision-machined 1045 billet sprocket ensures a much longer service life compared to standard cast alternatives. Standard preventative maintenance suggests that replacing drive sprockets when installing new chains will significantly improve extended wear and prevent premature chain "climbing."
Recommended Maintenance Upgrade
To ensure maximum grain handling efficiency, we highly recommend inspecting your Elevator Chains and Head Bearings for wear whenever new drive sprockets are installed.
