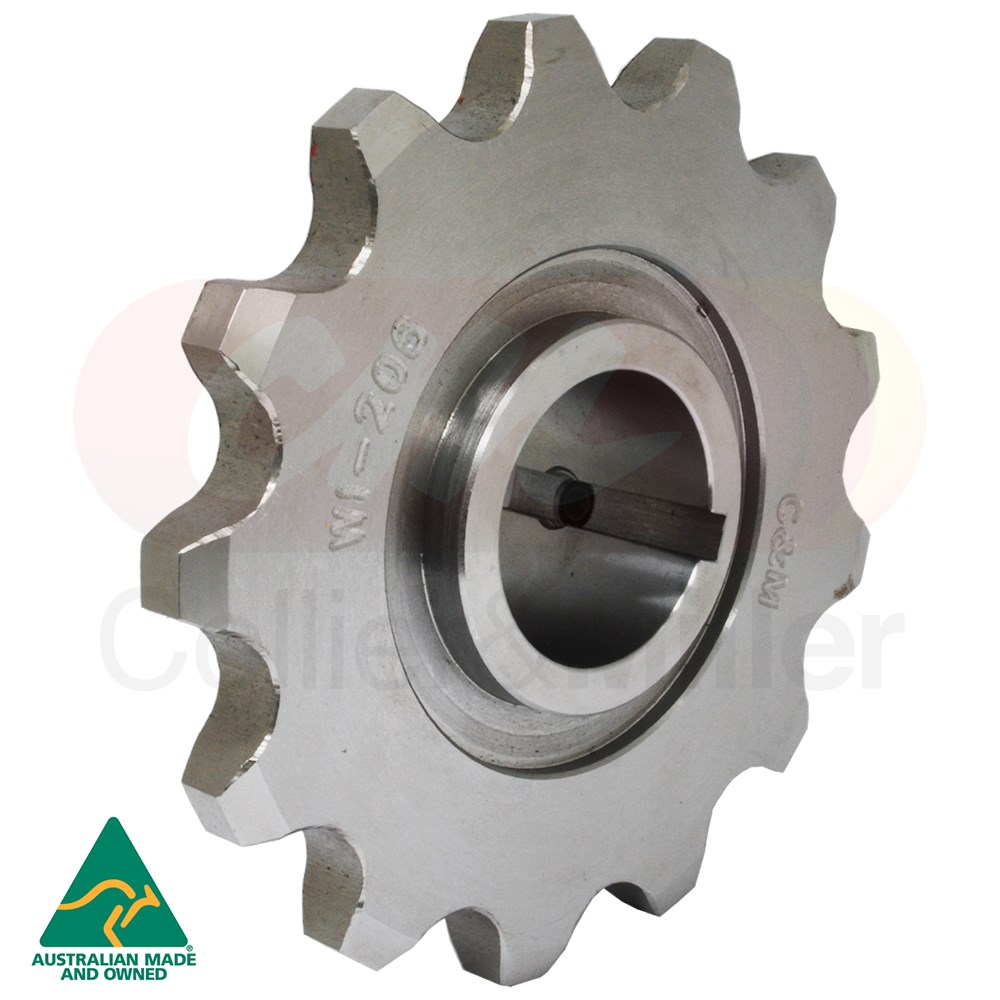

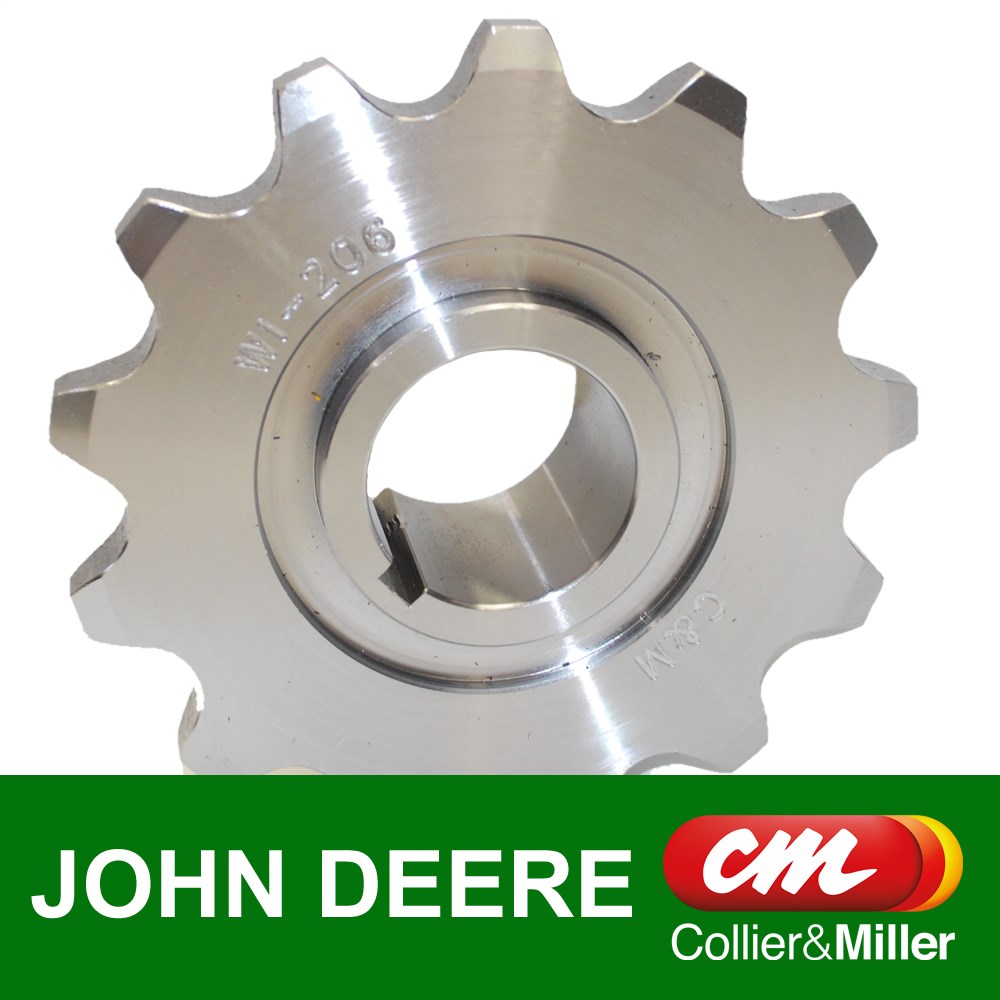

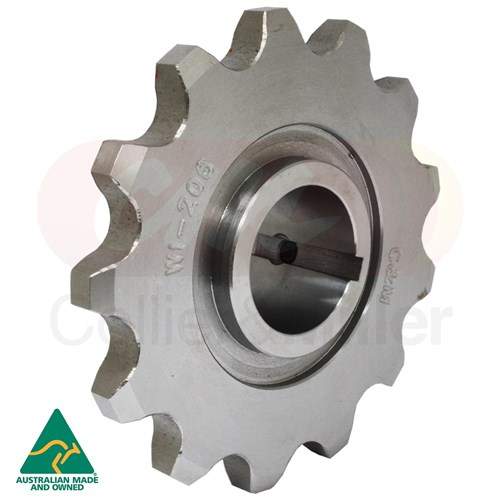

C&M aftermarket replacement feeder house chain sprocket to suit the front feeder house on 60 & 70 series John Deere combine harvesters. This premuim grade sprocket is machined and hobbed in our own Australian factory using the latest in CNC equipment, creating an accurate and long wearing product. This sprocket is manufactured from a single piece of grade 1045 round steel and each sprocket is timed for exact alignment and accuracy.
We have received positive feedback from our customers who advise us these sprockets offer smooth operation, long life and assist with improving chain life. This sprocket is positioned on the outside end of the feeder house shaft, we recommend you purchase the sprpclet as a set to ensure correct timing of keyway and toth.
Part Numbers

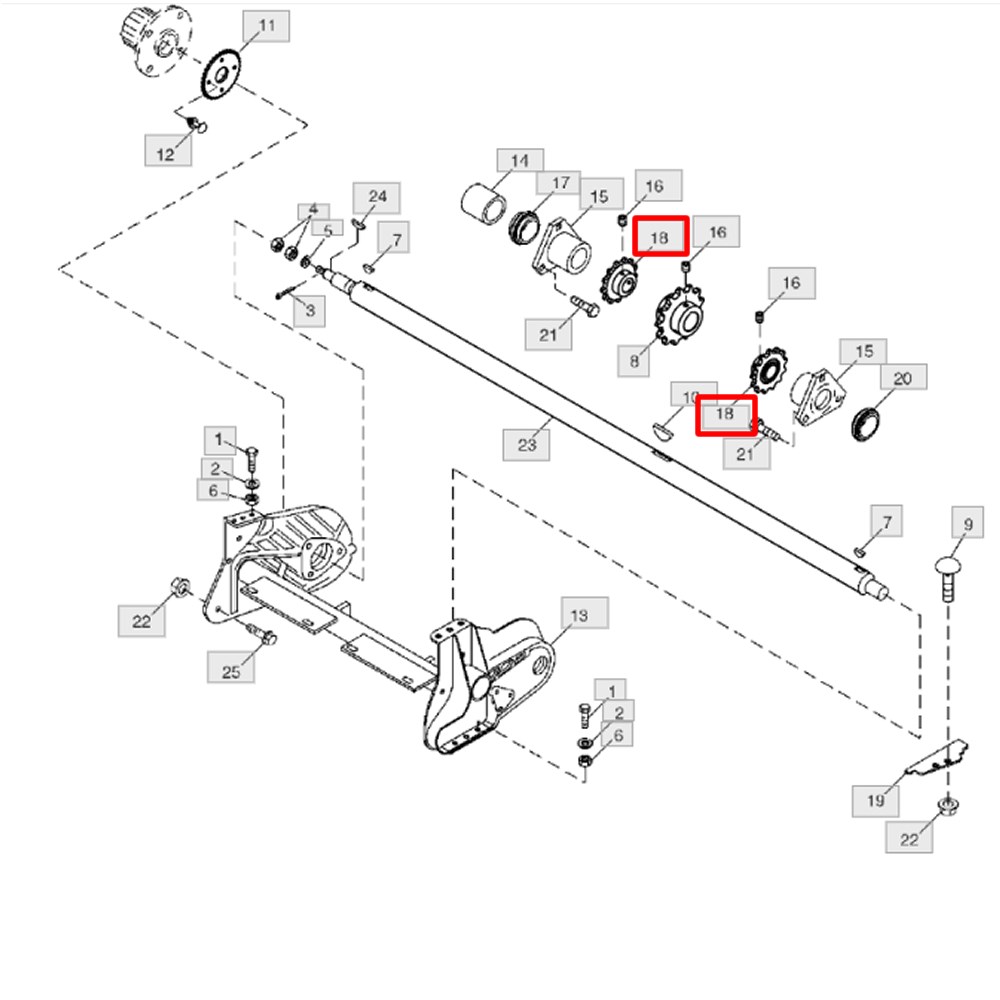

Location
- Outside End Feeder House Shaft Sprocket
- Quantity required - 2
Models
Series |
Models |
Serial/Year |
Qty Req |
John Deere 50 Series |
9650STS, 9750STS |
All |
2 |
John Deere 60 Series |
9560STS, 9660STS, 9760STS, 9860STS |
All |
2 |
John Deere 70 Series |
9470STS, 9570STS |
All |
2 |
|
9670STS 9770STS, 9870STS |
BSN 730100 |
2 |
John Deere 80 Series |
9880STS |
BSN 715701 |
2 |
Features
- Machined from single piece 1045 material

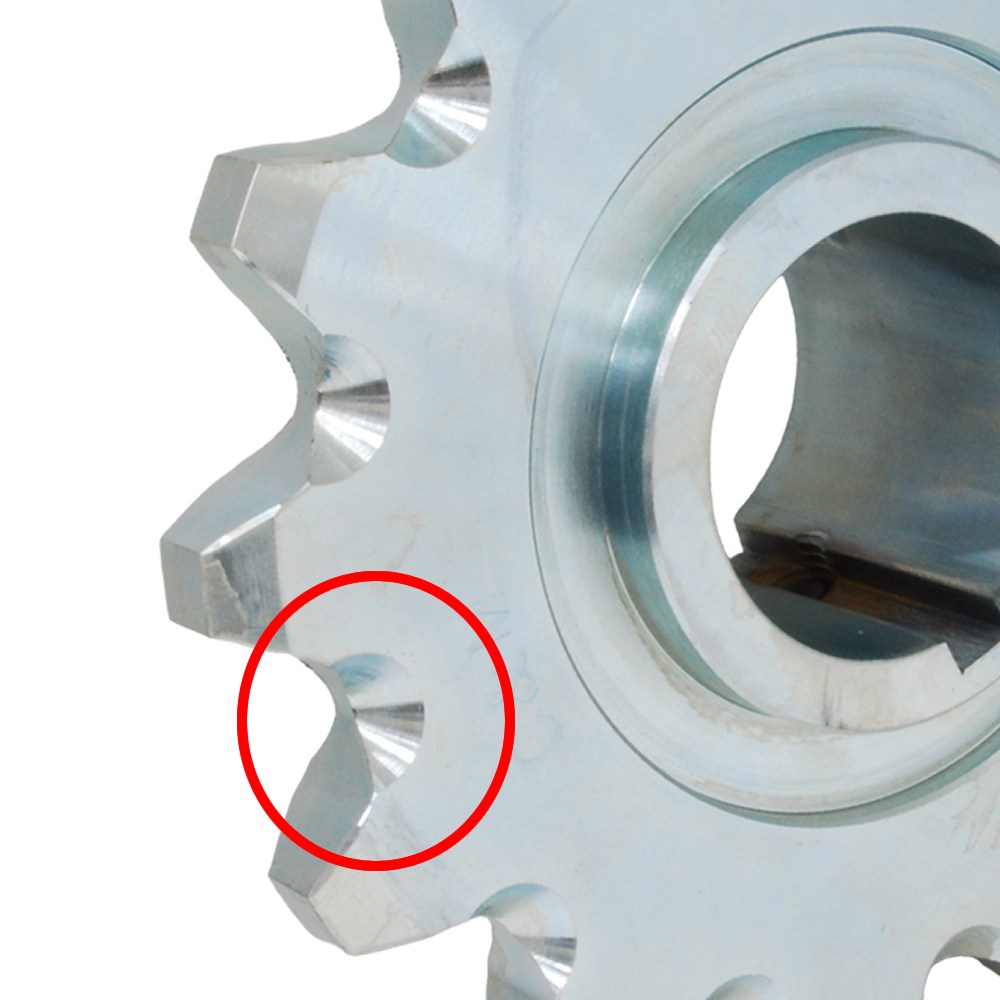

- Precision timed for perfect alignment
- Made in Australia
- 2-1/4" Bore x 13 Tooth
