Case-IH® Compatible Elevator Drive Sprocket

Keep your storage and unloading system in top condition with this premium Australian-made elevator drive sprocket. Specifically engineered for Case-IH® Mid-Range and Legacy series combine harvesters, this extended wear component ensures smooth operation for both your clean grain and tailings systems, providing a longer life for your elevator assemblies.

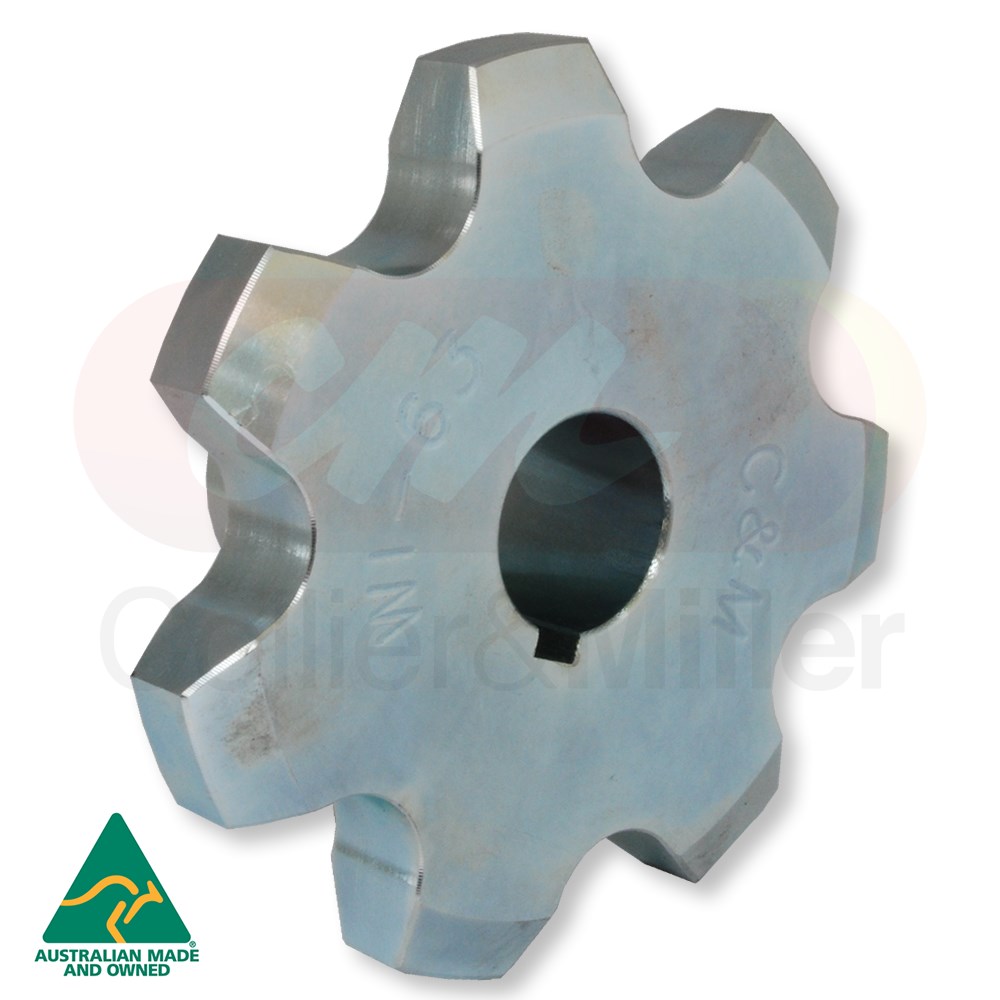

Manufactured by C&M in our Griffith factory, this sprocket is a precision-machined direct-fit replacement for multiple elevator locations. By replacing worn or "hooked" sprockets with this grade 1045 billet assembly, you maintain precise chain timing and protect your elevator chain from unnecessary wear.

Multi-Location Fitment

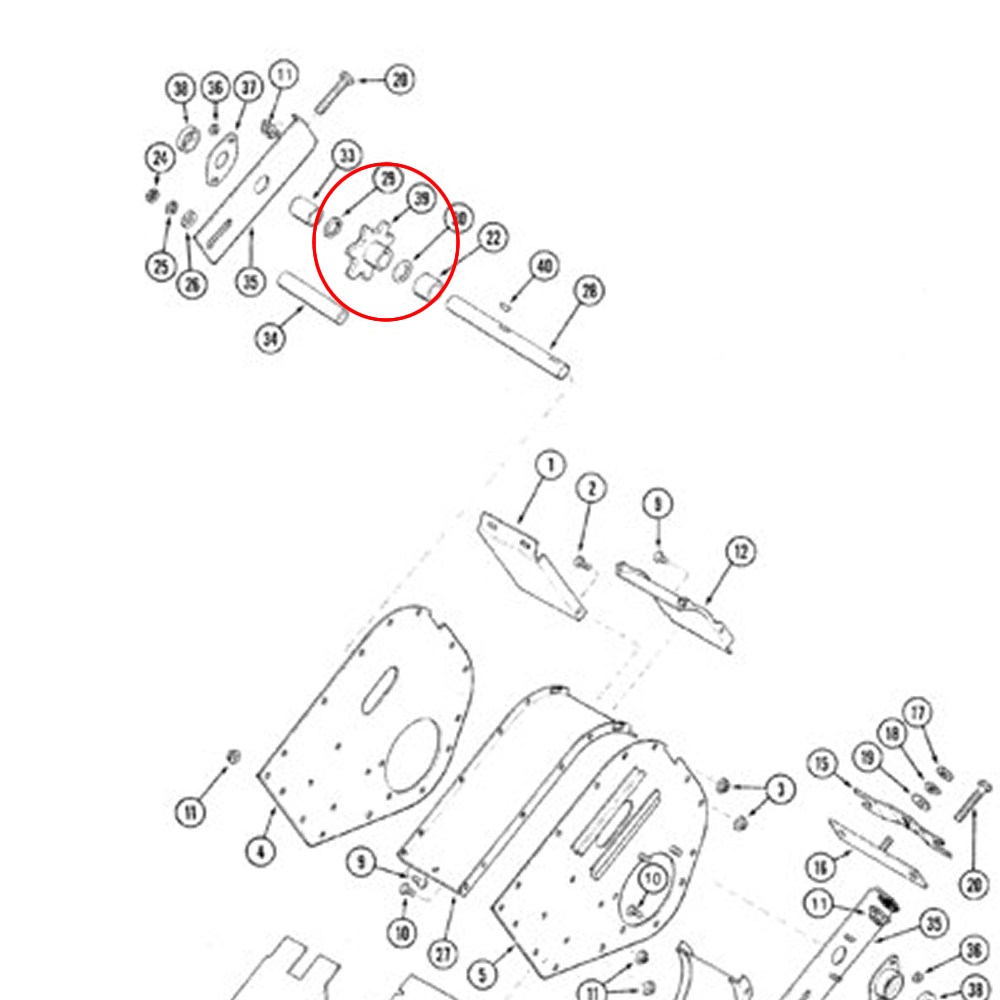

This versatile sprocket is designed to fit the following positions:

• Main grain upper elevator head sprocket
• Tailings grain chain upper elevator head sprocket
• Tailings grain chain lower elevator sprocket

Case-IH® OEM Cross-Reference

Replaces OEM Part Numbers: 168683C1, 87691619

Elevator Drive Sprocket for Case IH 1440, 1680, 2188, 2388, 2588 Models

Series	Models	Serial/Year
Case 14 / 16 Series	1420, 1440, 1460, 1470, 1480, 1620, 1640, 1644, 1660, 1680, 1688	All Units
Case 21 / 23 Series	2144, 2166, 2188, 2344, 2365, 2366, 2377, 2388	All Units
Case 25 Series	2577, 2588	All Units
Case Vintage	815, 914, 915	Legacy Models

Technical Specifications & Features

• Quality Assurance: Proudly C&M Australian made to keep your equipment in top condition.
• Material: Machined from a single solid piece of high-grade 1045 billet for extended wear.
• Dimensions: ID-1.00" | Keyway= 1/4" | Widith= 1-7/8"

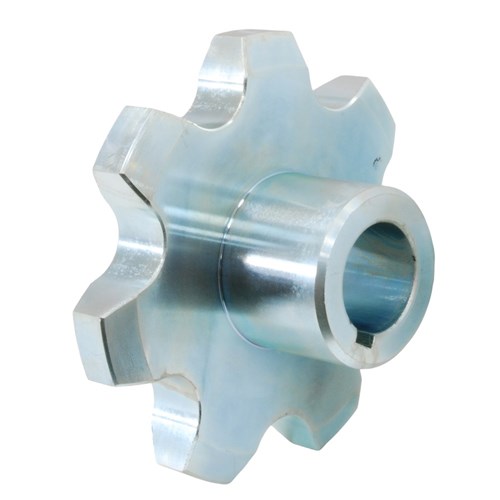

• Configuration: 7-Tooth sprocket with a 1-1/4" precision bore.
• Precision Alignment: Precision timed during manufacturing for perfect chain tracking.
• Finish: Electroplated coating for longer life and corrosion resistance.
• Available for fast Australia-wide dispatch from Collier & Miller.

Expert Maintenance Review

To keep your storage and unloading system in top condition, we recommend inspecting the shaft bkeys and shaft wear whenever these sprockets are replaced.

Because these sprockets drive critical clean grain and tailings elevators, using a precision-machined 1045 billet sprocket ensures a much longer service life compared to standard cast alternatives. Standard preventative maintenance suggests that replacing drive sprockets when installing new chains will significantly improve extended wear and prevent premature chain "climbing."
