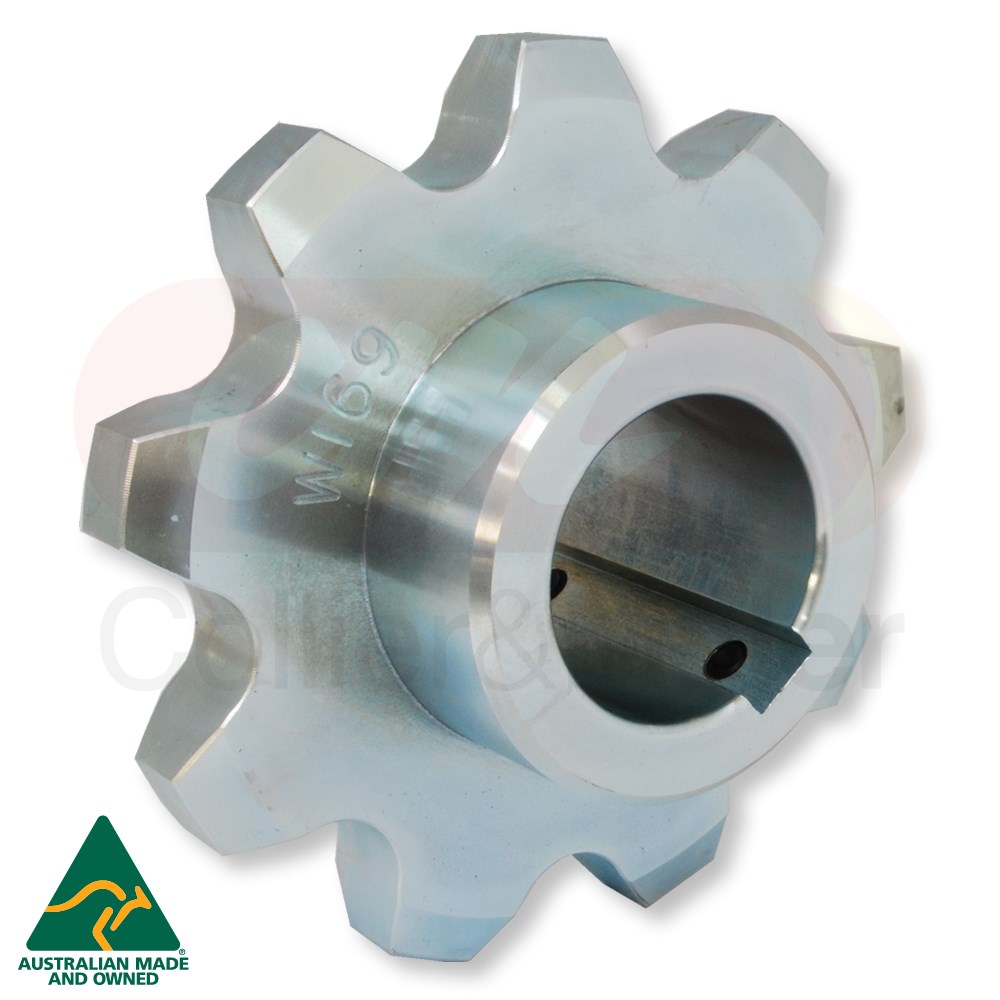

CASE-IH® Compatible Lower Elevator Sprocket
Keep your
grain handling system in top condition with this premium Australian-made lower elevator sprocket. Specifically engineered for Case-IH® Flagship series combine harvesters, this
extended wear component ensures smooth elevator chain operation and a
longer life for your clean grain system.
Manufactured by C&M in our Griffith factory, this sprocket is a precision-machined direct-fit replacement for the bottom of the main clean grain elevator. By replacing worn or "hooked" sprockets with this grade 1045 billet assembly, you maintain precise chain timing and protect your elevator driveline from unnecessary vibration and wear.
CASE-IH® OEM Cross-Reference
Replaces OEM Part Number: 87283436
Lower Clean Grain Elevator Sprocket for Case IH 7120, 8230, 9240, 8250 Models
| Series |
Models |
Serial/Year |
| Flagship 10 Series |
7010, 8010, AFX8010 |
All Units |
| Flagship 120 Series |
7120, 8120, 9120 |
All Units |
| Flagship 230 Series |
7230, 8230, 9230 |
All Units |
| Flagship 240 Series |
7240, 8240, 9240 |
All Units |
| Flagship 250 Series |
7250, 8250, 9250 |
All Units |
Technical Specifications & Features
- Quality Assurance: Proudly C&M Australian made to keep your equipment in top condition.
- Material: Machined from a single piece of high-grade 1045 billet for extended wear.
- Configuration: 9-Tooth sprocket with a 45mm precision bore.
- Drive Fitment: 12mm keyway for secure shaft engagement.
- Finish: Electroplated coating for longer life and corrosion resistance.
- Available for fast Australia-wide dispatch from Collier & Miller.
Expert Maintenance Review
To keep your grain handling system in top condition, we recommend inspecting the lower elevator shaft bearings and the elevator chain tension whenever sprockets are replaced.
Recommended Maintenance Upgrade
To ensure maximum grain handling efficiency, we highly recommend inspecting your Clean Grain Elevator Chain for elongation when installing new drive sprockets.
