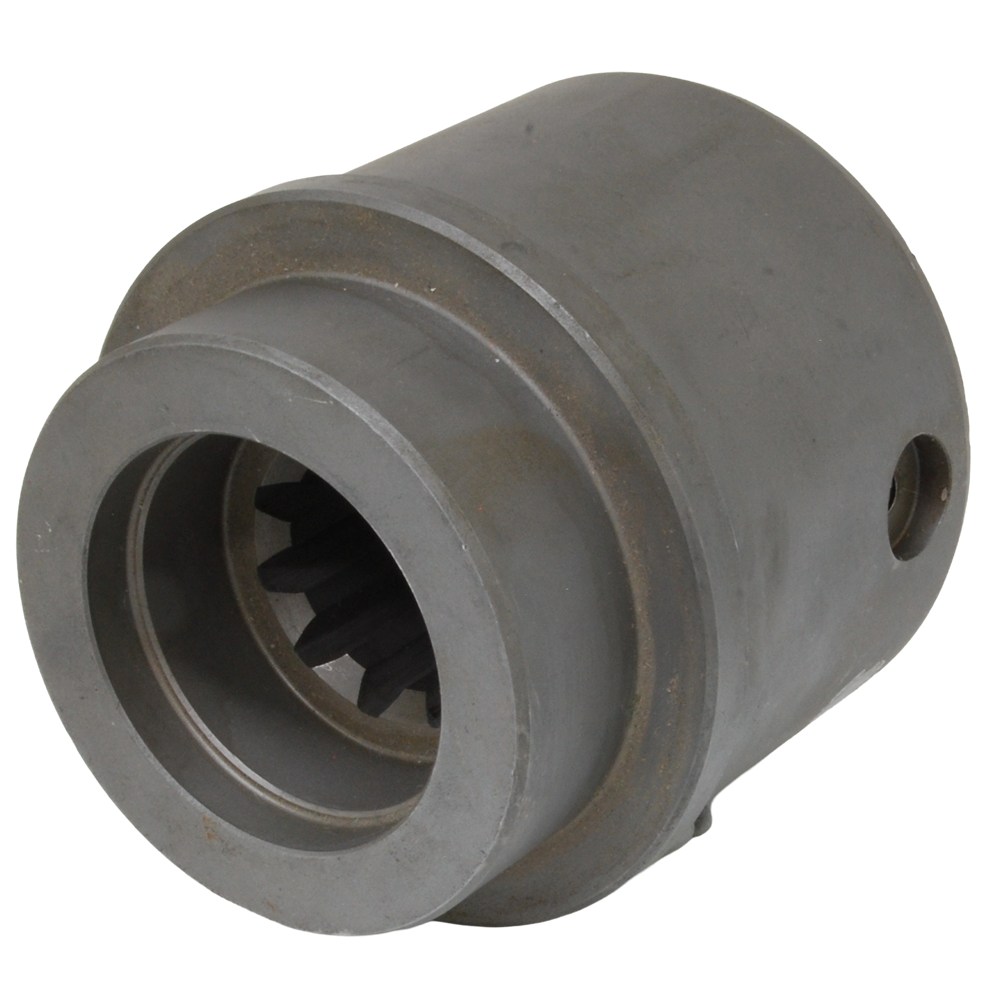

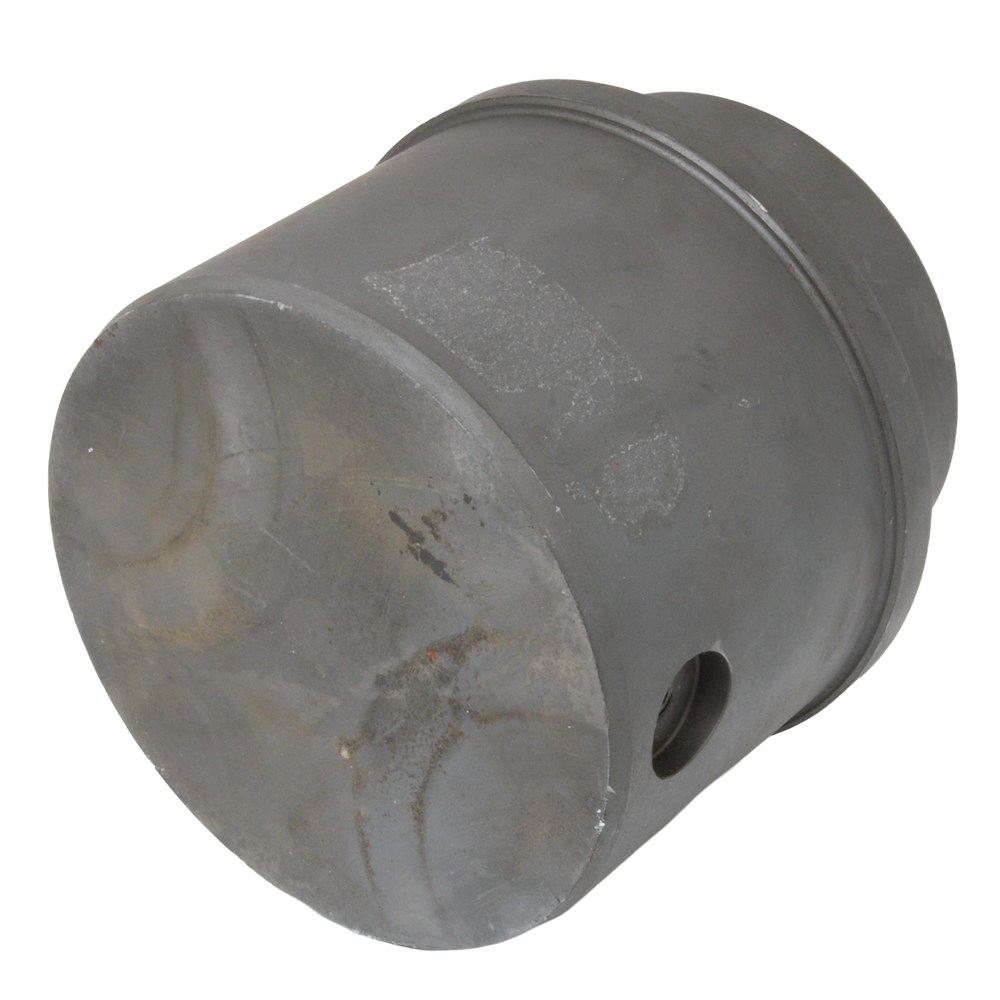

Case-IH® Compatible Feeder House Sprocket Splined Bush

Keep your product feeding system in top condition with this premium Australian-made feeder house sprocket splined bush. Specifically engineered for Case-IH® Flagship series combine harvesters, this extended wear component is a critical solution for restoring reliable drive to your feeder house assembly.

Manufactured in Australia, this splined bush is used in the production of our WI89 top sprockets. It serves as a nitride hardened repair solution for both C&M and genuine Case-IH® sprockets where the internal splines have stripped or worn. By retrofitting this repair hub, you can refurbish you existing sprocket.

Case-IH® Flagship Series Compatibility

Replaces Splined Hubs for Sprockets on: 120 Series, 230 Series, 240 Series

Feeder House Sprocket Splined Bush for Case IH 7230, 8230, 9230, 7240, 8240, 9240 Models

Series	Models	Notes
Flagship 30 Series	7230, 8230, 9230	11-Tooth Spline
Flagship 40 Series	7240, 8240, 9240	11-Tooth Spline
Flagship 50 Series	7250, 8250, 9250	11-Tooth Spline

Technical Specifications & Features

• Quality Assurance: Proudly Australian made to keep your equipment in top condition.
• Configuration: 11-Tooth internal spline.
• Dimensions: 2.500" Outer Diameter (OD) | 2.500" Length.
• Lubrication: Features an integrated 6mm grease nipple for consistent lubrication and longer life.
• Application: Designed for WI89 top sprockets and suitable for refurbishing genuine hubs (dimensional check is required)
• Available for fast Australia-wide dispatch from Collier & Miller.

Expert Maintenance Review

To keep your product feeding system in top condition, we recommend a precise measurement of your existing sprocket bore before installing this bush.

Standard preventative maintenance suggests that regular greasing of the 11-tooth spline via the integrated nipple will significantly contribute to an extended wear cycle. Replacing a stripped spline with this hardened bush allows refurshbishment of existing sprockets with stripped or word splines.
