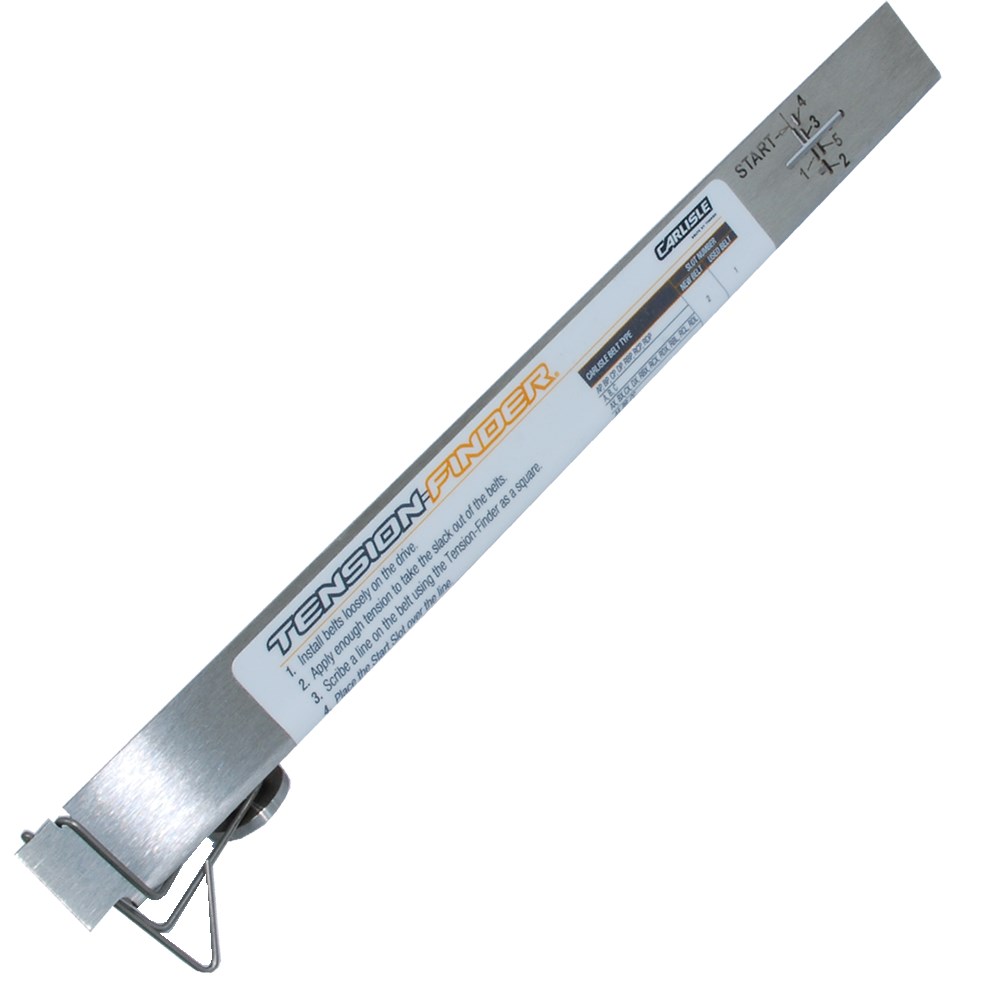

Eliminate your tensioning headaches with the Tension-Finder. It’s a quick, easy and accurate alternative for tensioning individual v-belts or bands.
Features
- No measurements
- No math
- No computers
- No O-rings
- It’s practical
- It’s reusable
- It’s easy
- It works
Method
- Install belts loosely on the drive.
- Apply enough tension to take the slack out of the belts.
- Scribe a line on the belt using the TensionFinder as a square.
- Place the Start Slot over the line.
- With the line in the Start Slot attach the spring to the belt. Note: For cog belts, the best place for the spring may be in between the cogs.
- Scribe a line at the spring end of the TensionFinder. Use this line as a reference point in case the spring slips off the belt.
- Determine the required slot for your drive from Table 1. Tighten the belt until the line has moved to the designated slot. (In this photo, the line is in Slot 3.)
- Remove the Tension-Finder from the belt, tighten mounting bolts, and replace belt guards. You’re ready to start the drive!
NOTE: The Tension-Finder is designed for use with Timken belts. Do NOT use on belts with aramid, glass or carbon fiber cord.
