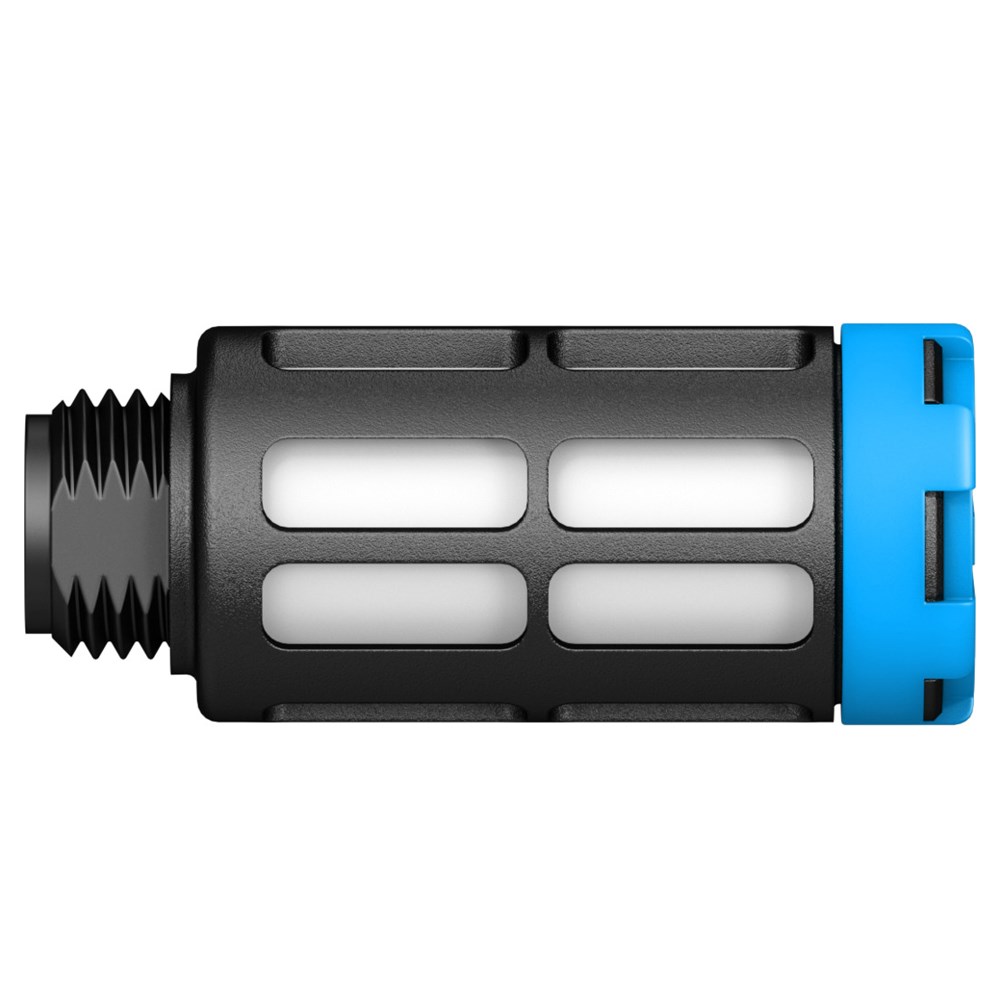

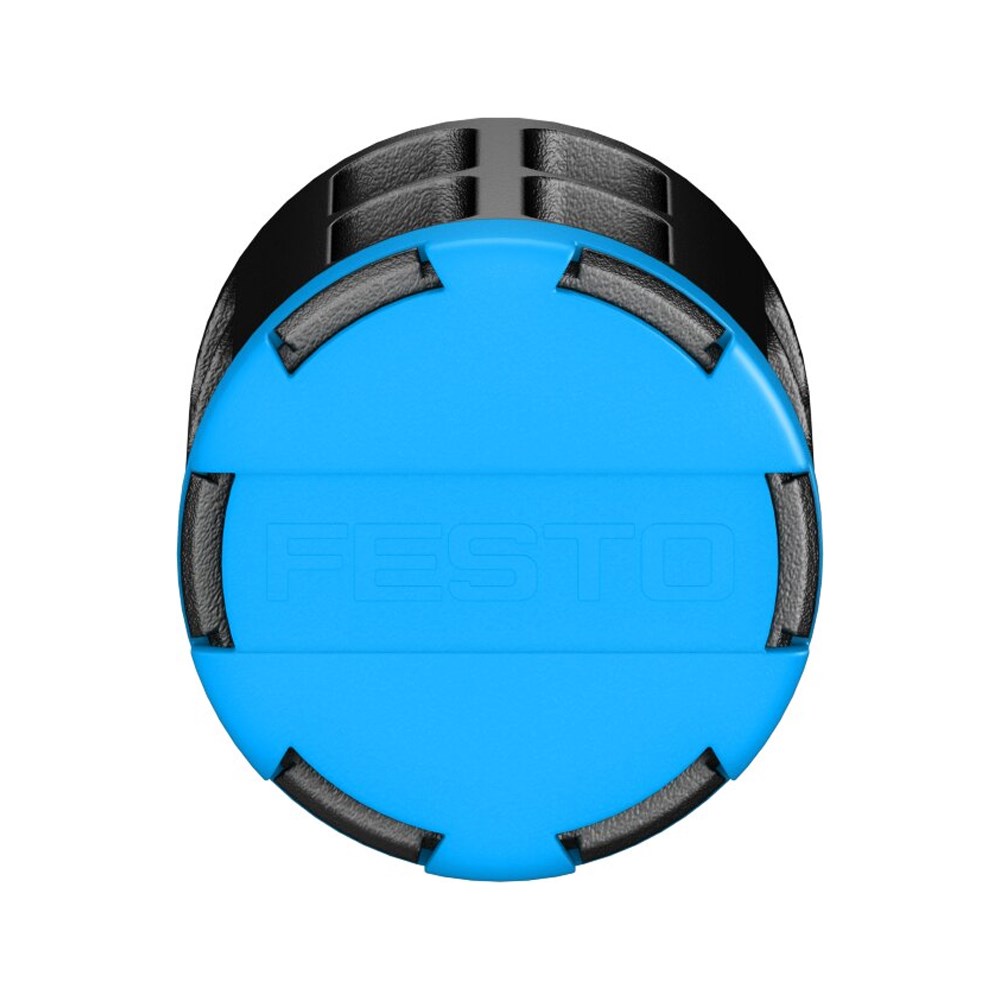

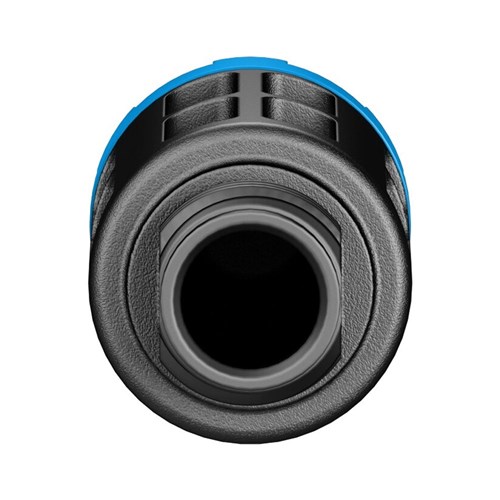

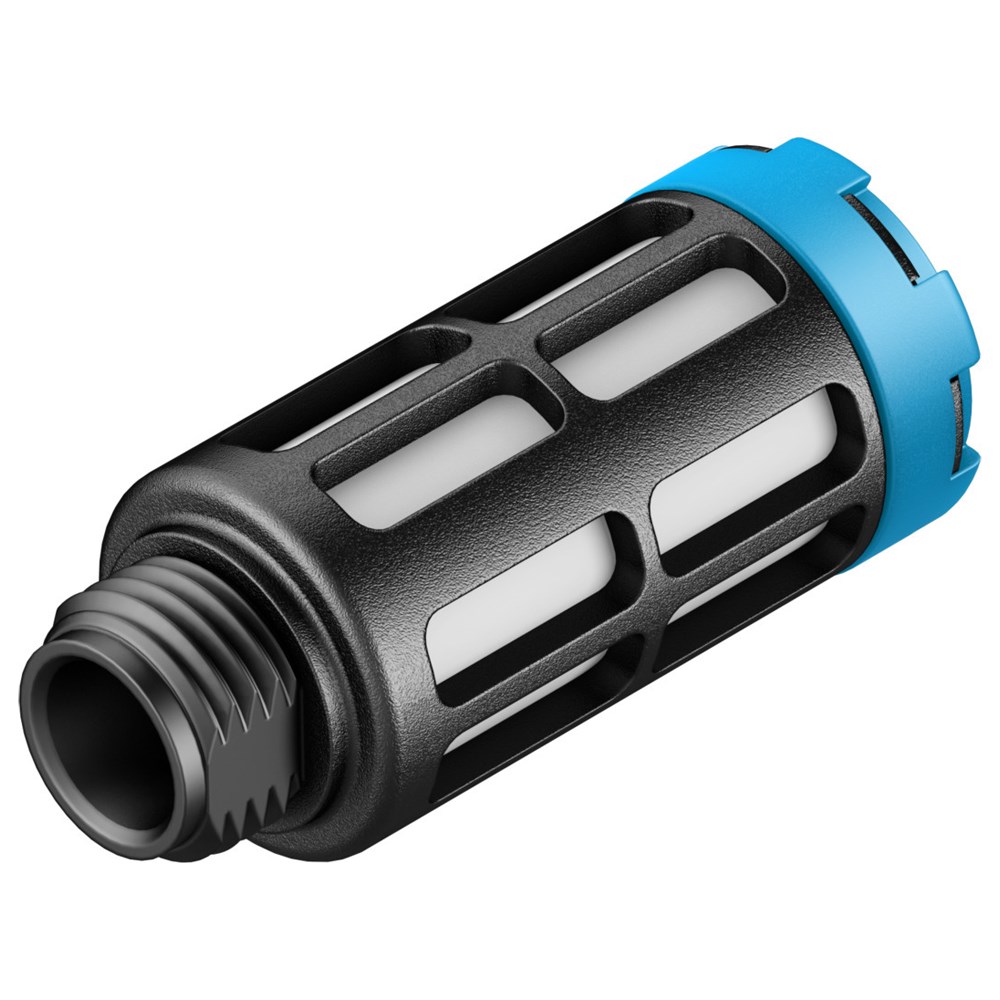

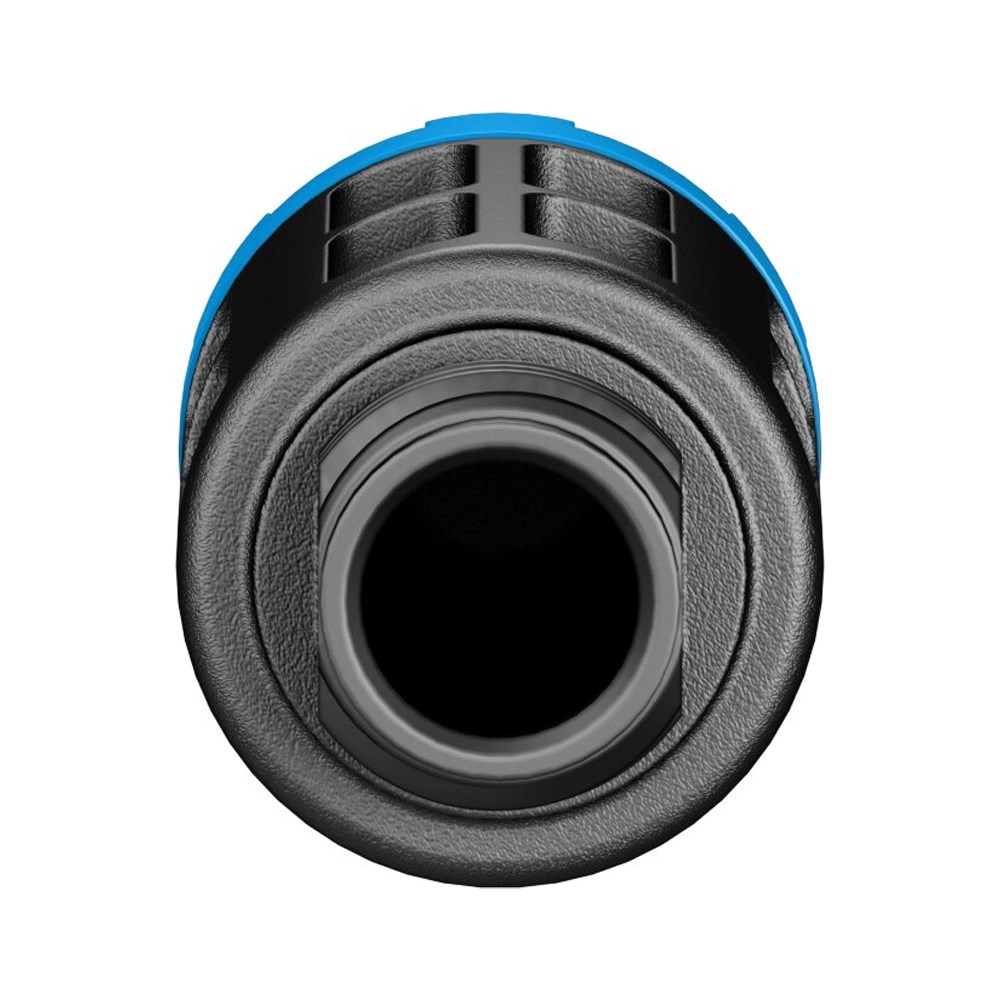

FESTO Pneumatic Silencer 1/8" – U Series U-1/8
Compact and efficient, the FESTO U Series Pneumatic Silencer minimizes exhaust noise while maintaining optimal airflow performance. Designed for versatility and long-lasting reliability, it ensures quieter operation in pneumatic systems without sacrificing output.
Features
- Compact 1/8" design for easy installation
- Noise level reduced to 74 dB(A)
- Operates in any mounting position
- Compatible with lubricated or non-lubricated air
- LABS (PWIS) compliant to VDMA24364-B1/B2-L
- Environmentally safe RoHS-compliant materials
Specifications
- Operating pressure 0–10 bar (0–1 MPa)
- Flow rate to atmosphere 2000 l/min
- Ambient temperature -10°C to 70°C
- Pneumatic connection G1/8
- Material PE shock absorber insert
- Product weight 2.3 g
- Sound pressure 74 dB(A)
