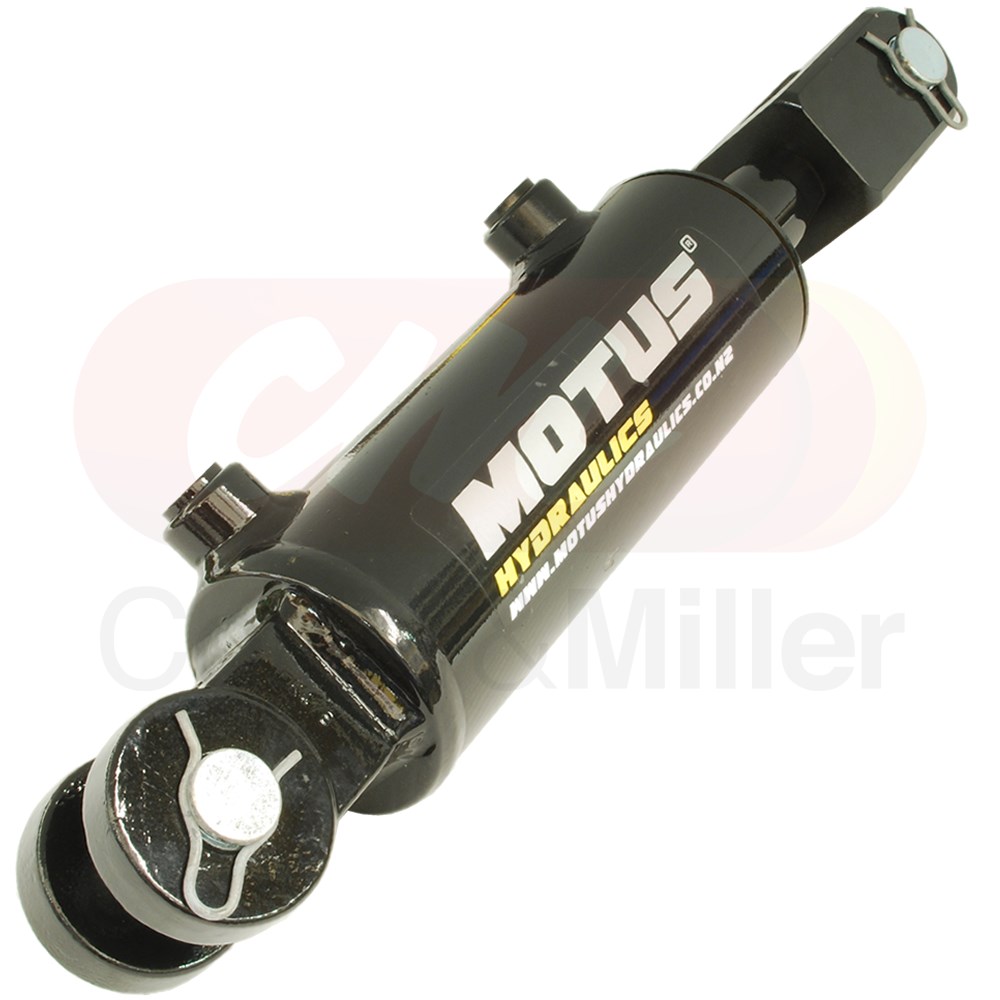

C&M stock a complete range of agricultural hydraulic cylinders suitable for installation into many different applications. Conforming to ASEA standards, all agricultural cylinders offer standard dimensions and quality components to ensure easy fitment and unrivalled performance. Available in a range of brands that ensure availability of the correct size cylinder for your application regardless of manufacturing lead times.

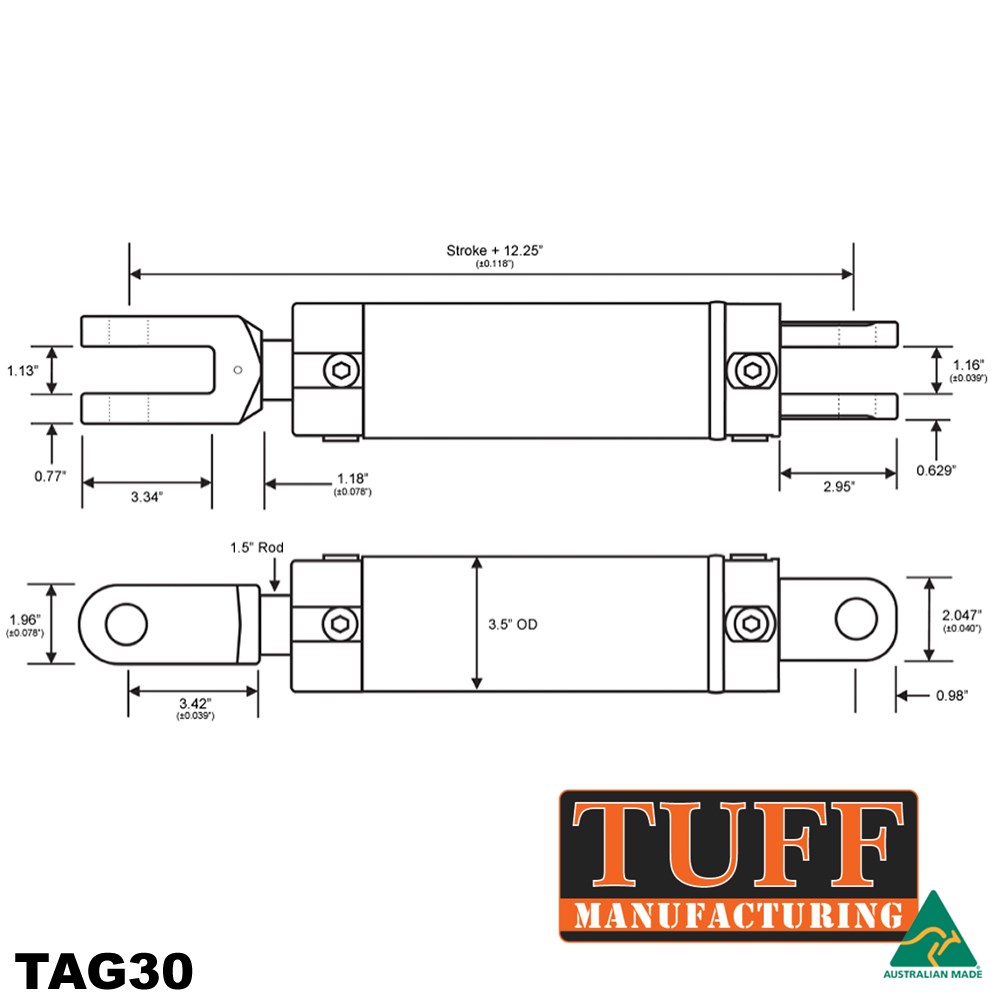

Dimensions
| Brand |
Bore Dia |
Rod Dia |
Stroke |
Closed Length |
Open Length |
Mount |
Ports |
| MOTUS |
3.00" |
1.50" |
16.00" |
28.25" |
44.25" |
1" Pin Clevis x 2 |
3/4"-UNO A Ports |
| NORDON |
3.00" |
1.50" |
16.00" |
28.25" |
44.25" |
1" Pin Clevis x 2 |
3/4"-UNO A Ports |
| TUFF |
3.00" |
1.50" |
16.00" |
28.25" |
44.25" |
1" Pin Clevis x 2 |
3/4"-UNO A/B Ports |
*All dimensions in inches
*All lengths are center of pin to center of pin |
Cylinder push & pull force table
| Bore x Rod Diameter |
Force Push @ 2250psi |
Force Pull @ 2250psi |
| 1.50" x 0.75" |
1,760 kg |
1,320 kg |
| 2.00" x 1.00" |
3,140 kg |
2,350 kg |
| 2.50" x 1.50" |
4,900 kg |
3,140 kg |
| 3.00" x 1.50" |
7,060 kg |
5,300 kg |
| 3.50" x 1.75" |
9,620 kg |
7,210 kg |
| 4.00" x 2.00" |
12,824 kg |
9,618 kg |
| 5.00" x 2.50" |
20,038 kg |
15,028 kg |
