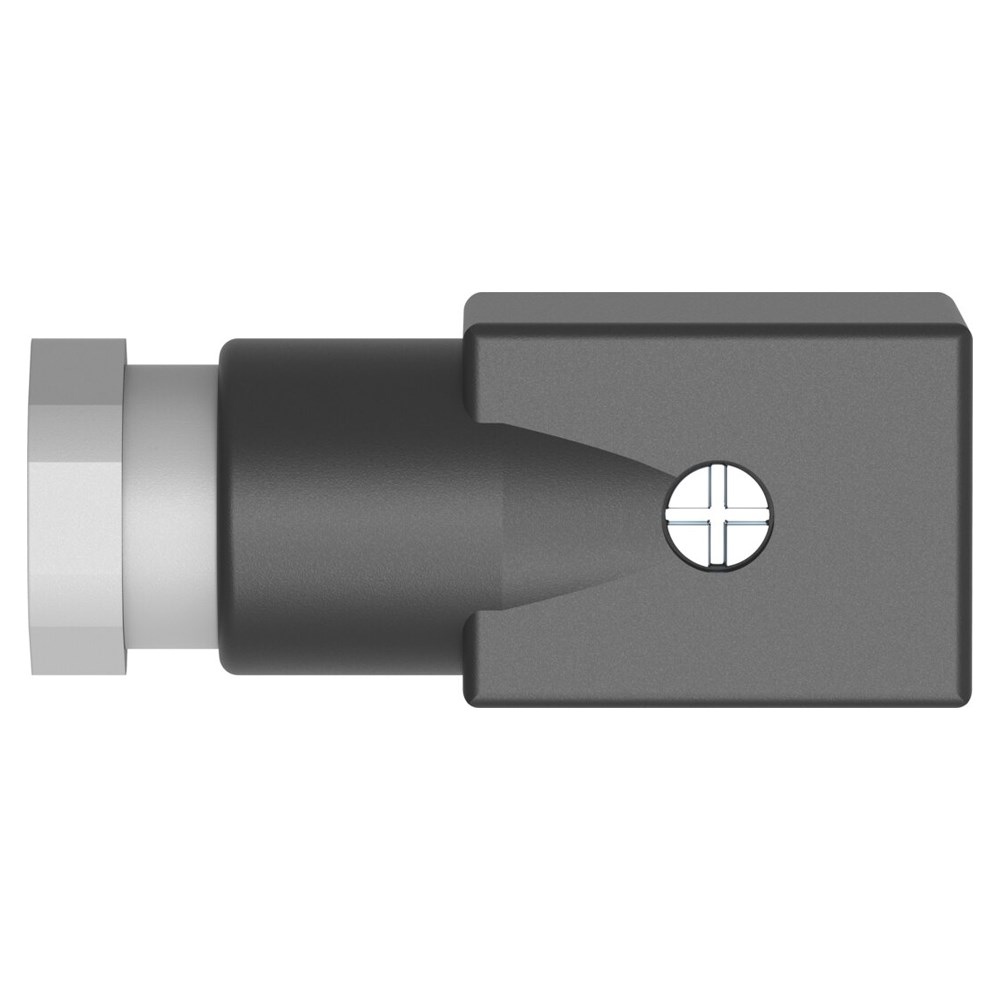

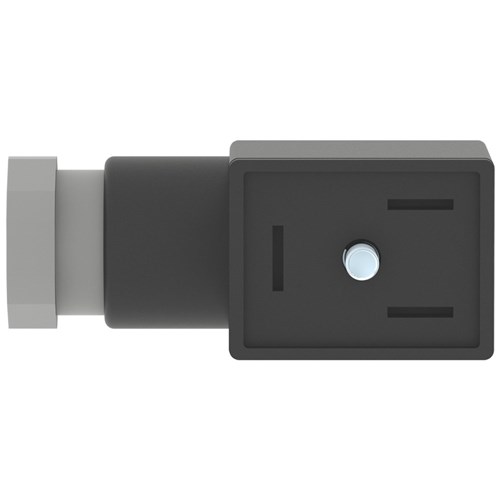

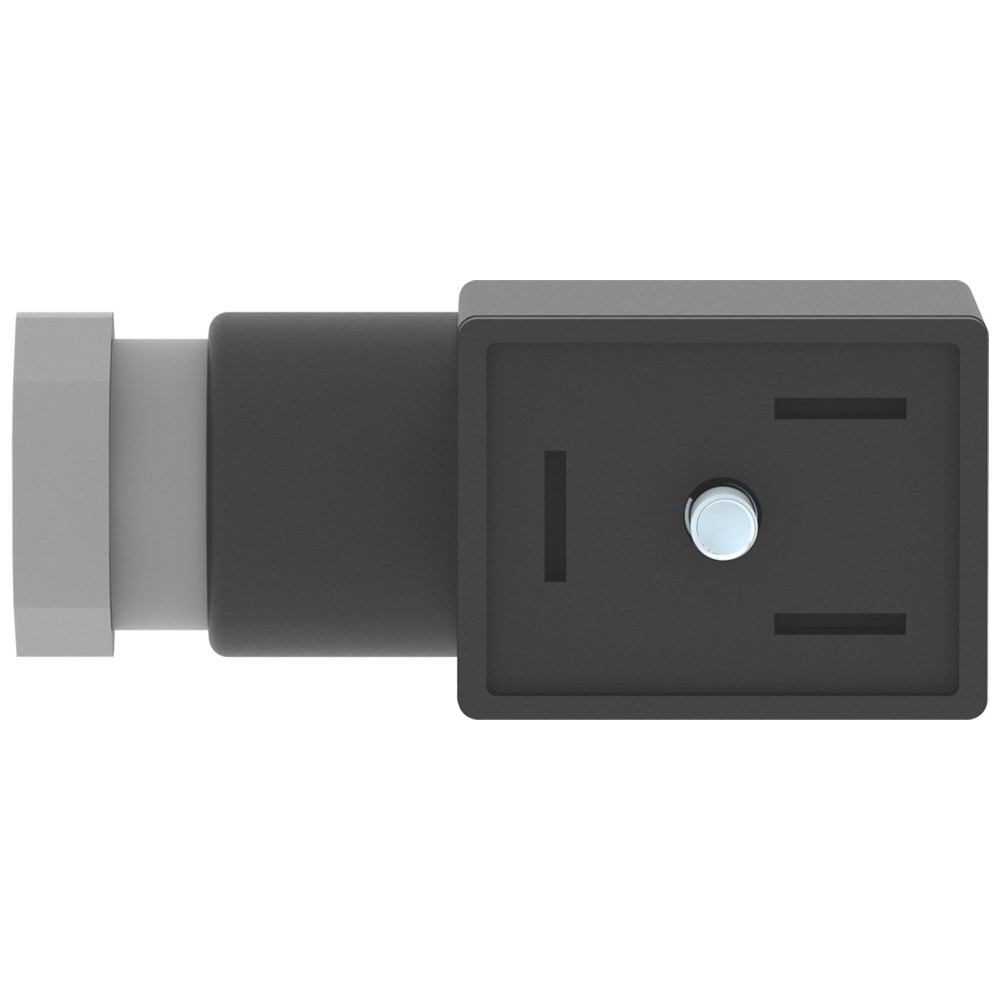

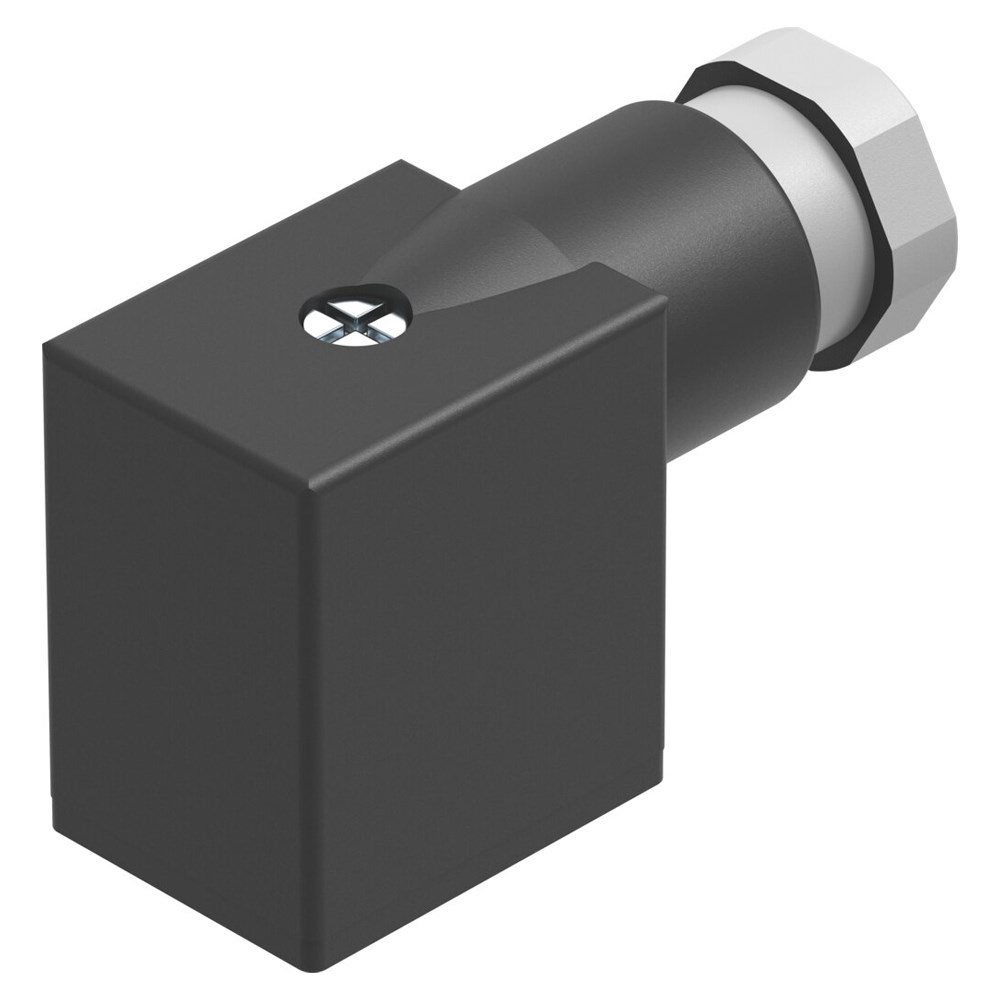

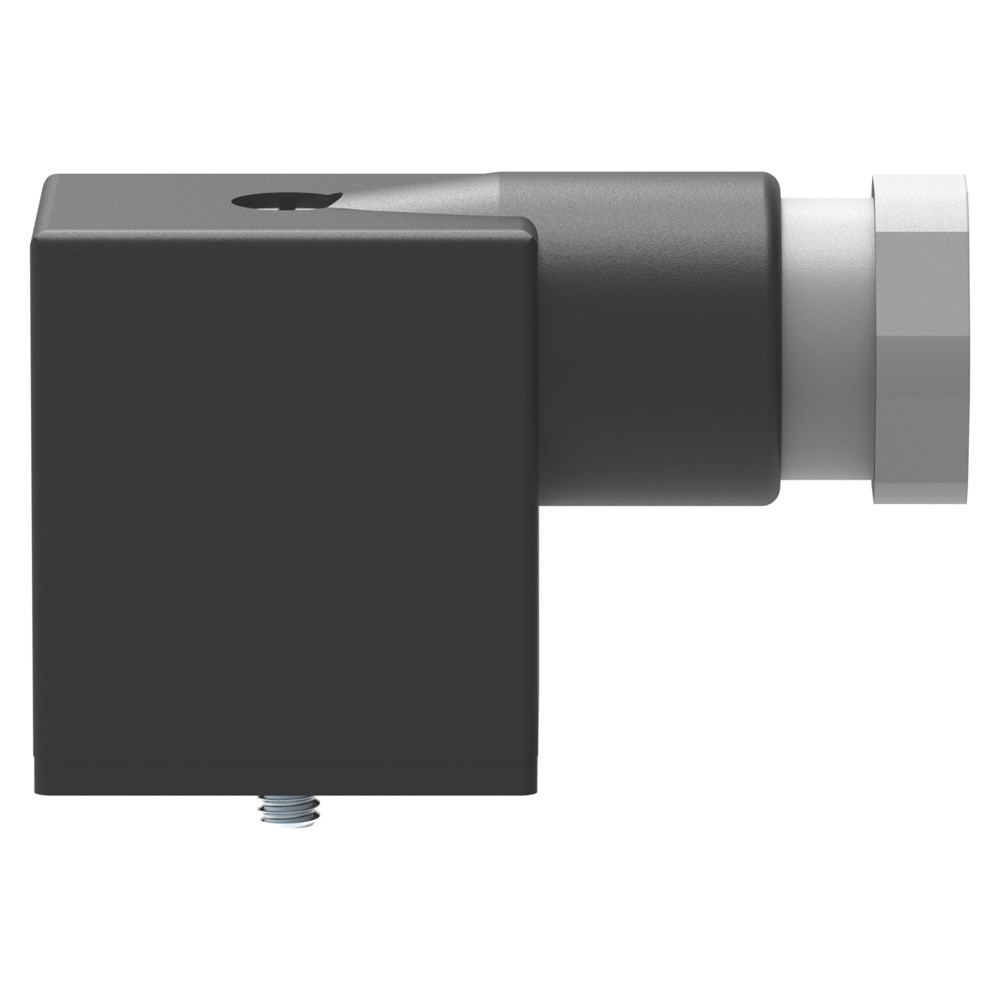

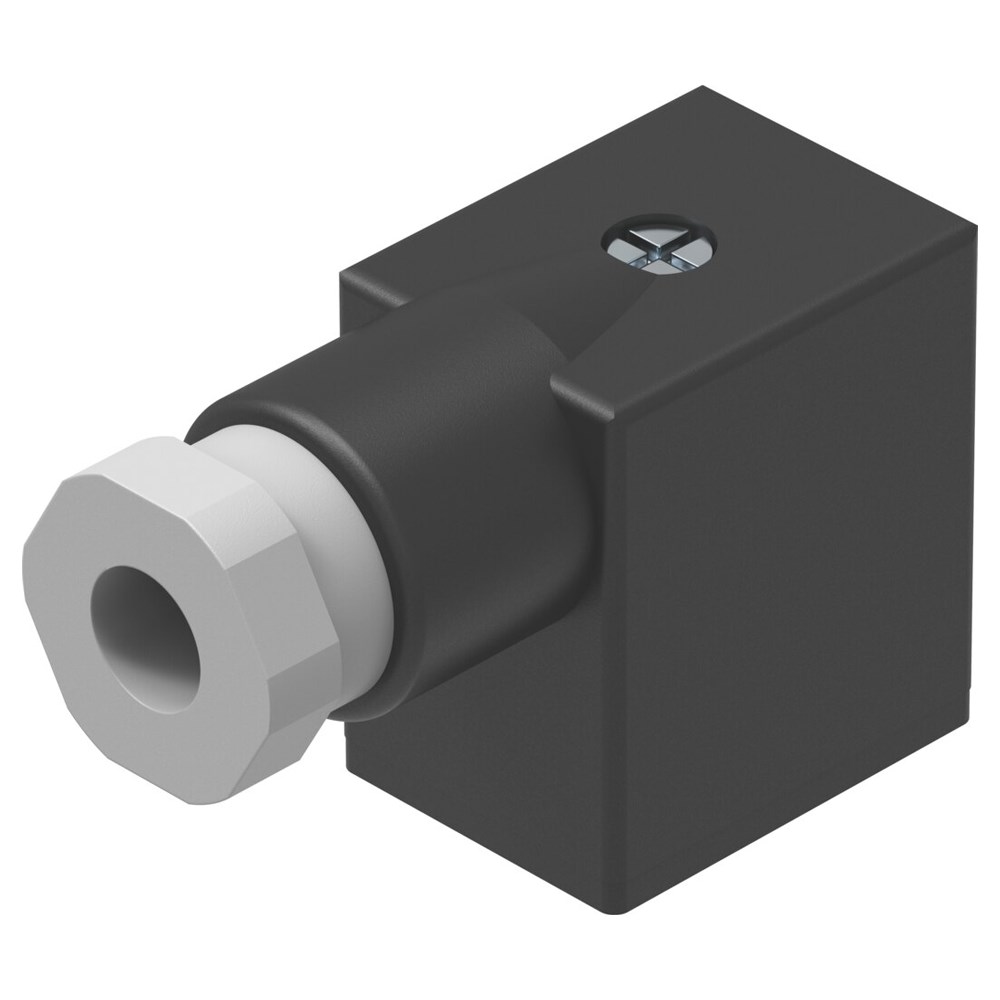

FESTO MSF 3-PIN SOCKET FOR F8 ARMATURE VALVE – MSSD-F
A robust and versatile 3-pin socket designed for Festo F8 armature valves, offering reliable electrical connections in industrial applications. The MSSD-F features an angled, 180° rotatable cable outlet for flexible installation, allowing optimal orientation in tight spaces. Constructed with a durable polymer housing and NBR seals, it provides IP65 protection in assembled state, ensuring dependable performance in harsh environments.
Features
- 3-pin angled socket designed for F8 armature valves
- 180° rotatable cable outlet for flexible installation
- Supports DC 0–250V and AC 0–250V operation
- High current rating of 16A at 40°C
- IP65 protection when assembled for dust and moisture resistance
- Durable polymer housing with NBR seals for long-lasting reliability
Specifications
- Connection Type: 3-pin Angled Socket, Square Design MSF
- Mounting: On solenoid valve via M3 central screw
- Cable Outlet: Angled, 180° rotatable
- Current Rating: 16A
- Voltage Range: DC 0–250V / AC 0–250V
- Degree of Protection: IP65 (assembled)
- Cable Diameter Range: 6–8 mm
- Conductor Cross Section: ≤1.5 mm²
- Material: Polymer Housing, NBR Seals
- Ambient Temperature Range: -25°C to 90°C
- Compliance: CE & UKCA, RoHS, VDMA24364-B2-L LABS Conformity
