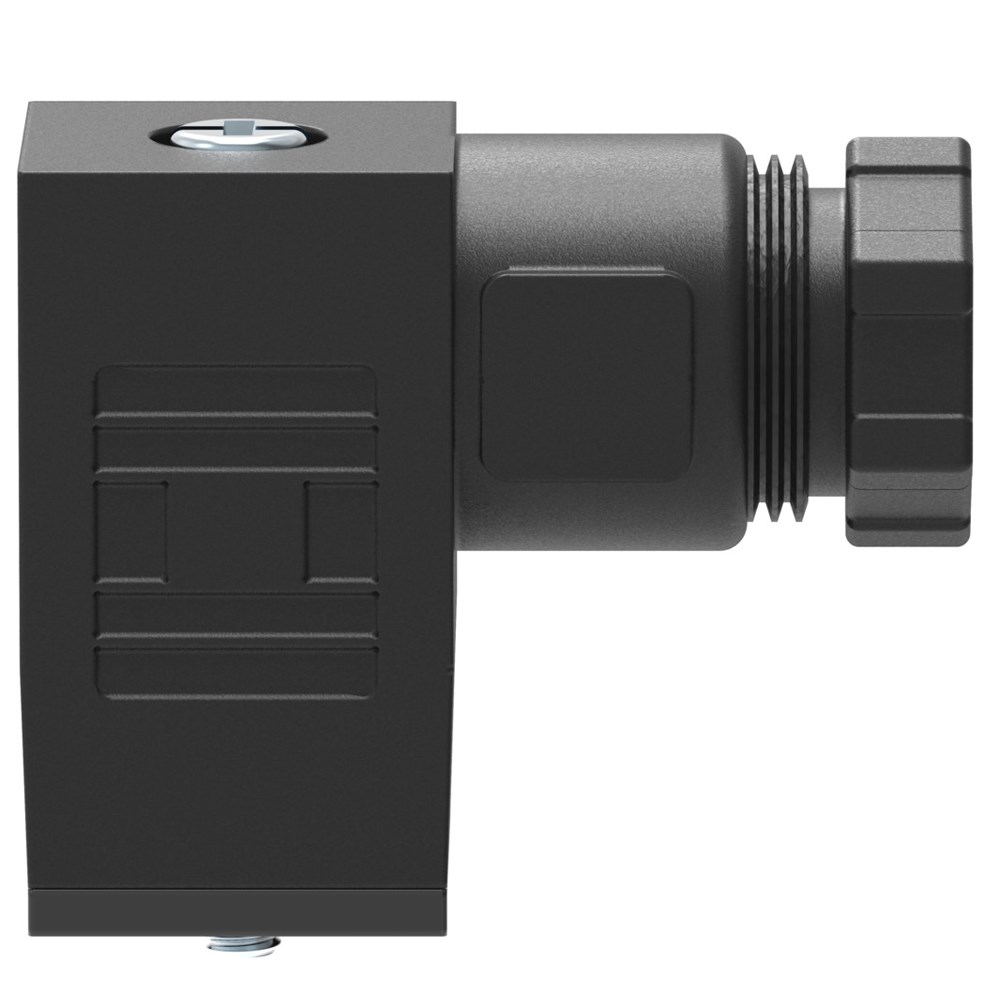

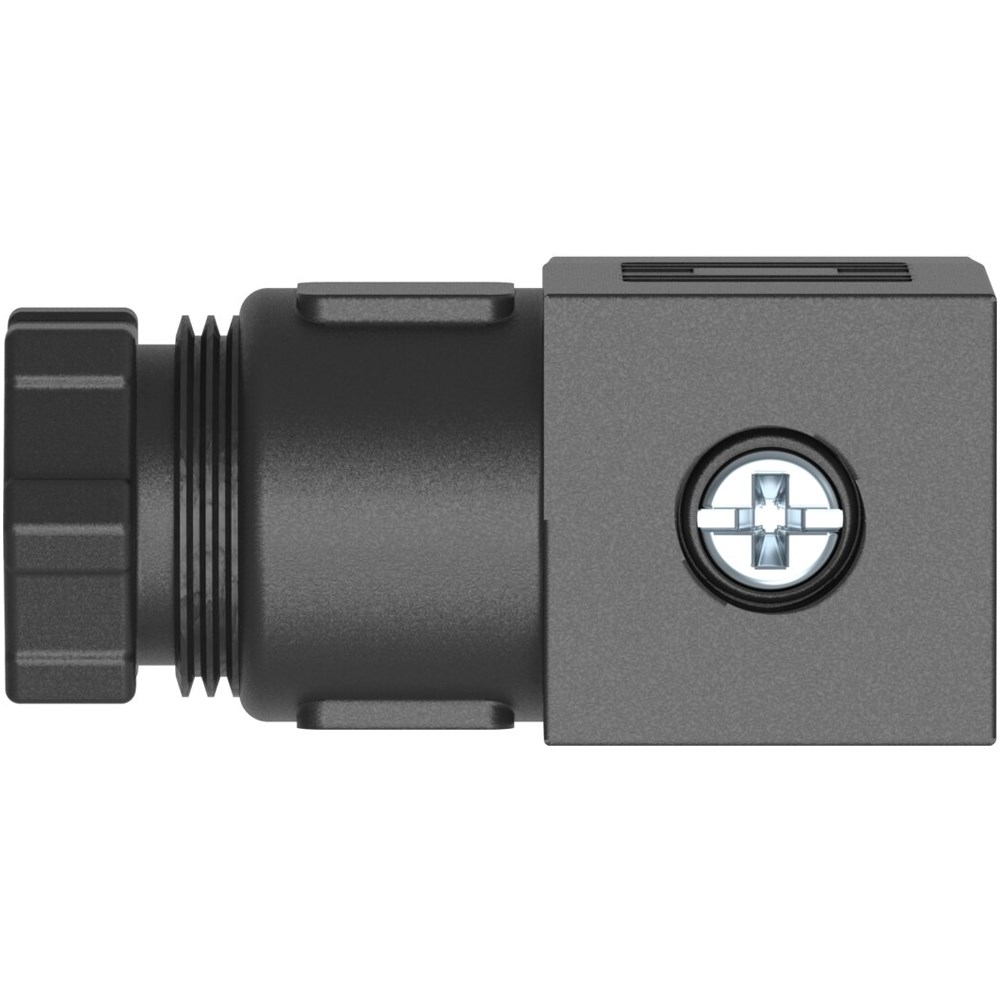

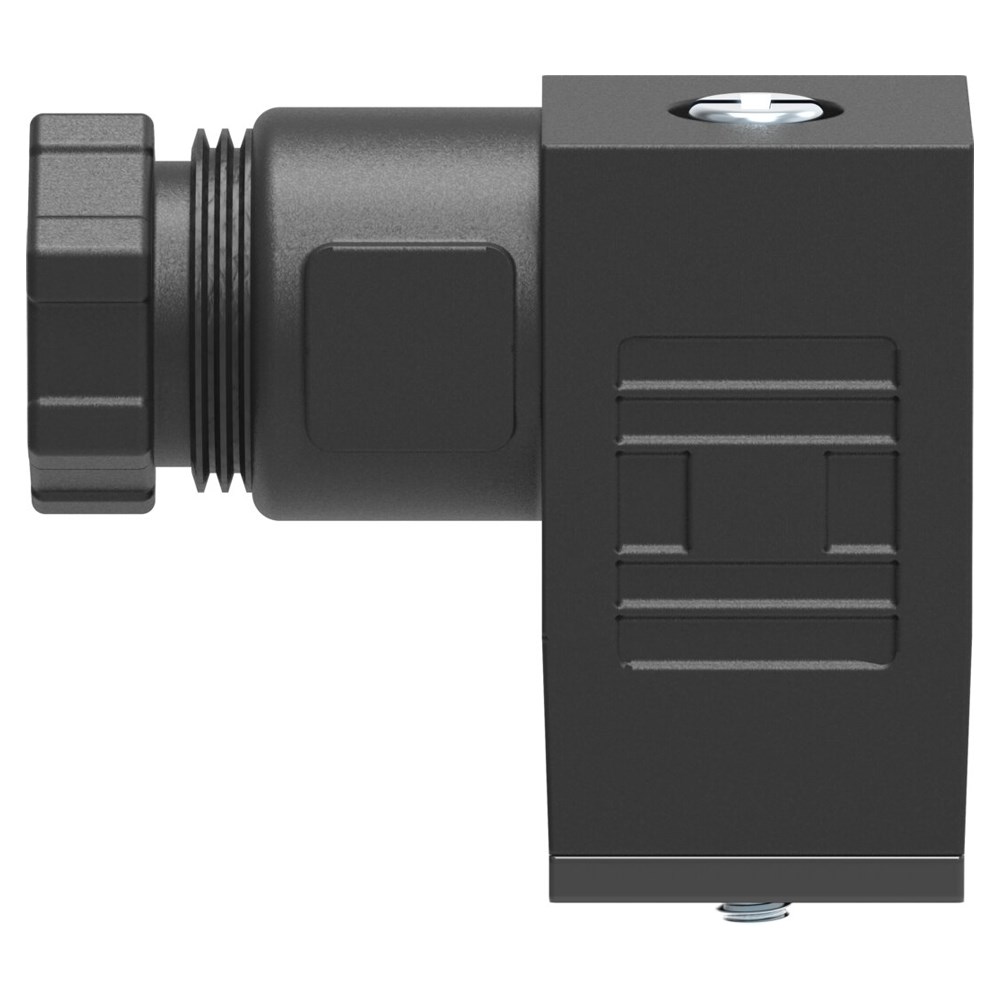

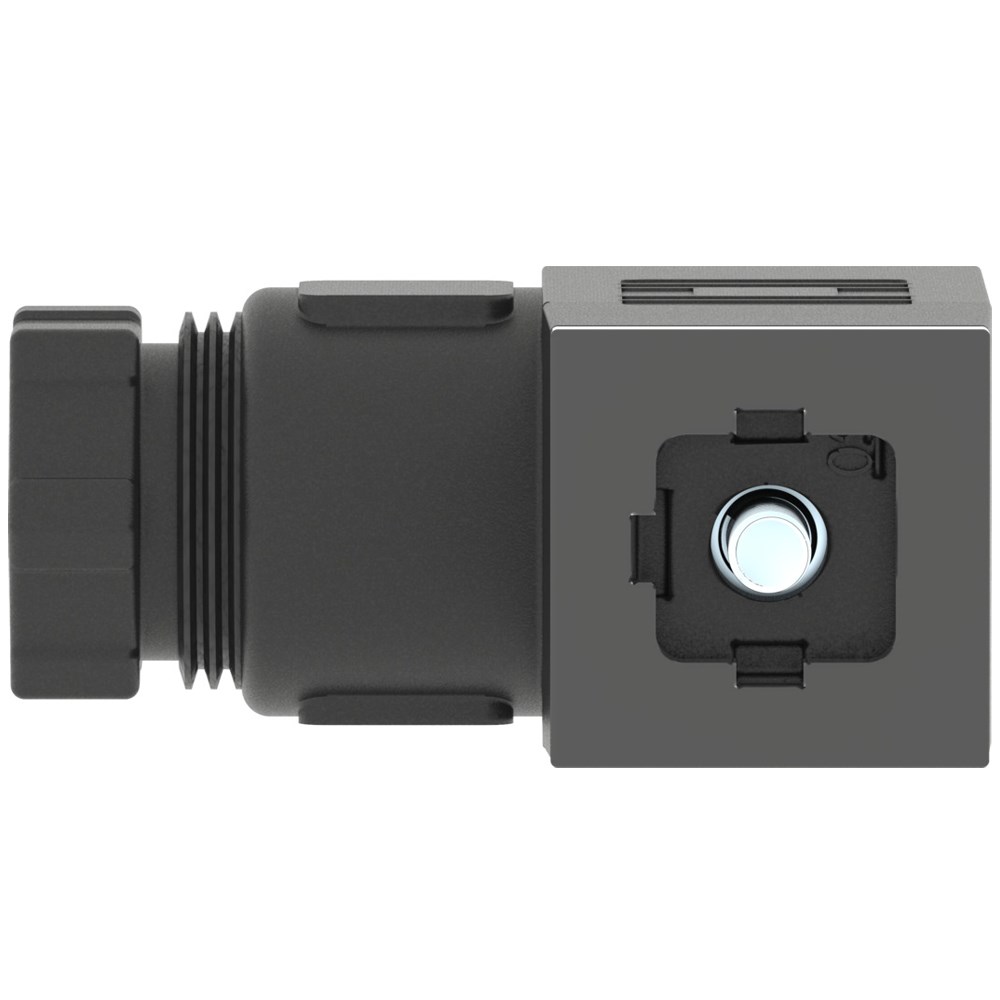

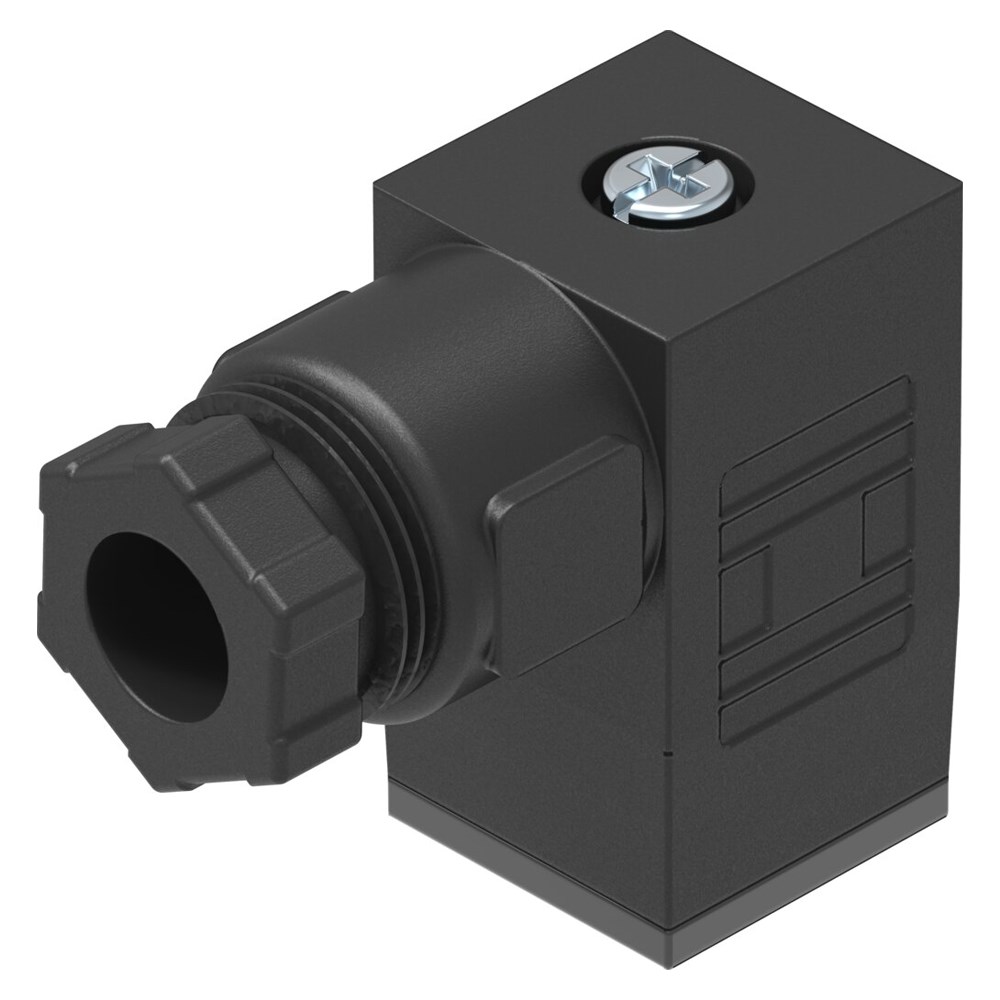

FESTO 3-PIN SOCKET FOR F7 ARMATURE VALVE – MSSD-EB
A compact and reliable electrical connection solution designed for Festo F7 armature valves. The MSSD-EB 3-pin socket features an angled, rotatable cable outlet for flexible installation, ensuring a secure and durable connection even in demanding industrial environments. Built with a robust polymer housing and rated to IP65 when assembled, it provides excellent protection against dust and moisture while supporting both AC and DC operating voltages.
Features
- 3-pin angled socket designed for F7 armature valves
- Rotatable 90° cable outlet for adaptable mounting orientation
- Suitable for DC 0–300V and AC 0–250V operation
- Rated up to 6A current load at 40°C
- IP65 protection (when assembled) for harsh environments
- Polymer housing with NBR sealing for durability and reliability
Specifications
- Connection Type: 3-pin Socket, Angled
- Mounting: On solenoid valve via M2.5 central screw
- Cable Outlet: Angled, 90° rotatable
- Current Rating: 6A
- Voltage Range: DC 0–300V / AC 0–250V
- Degree of Protection: IP65 (assembled)
- Cable Diameter Range: 6–8 mm (Nominal: 7.5 mm)
- Conductor Cross Section: ≤0.75 mm²
- Material: Polymer Housing, NBR Seals
- Ambient Temperature Range: -45°C to 90°C
- Compliance: CE & UKCA, RoHS, VDMA24364-B2-L LABS Conformity
