AUSTLIFT BOW SHACKLE SCREW PIN

GRADE S GALVANISED

Product Code: 503A
From
  $2.44 prices may differ on variants
EACH inc GST
Afterpay Logo
Buy now. Pay later. Interest-free.
Afterpay Logo
Available for orders between $0.04-$2,000.00
Afterpay Logo
Unavailable for this order
Afterpay Logo
4 payments of
Qty
1.0000 - 99.9999 $2.44 (inc GST)
100.0000+ $2.20 (inc GST)
* 100 EACH in a PAIL
In Stock Low Stock Contact Us Please See Attributes
Increase value Decrease value

  • Detail

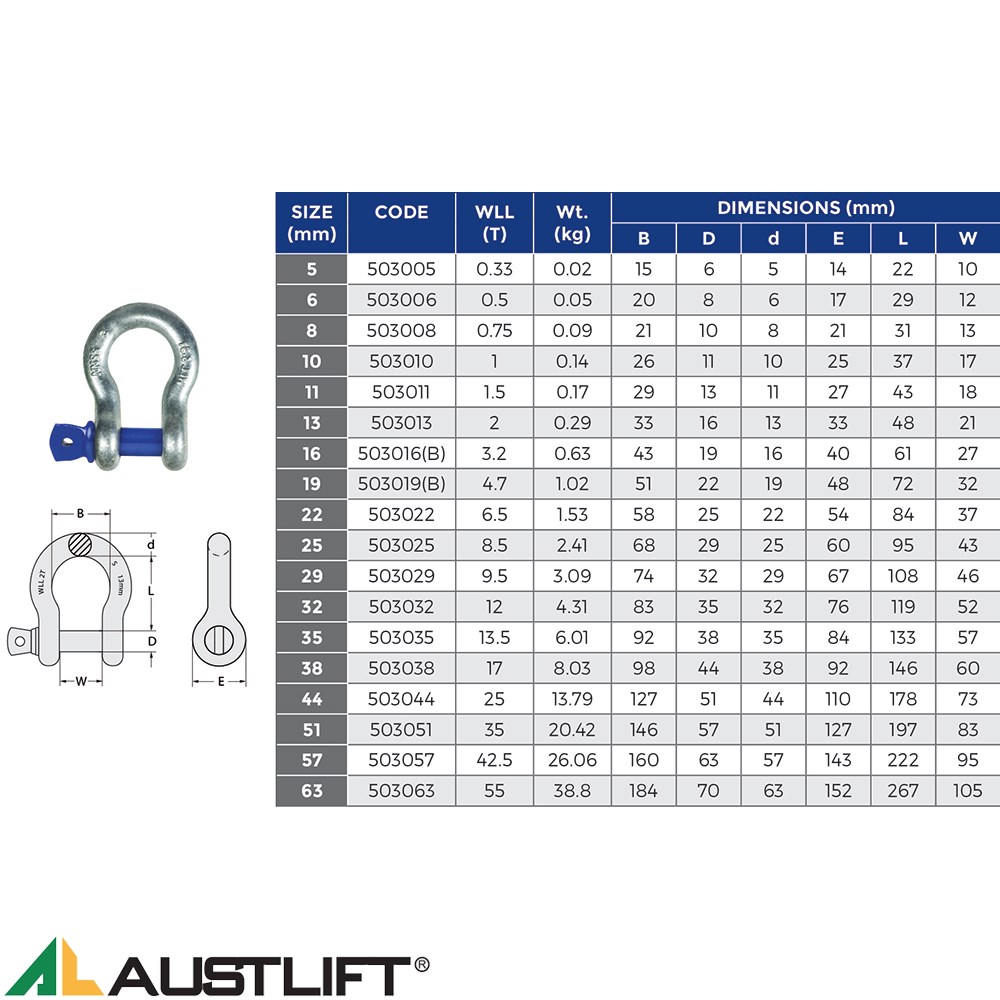

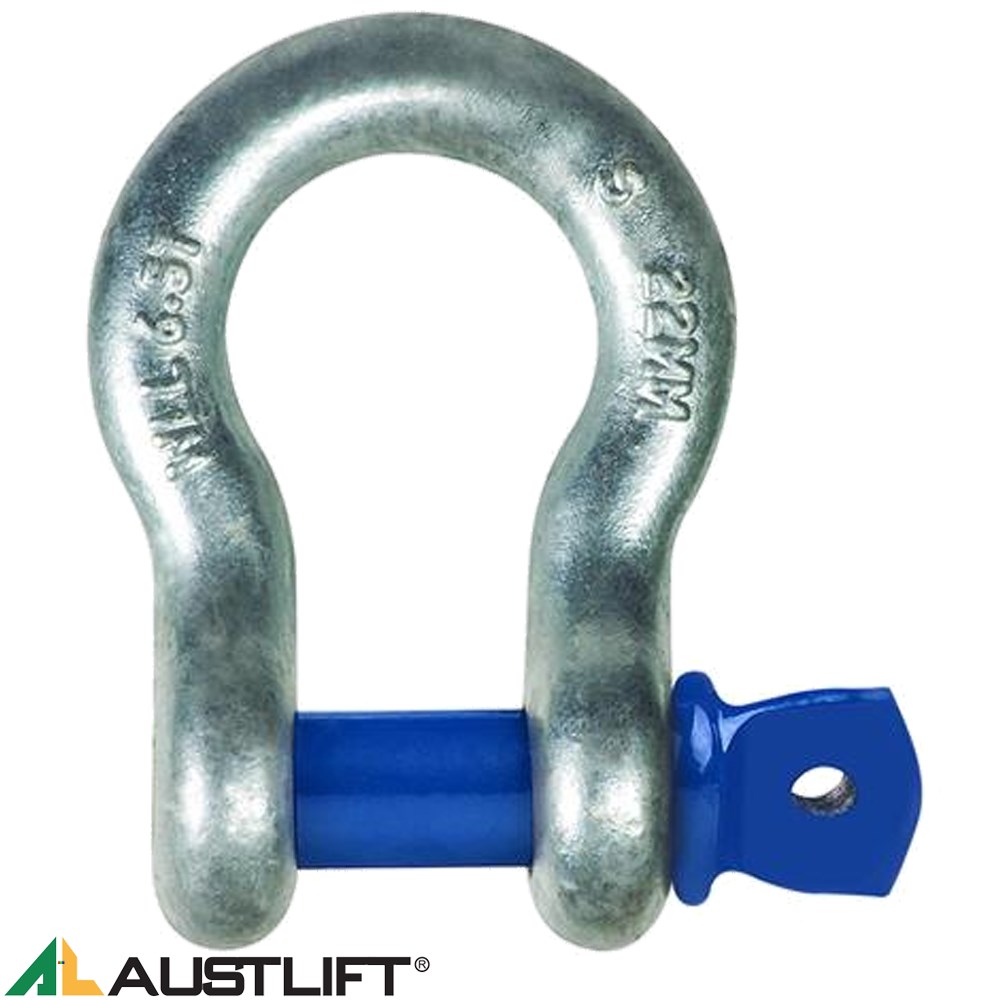

Austlift Screw Type Bow Shackles – Galvanised

Austlift blue screw pin bow shackles are designed for demanding lifting applications, providing secure connections for chains, wire ropes, and other rated fittings. Ideal for use across marine, agricultural, mining, and engineering industries, these shackles conform to AS2741 standards and are manufactured from Grade S material.

With a hot-dipped galvanized finish, each shackle is clearly marked with the working load limit, quality grade, batch number, nominal size in millimetres, and supplier identification. They are proof tested to twice the working load limit and have a minimum break force of six times the working load limit, ensuring exceptional safety and performance. Test certificates are available upon request.

Features

  • Designed for lifting applications
  • Provides secure connections for chains, wire ropes, and rated fittings
  • Conforms to AS2741 standards
  • Manufactured from Grade S material
  • Hot-dipped galvanized for corrosion resistance
  • Marked with working load limit, quality grade, batch number, nominal size, and supplier ID
  • Proof tested to 2x working load limit
  • Minimum break force of 6x working load limit
  • Test certificates available upon request

Depending on availability, we may source these from an alternative supplier, which could result in the pin being yellow in colour. However, the rating and performance will remain unchanged.
