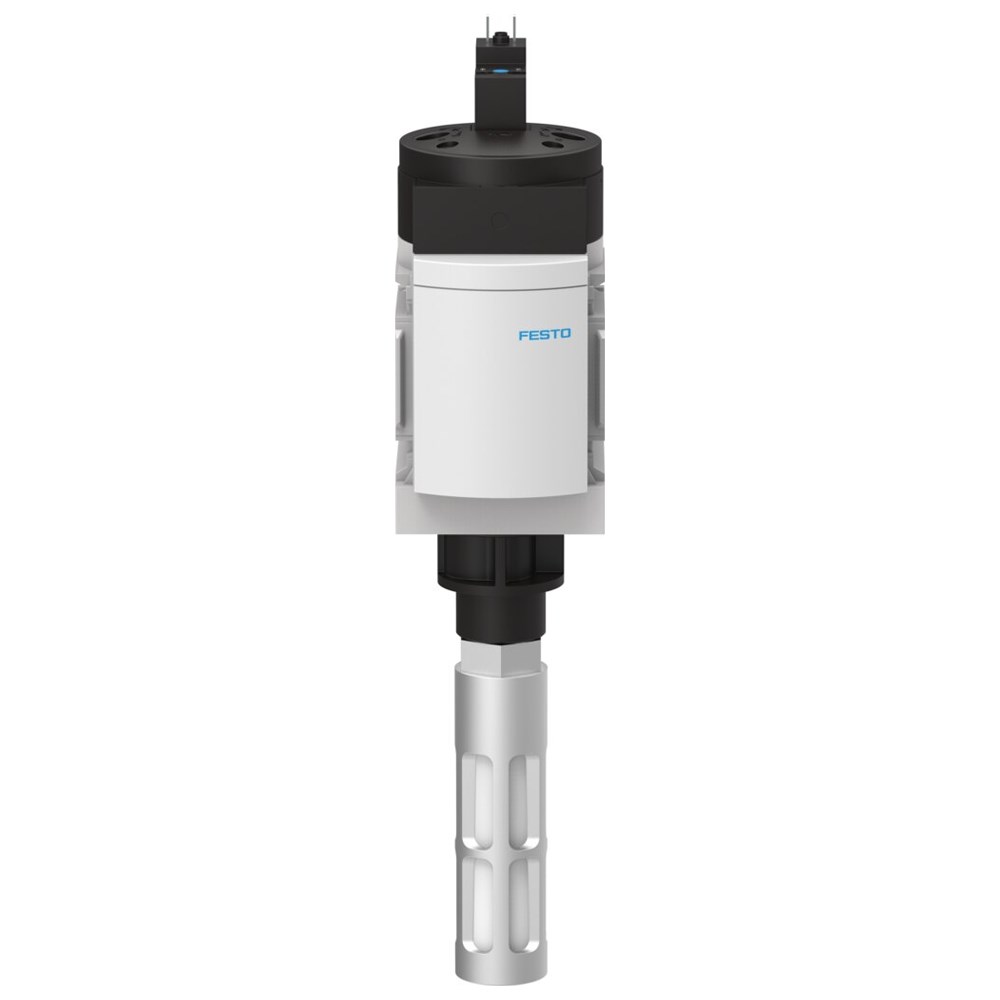

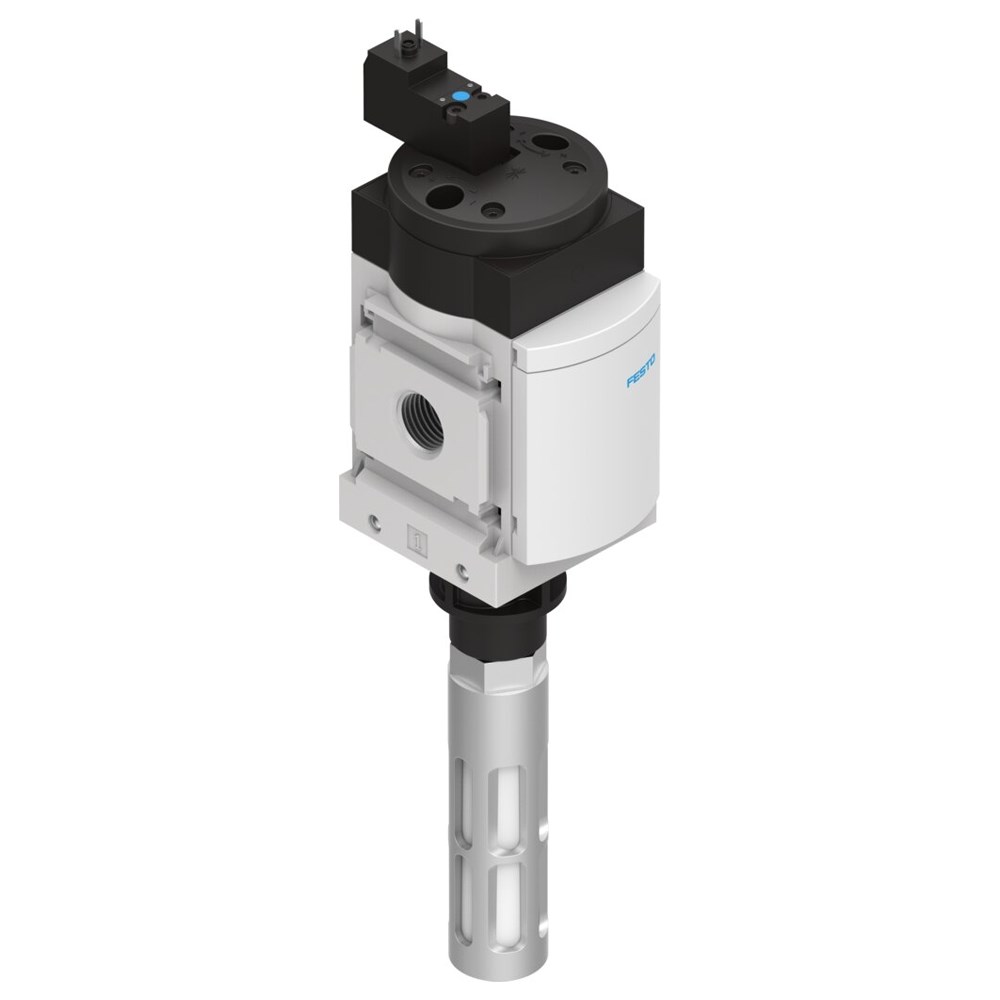

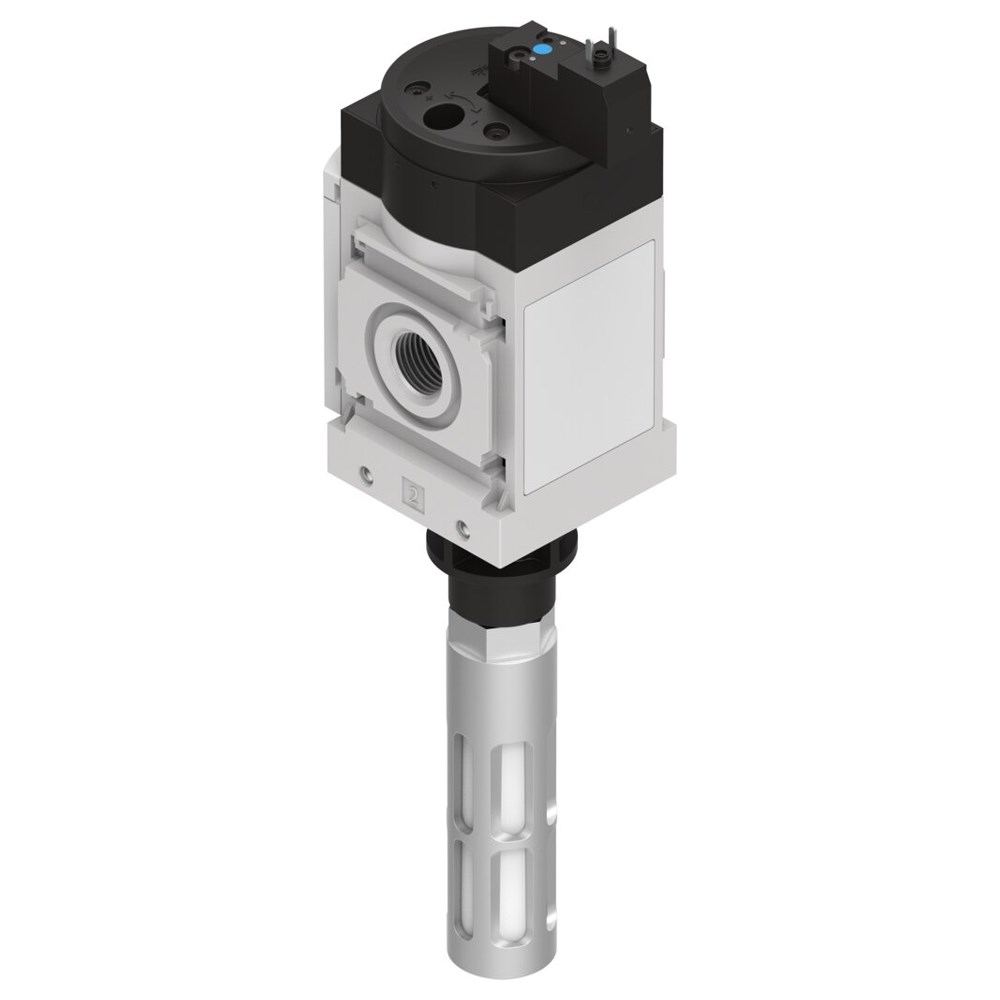

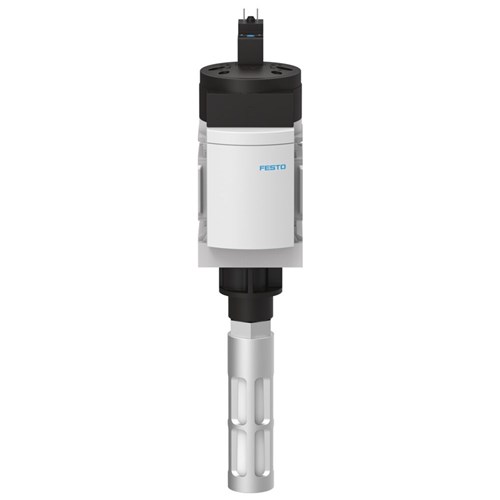

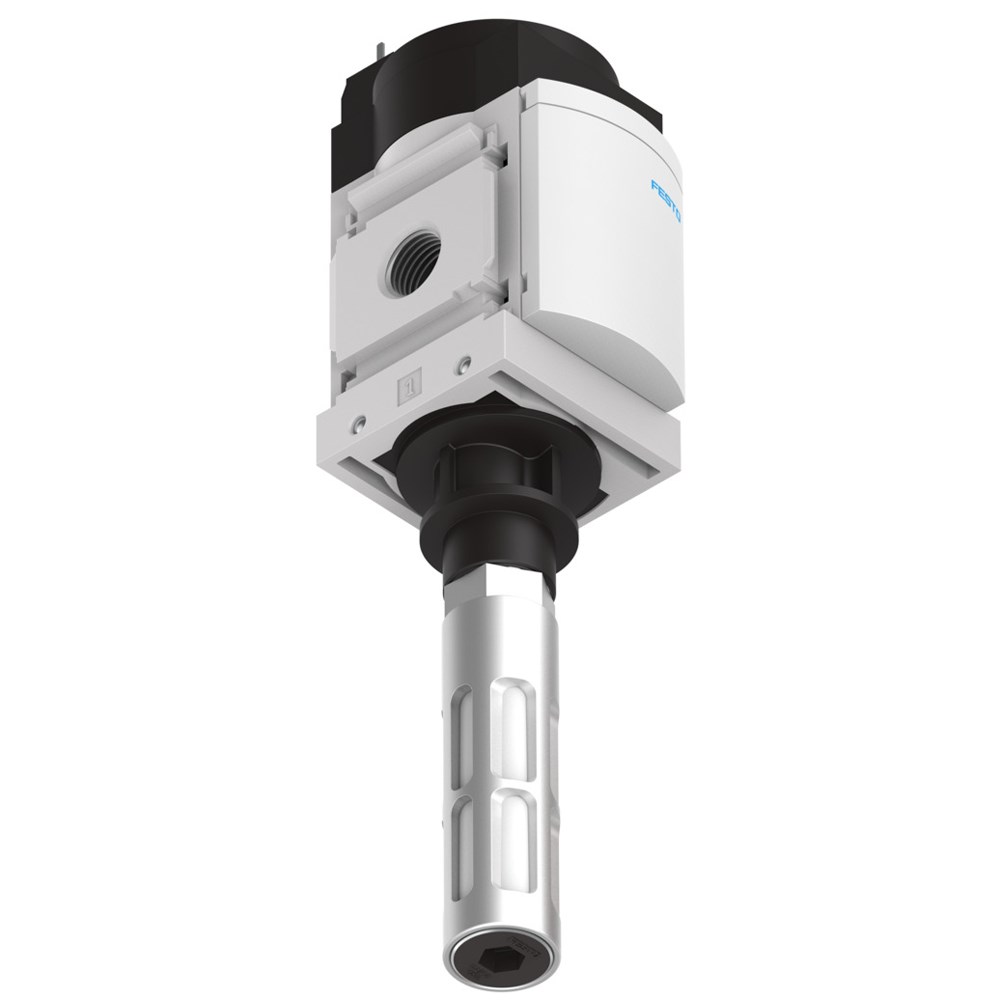

FESTO Solenoid 1/2" Port 24VDC – MS6-EE-1/2-10V24-S
This electric piston gate valve with integrated silencer provides reliable on/off control for high-flow pneumatic systems. Pilot-actuated and monostable, it supports in-line installation and offers robust, corrosion-resistant construction suitable for industrial and food-safe applications.
Features
- Electric actuation with mechanical spring reset

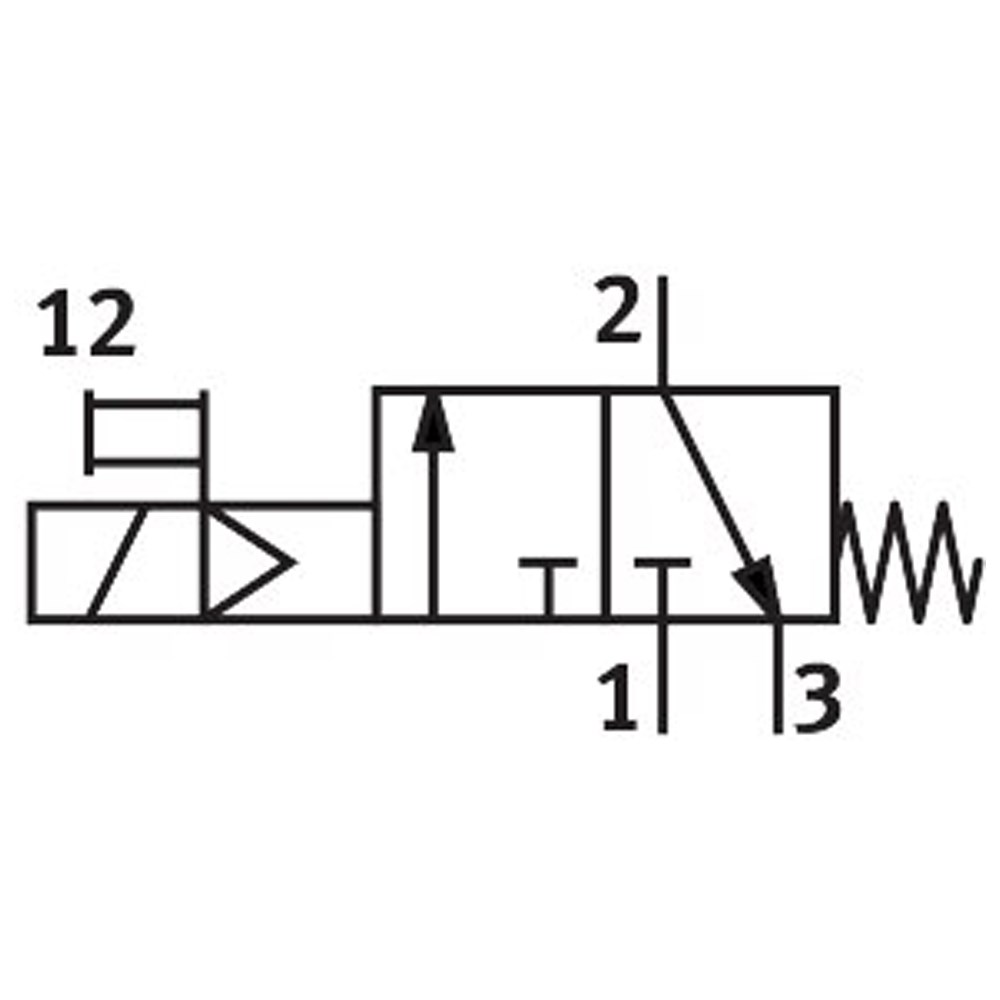

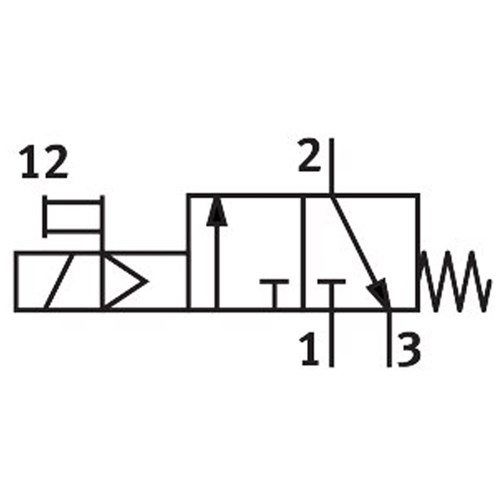

- 3/2-way, closed, monostable valve function
- Non-detenting manual override for easy operation
- Integrated silencer for quieter operation
- Non-reversible flow direction
- IP65 protection for safe industrial use
- RoHS compliant
Specifications
- Design: Piston gate valve
- Operating Pressure: 4–10 bar
- Flow Coefficient (C value): 29 l/s·bar
- b Value: 0.4
- Standard Flow Rate: 7000 L/min (DIN 1343)
- Duty Cycle: 100%
- Coil Data: 24 V DC, 2.5 W
- Permissible Voltage Fluctuation: ±10%
- Operating Medium: Compressed air or inert gases (ISO 8573-1:2010 [7:4:4])
- Media & Ambient Temperature: -10°C to 60°C
- Degree of Protection: IP65
- Corrosion Resistance: CRC2 (Moderate)
- Port Sizes: G1/2 (Ports 1–3)
- Pilot Air Supply: Internal
- Electrical Connection: Type C Plug, DIN EN 175301-803, square design
- Seals Material: NBR
- Housing Material: Die-cast aluminium
- Weight: 816 g
- Mounting: In-line with accessories
