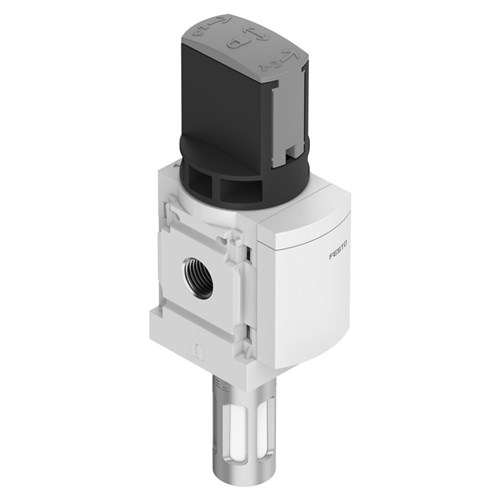

FESTO Solenoid 1/4" Port – MS4-EM1-1/4-S
This manual on/off rotary gate valve with integrated silencer provides reliable control of compressed air in pneumatic systems. Designed for in-line installation, it delivers efficient, non-reversible flow with durable construction suitable for industrial and food-safe applications.
Features
- Manual rotary gate actuation for simple operation

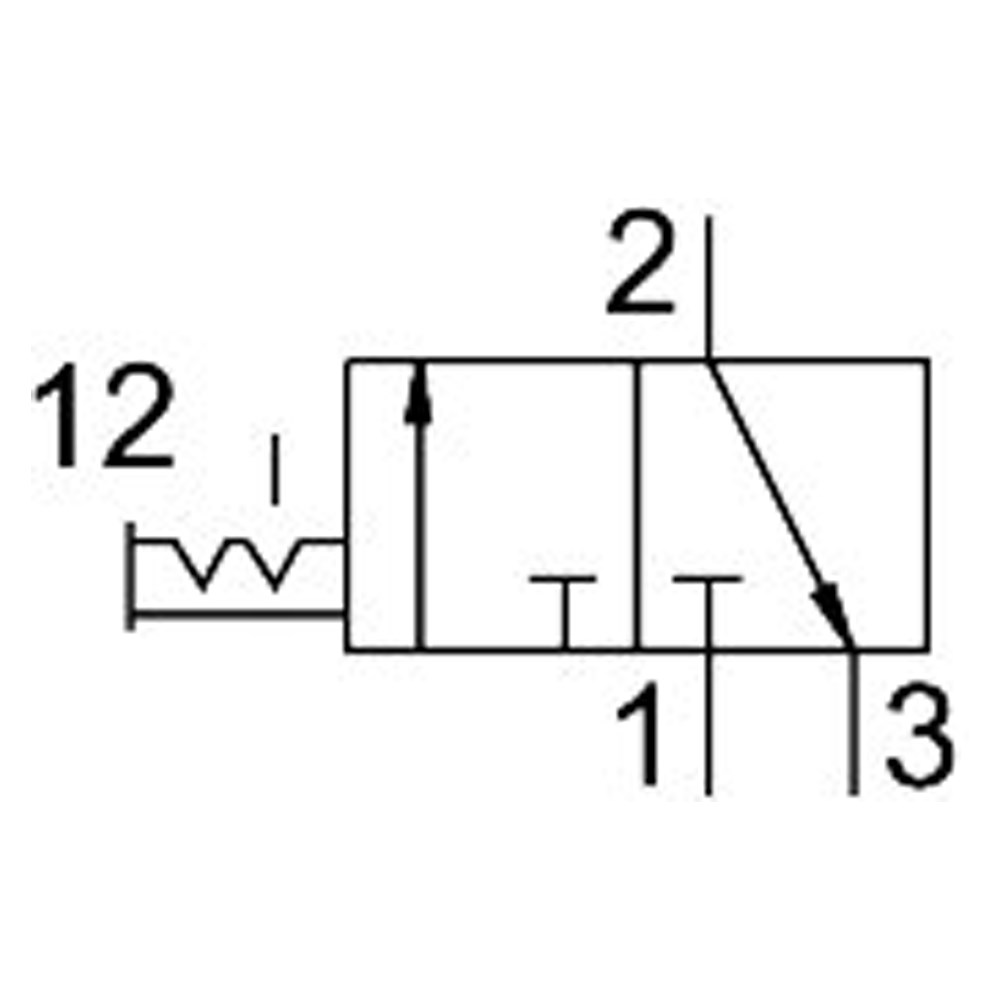

- 3/2 bistable valve function
- Integrated silencer for quieter operation
- Non-reversible flow direction
- Supports in-line mounting and optional orientations
- RoHS compliant
Specifications
- Design: Rotary gate valve
- Type of Actuation: Manual
- Operating Pressure: 0–14 bar
- Flow Coefficient (C value): 9 l/s·bar
- b Value: 0.39
- Standard Flow Rate: 2200 L/min (DIN 1343)
- Operating Medium: Compressed air or inert gases (ISO 8573-1:2010 [7:4:4])
- Media & Ambient Temperature: -10°C to 60°C
- Corrosion Resistance: CRC2 (Moderate)
- Port Sizes: G1/4 (Ports 1–2), Port 3 not ducted
- Seals Material: TPE-U(PU)
- Housing Material: Die-cast aluminium
- Weight: 210 g
- RoHS Compliant
