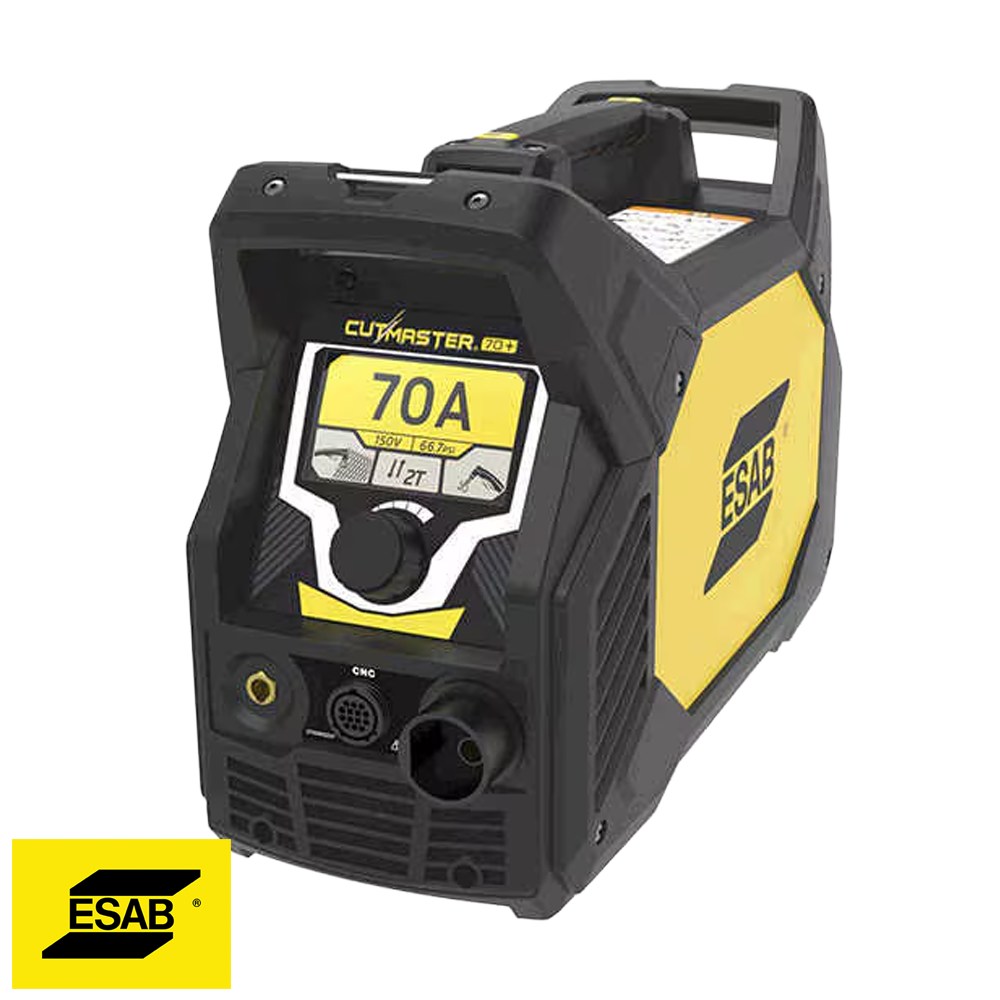

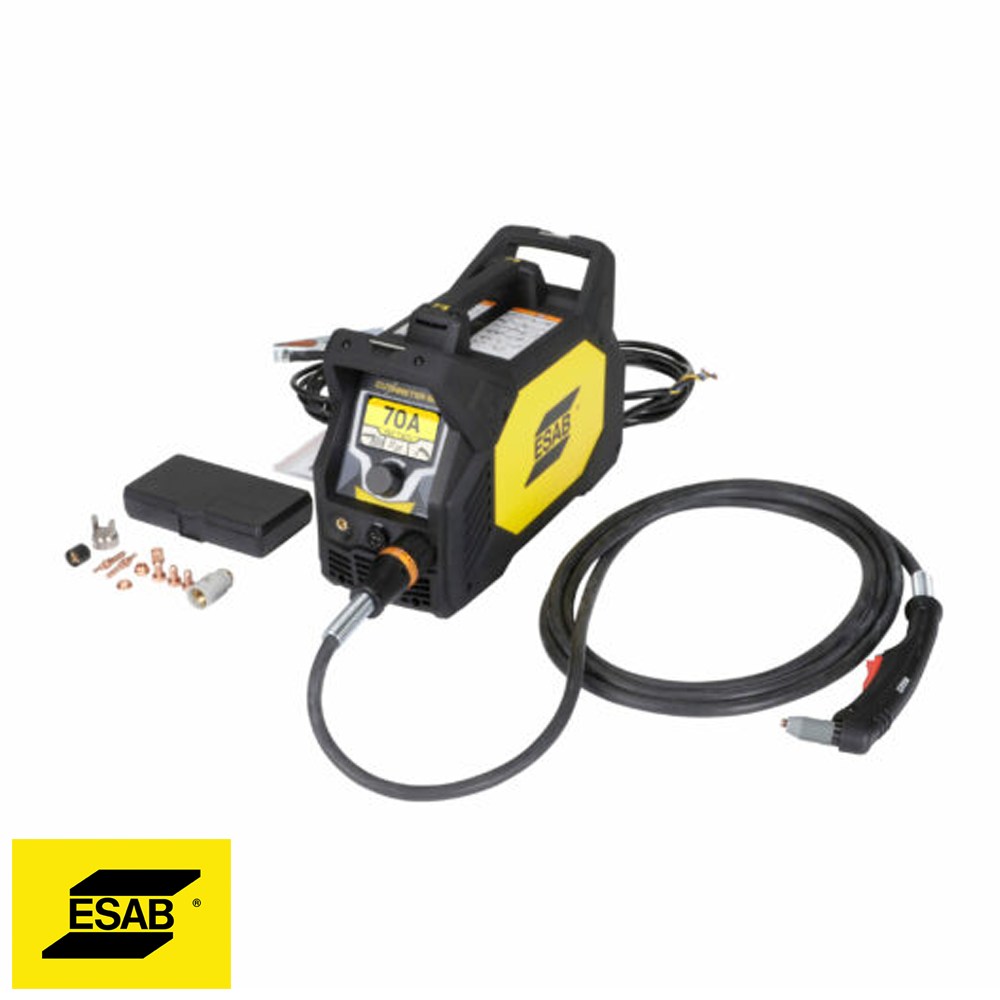

ESAB CUTMASTER 70+ PLASMA CUTTER
The ESAB Cutmaster 70+ combines powerful plasma cutting performance with portability and easy-to-use controls. Featuring a bright 4.3" TFT LCD display, 3-phase 400/415V input and industrial SL60 1Torch, it delivers reliable cutting performance across mild steel, stainless steel and aluminium.
Features
- Portable and durable industrial housing with three handles
- 4.3" TFT LCD display with glove-friendly adjustment knob
- 400/415V 3-phase input power
- Industrial SL60 1Torch with 2T/4T function and safety trigger lock
- Normal and grate cutting modes
- Post-cut air purge to extend consumable life
- Cutmaster Black Series consumables included
- CNC functionality with pre-installed 14-pin CPC receptacle and voltage divider
- 3-year power supply warranty and 1-year torch and leads warranty
Specifications
- Brand: ESAB
- Process: Plasma Cutting
- Usage: Industrial
- Material: Mild Steel, Stainless Steel, Aluminium
- Amperage Output: 15–50A, continuously adjustable
- Recommended Cut Capacity: Up to 38mm
- Regular Hand Cutting Capacity: 25mm*
- Duty Cycle: 60% @ 50A, 100% @ 40A
- Input Voltage: 400VAC ±15%, 50/60Hz, 3 Phase
- Generator Requirement: 12kW
- Input Power: 400VAC ±15%, 15A
- Power Cable: 3m, 4.0mm², without plug
- Work Lead: 3m, 10mm² work cable with 25mm² connection
- Gas Requirement: Clean, dry compressed air
- Operating Temperature: -10°C to +50°C
- SL60 Torch Duty Cycle: 100% @ 60A with 165 L/min air flow
- Dimensions: 465L x 200W x 315H mm
- Warranty: 3 Years + 6 Months Extended
