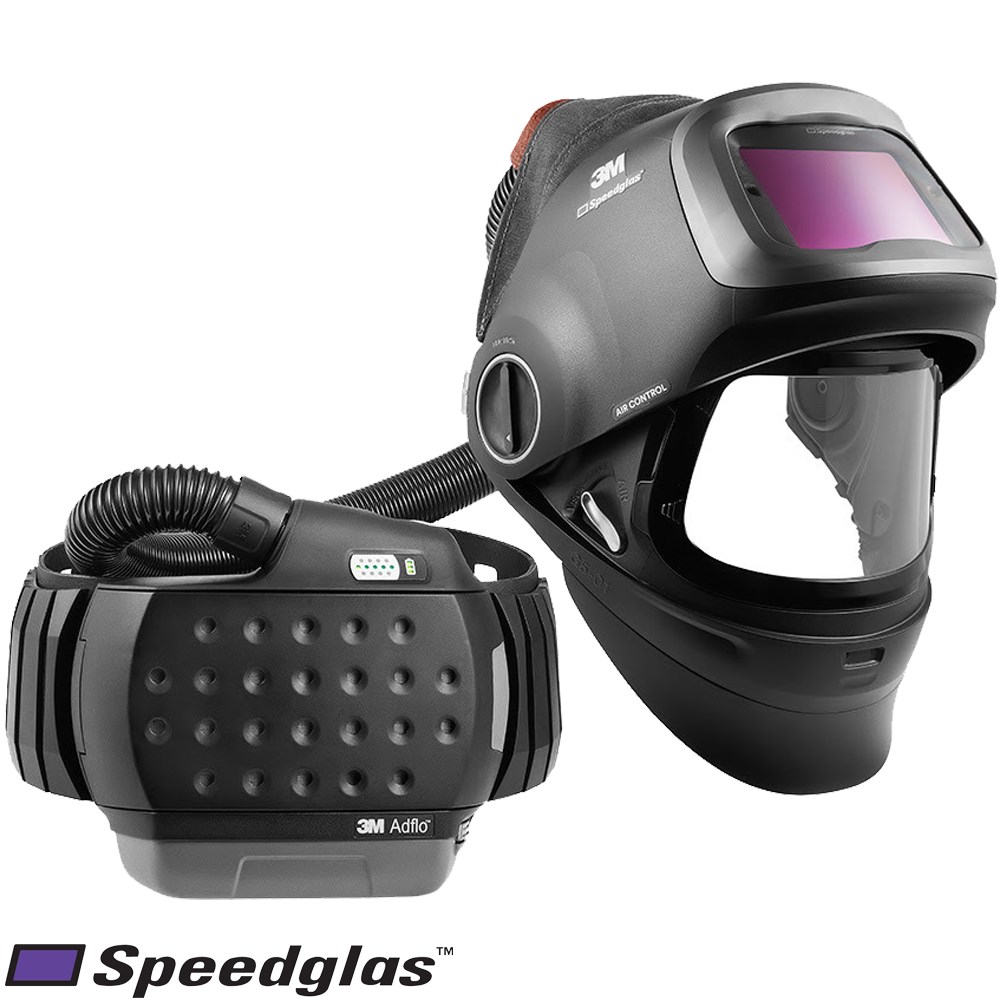

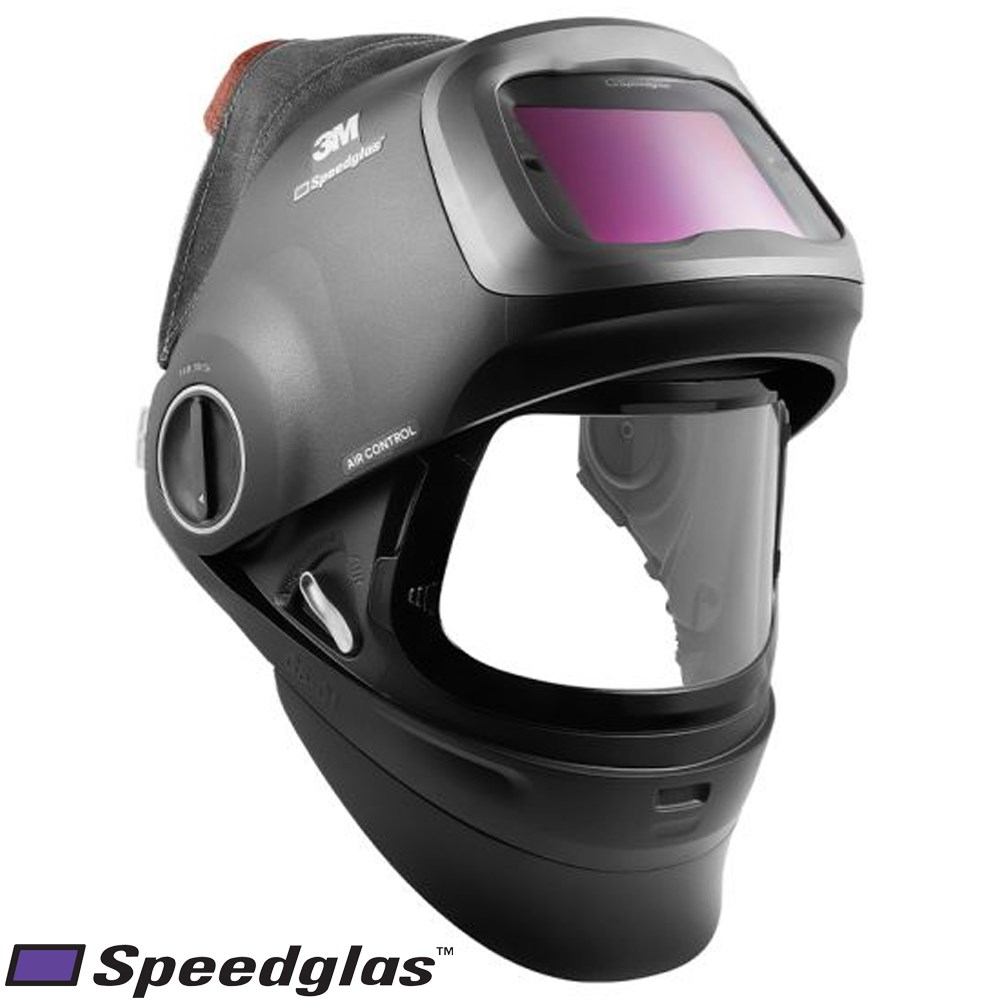

3M Speedglas Welding Helmet G5-01TW with Heavy Duty Adflo Powered Air Purifying Respirator (PAPR)

Based on extensive input from welders working at high amperages who need to grind frequently, the 3M™ Speedglas™ Heavy-Duty Welding Helmet G5-01 Series is created to be adaptable to an individual’s needs and situation.

This is a feature-packed, upgraded version of the hugely popular 3M Speedglas 9100 FX Air, with a stack of new technology.

Benefit from a larger viewing area with superior optics and a 15% larger clear grinding visor, airflow climate control, 50% longer battery run time and improved comfort. With Bluetooth lens technology, extra protection options and an optional task light – the G5-01TW must be tried to be believed!

Features

• Protection from Welding Fume - A new comfort face seal carefully provides an effective positive pressure respiratory seal
• Removable Welding Shield - for extended periods of non-welding, users can easily detach the welding visor – helping reduce the helmet weight by over 35%
• Larger Views – a massive 73 x 109mm viewing area lets you view your welds with even greater clarity!
• Superior Optical Quality - with Speedglas True-View technology literally changing the way welders see, what you see through the lens appears more detailed, lighter and colourful
• Smoother Dark to Light Transition - using an intermediate shade 5 light state to help minimise eye strain during extended tack welding applications. If an arc is not struck within 2 seconds the welding lens will switch back to its TrueView light state (shade 3).
• Climate Control Under The Hood - an innovative helmet duct system lets you control the direction and amount of airflow coming into the helmet, for ultimate comfort
• Bluetooth Connectivity and Memory Modes - with Bluetooth technology, the welding lens allows you to seamlessly change lens settings from the palm of your hand – all while keeping your respiratory protection in place. You can also program up to four memory modes for easy switching
• All Welding Applications with Multiple Modes - Shades 3, 5, 8, 9-13 along with multiple mode settings means you can weld, grind, cut and tack, indoors and outdoors – even with a completely hidden arc
• Australian & New Zealand Standards Compliant - complies with Australian & New Zealand Standard AS/NZS1337.1 (high impact face protection), AS/NZS1338.1 (eye protection) and AS/NZS1716 (respiratory protection).
• Magnification Lens Holder - built-in magnification lens holder makes for easy lens attachment, while optimising its position for precision viewing
• Heavy Duty Adflo Powered Air Purifying Respirator (PAPR) - one of the most popular PAPR’s in the world, the Adflo respirator has become synonymous with welder’s respiratory protection. The powerful Adflo motor provides increased comfort and safety for all day welding

View download document for all features.

Specifications

• Stick Welding: Yes
• MIG Welding: Yes
• TIG Welding: Yes (industry leading detection down to 1 Amp)
• Grinding Feature: Large Clear Grinding Visor 170 x 104mm (Flip-Up)
• Memory Mode (Set-and-Forget) : Yes - 4
• Side Window Peripheral Vision: No
• Hidden Arc Mode: Yes
• Welding Lens Viewing area: 73 x 109mm
• Auto Darkening Lens Classification: 1/1/1 & TrueView
• Variable Dark Shades: Shade 5, 8, 9-13
• Adflo Battery Run Time: 12 hours
