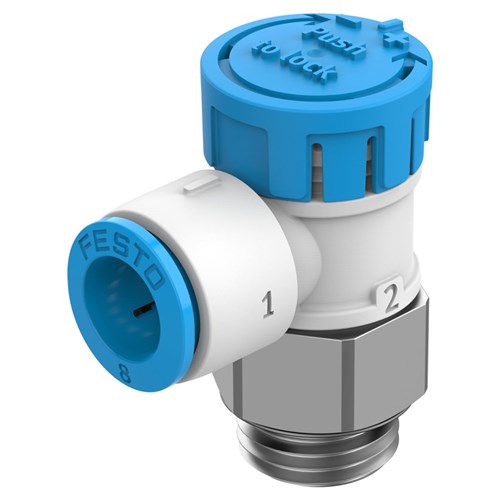

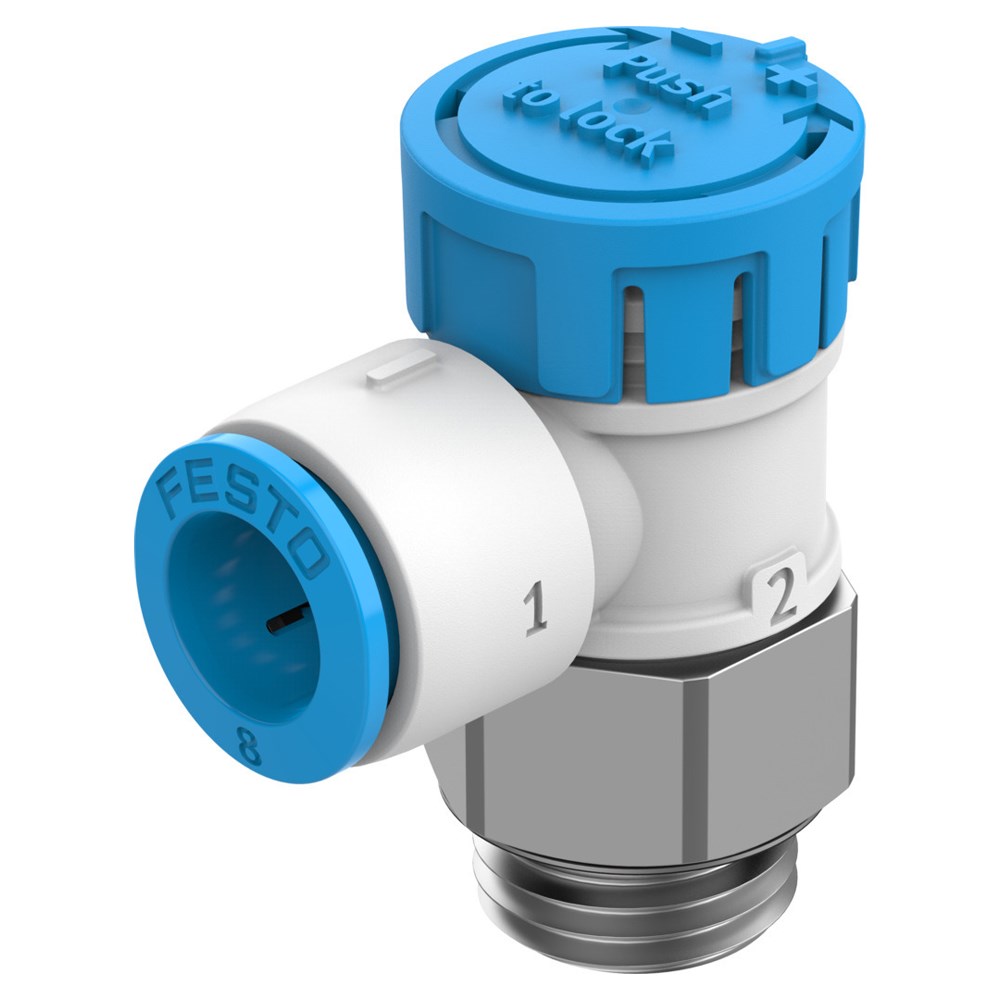

FESTO Flow Control Valve 8mm – VFOE-LE-T-G14-Q8
This 8mm one-way flow control valve provides precise control of exhaust air for pneumatic systems. With a manual rotary knob adjustment, screw-in mounting, and compatibility with ATEX and cleanroom environments, it delivers reliable, flexible performance across a wide range of pressures and temperatures.
Features

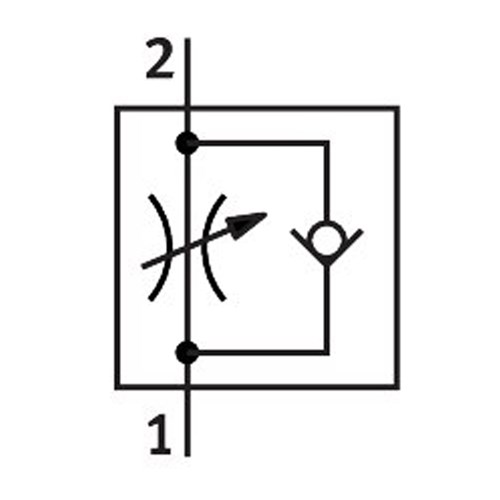

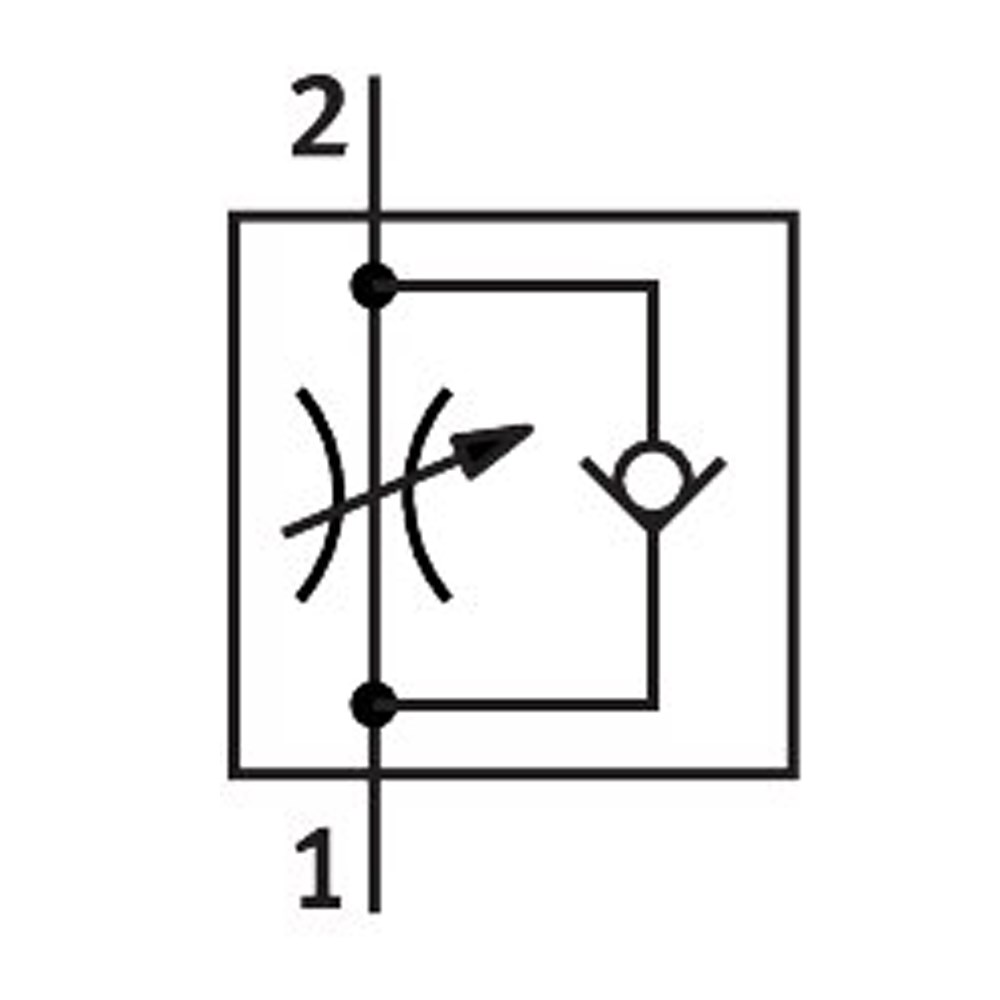

- Exhaust air one-way flow control function
- Manual adjustment with rotary knob detent
- Screw-in mounting, optional installation position
- 360° rotatable without continuous swiveling
- Cleanroom class 4 (ISO 14644-1)
- ATEX explosion protection Zones 1, 2, 21, 22
- RoHS-compliant materials
Specifications
- Pneumatic Connection: Port 1 QS-8, Port 2 G1/4
- Operating Pressure: 0.02–1 MPa (0.2–10 bar / 2.9–145 psi)
- Flow Rate, Control Direction: 500–810 l/min depending on pressure
- Flow Rate, Blocked Direction: 370–900 l/min depending on pressure
- Ambient & Media Temperature: -10°C to 60°C
- Housing Material: PBT, Cover: PBT
- Dynamic Seals: HNBR, Static Seals: NBR
- Threaded Bolt Material: Galvanised Steel
- Release Ring Material: PBT
- Maximum Tightening Torque: 12 Nm, Nominal Torque: 10 Nm ±20%
- Width Across Flats: 16 mm
- Product Weight: 16 g
