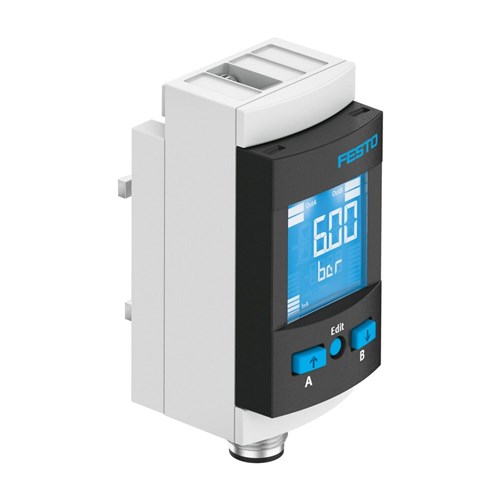

FESTO LCD Pressure Sensor – SPAU-P10R-MS4-F-L-PNLK-PNVBA-M
This MS4 Series LCD pressure sensor delivers precise, programmable measurement and monitoring of relative pressure in pneumatic systems. Featuring IO-Link communication, multiple output options, and an illuminated display, it provides reliable, high-accuracy performance in industrial and food-safe applications.
Features
- Piezoresistive pressure measurement for accurate readings
- Programmable switching outputs (2 x PNP/NPN) with freely selectable functions
- Analog outputs: 0–10 V, 4–20 mA, 1–5 V
- Illuminated LCD display with multiple units (MPa, bar, psi, etc.)
- IO-Link communication with Smart Sensor profile for diagnostics and configuration
- Tamper protection via IO-Link PIN code
- Compact, corrosion-resistant design suitable for moderate corrosion environments
- RoHS compliant
Specifications
- Measured Variable: Relative pressure
- Pressure Range: 0–10 bar (0–145 psi)
- Overload Pressure: 15 bar (217.5 psi)
- Operating Medium: Compressed air or inert gases (ISO 8573-1:2010 [7:4:4])
- Media & Ambient Temperature: 0°C to 50°C
- Accuracy: ±1.5% FS, Repetition Accuracy: ±0.3% FS
- Resolution: 12-bit ADC, Temperature Coefficient: ±0.05 %FS/K
- Switching Output Current: Max. 100 mA
- Rise Time: 3 ms
- Load Resistance: 500 Ω (current output), ≥10 kΩ (voltage output)
- Protocol: IO-Link, Device V1.1, COM2 (38.4 kBaud), SIO-Mode supported
- Electrical Connection: M8x1, A-coded, 4-core, DC 20–30 V, reverse polarity protected
- Mounting: On service unit, optional position

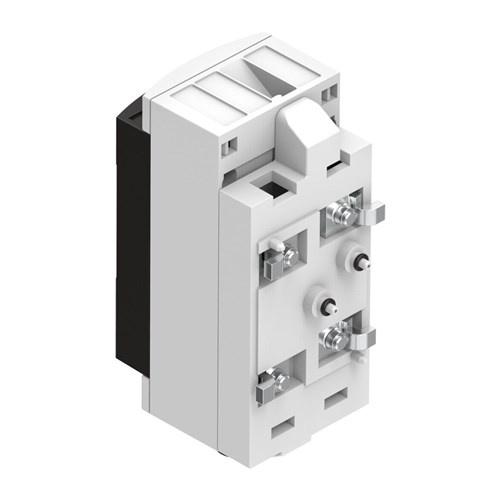

- Pneumatic Connection: Flange
- Display Type: Illuminated LCD, units selectable (MPa, bar, psi, inHg, kPa, mmHg, etc.)
- Degree of Protection: IP65
- Corrosion Resistance: CRC2 (Moderate)
- Weight: 80 g
- RoHS Compliant
