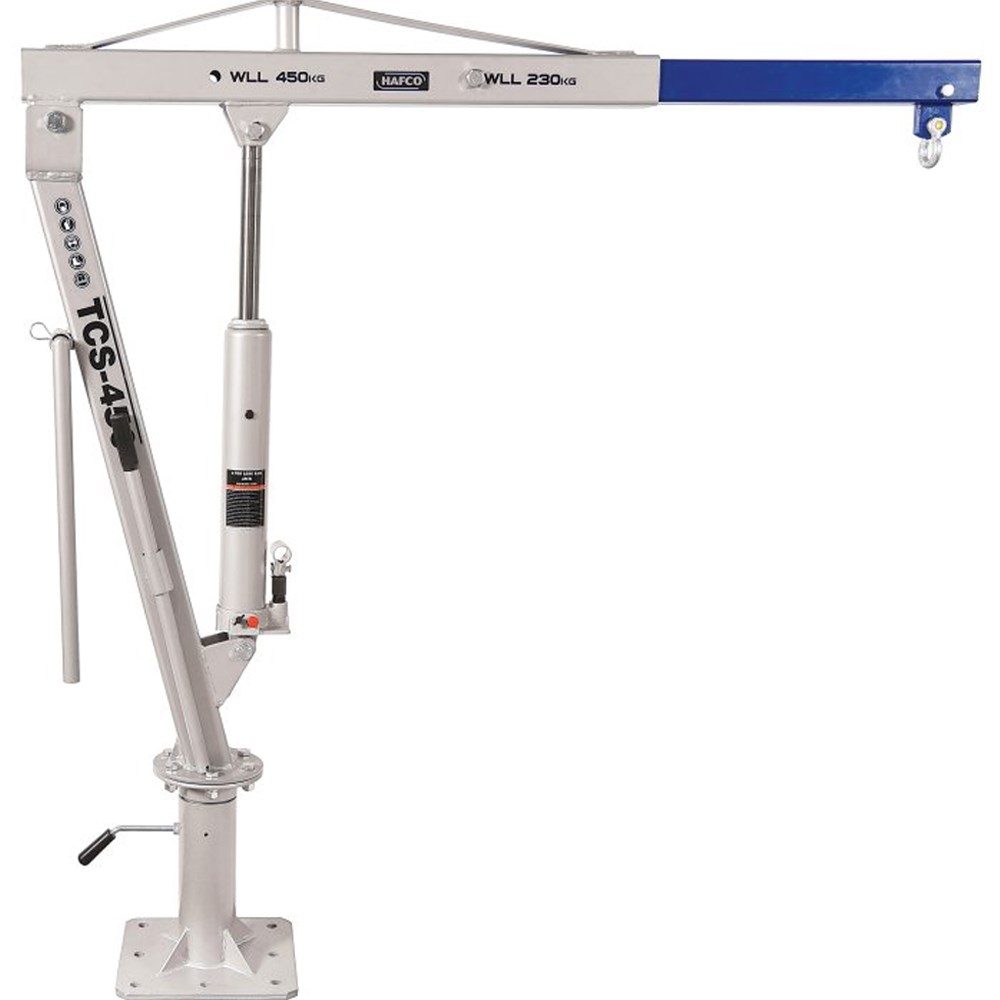

TCS-450X Swivel Truck Crane
The TCS-450X Swivel Crane is the ultimate heavy-duty lifting solution for your truck or ute. Built to handle tough jobs, this crane boasts an impressive 450kg lifting capacity and offers a versatile 360° rotation for maximum maneuverability. Whether you're hauling, lifting, or positioning heavy loads, the TCS-450X delivers superior performance with reliable strength and flexibility for all your heavy lifting needs.
Features
- Heavy-Duty Construction: Engineered for tough, demanding tasks.
- 450kg & 230kg Lifting Positions: Versatile capacity at two positions for different lifting needs.
- Manual Hydraulic Pump: Smooth, reliable operation with a manual pump for efficient lifting.
- 360° Continuous Rotation: Full rotation capability for easier load handling.
- Load-Rated Bow Shackle: Includes a strong, reliable shackle for secure lifting.
- Compact Storage: Folds to a height of just 1350mm for easy storage.
- Telescoping Boom: Two-position telescoping boom for varied lifting capacities—450kg at 1015mm and 230kg at 1385mm.
- Lifting Height: Reach up to 1900mm from base to lifting shackle.
Specifications
- Single Line Lifting Capacity: 450kg
- Lifting System Type: Hydraulic - Manual
- Lift Capacity Pin Locations: 450kg & 230kg
- Vertical Support Dimensions: 70mm x 70mm
- Extension Arm Support Dimensions: 70mm x 70mm
- Hydraulic Ram Capacity: 3 Tonne
- Overall Height (Lowest Position): 1350mm
- Net Weight: 48.5kg
