DIGITAL 1" BSP +/- 0.5% ACC INLINE OR GRAVITY FEED

Product Code: ADTFM

Product Detail
Downloads

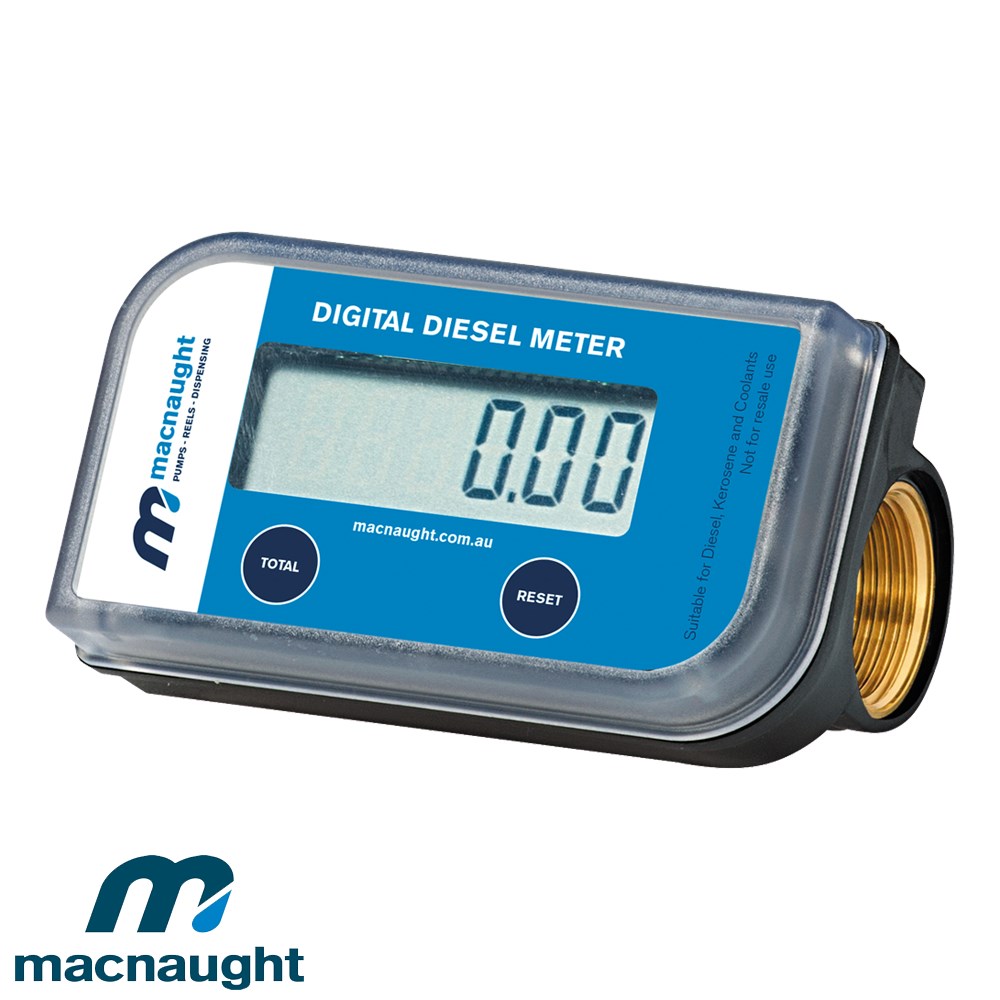

Macnaught ADTFM Digital Flow Meter is perfect for the accurate measurement of Diesel, featuring an electronic display, unique turbine design, pump or gravity feed installation and 180 degree rotation option for a maximum flow rate of up to 150 Litres per minute.

The Digital Flow Meter can be calibrated and provides the operator with an option to reset batch totals.

Includes a 5 year warranty.

Technical Specifications:

Flow rate 10 - 150LPM
Suitable for diesel, kerosene and coolants
Inlet/Outlet: 1"BSP
Maximum working pressure 50psi (3.5bar)
6 digit reset total
6 digit non-reset total
Register can be rotated (180 degrees)
Field calibration capability
