1" BSP MECHANICAL DIESEL 4 DIGIT RESETTABLE

Product Code: AMFM

Product Detail
Downloads

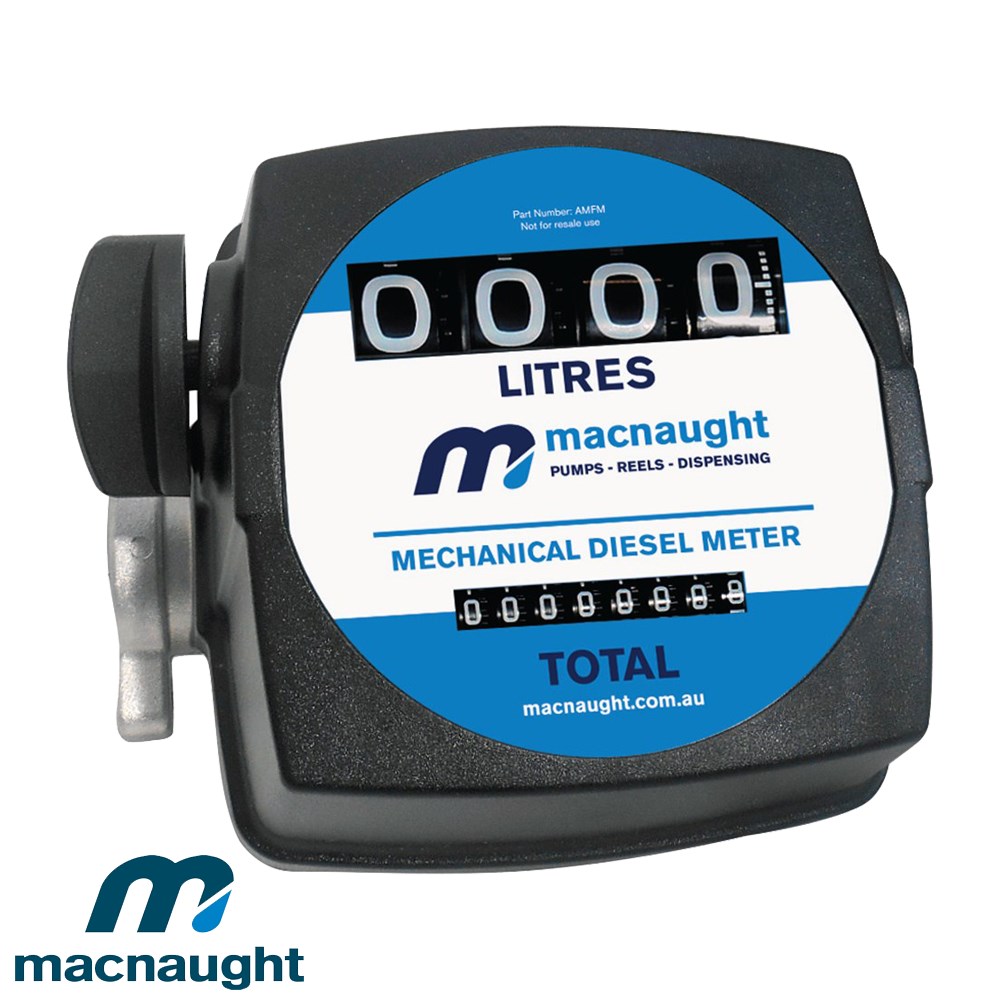

The Macnaught Mechanical Flow Meter is a mechanical nutatung disc meter, for the most accurate measurement of Diesel.

The AMFM meter has two totals available (resettable batch total and non-resettable total) and a flow range is 20-120 Litres per minute. It is suitable for diesel, kerosene and light oils.

Suitable for use when measuring diesel in either pumped or gravity feed installation.

Techical Specifications:

Flow range 20 - 120LPM
Suitable for diesel, kerosene and light oils
Inlet/Outlet - 1” BSP (F)
Nutating disc
Maximum working pressure 50psi (3.5bar)
4-digit resettable total
Register can be rotated (180 degrees)
Field calibration capability
Calibration screw for easy field calibration
