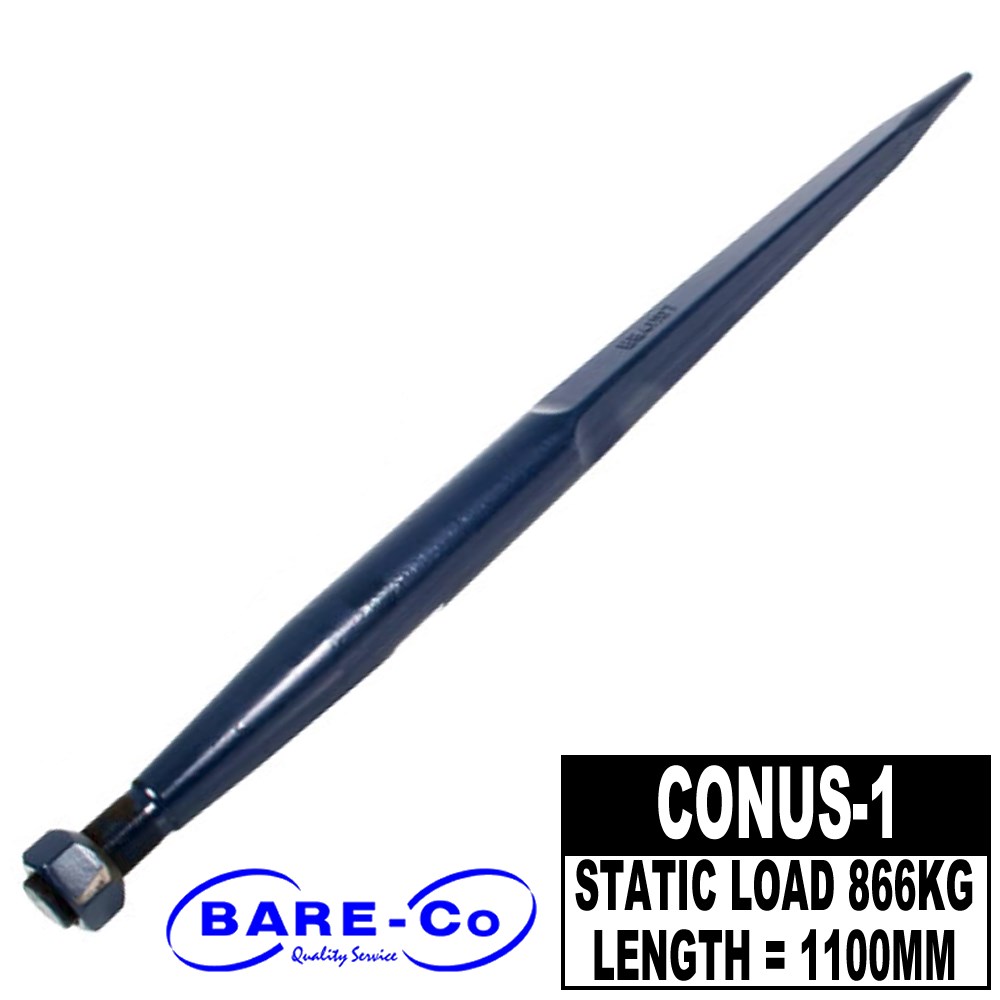

Bare-Co BLUE-LINE Hay Tines manufactured from superior quality alloy steel for increased capacity.
Blue-Line hay tines are forged, heat-treated and powder-coated for superior performance. Manufactured from S60Si7 Alloy Spring Steel with a tensile strength of 1650 N/mm sq. Each tine has a bright machined taper for positive location of the conus bush. Tines are supplied with nut.

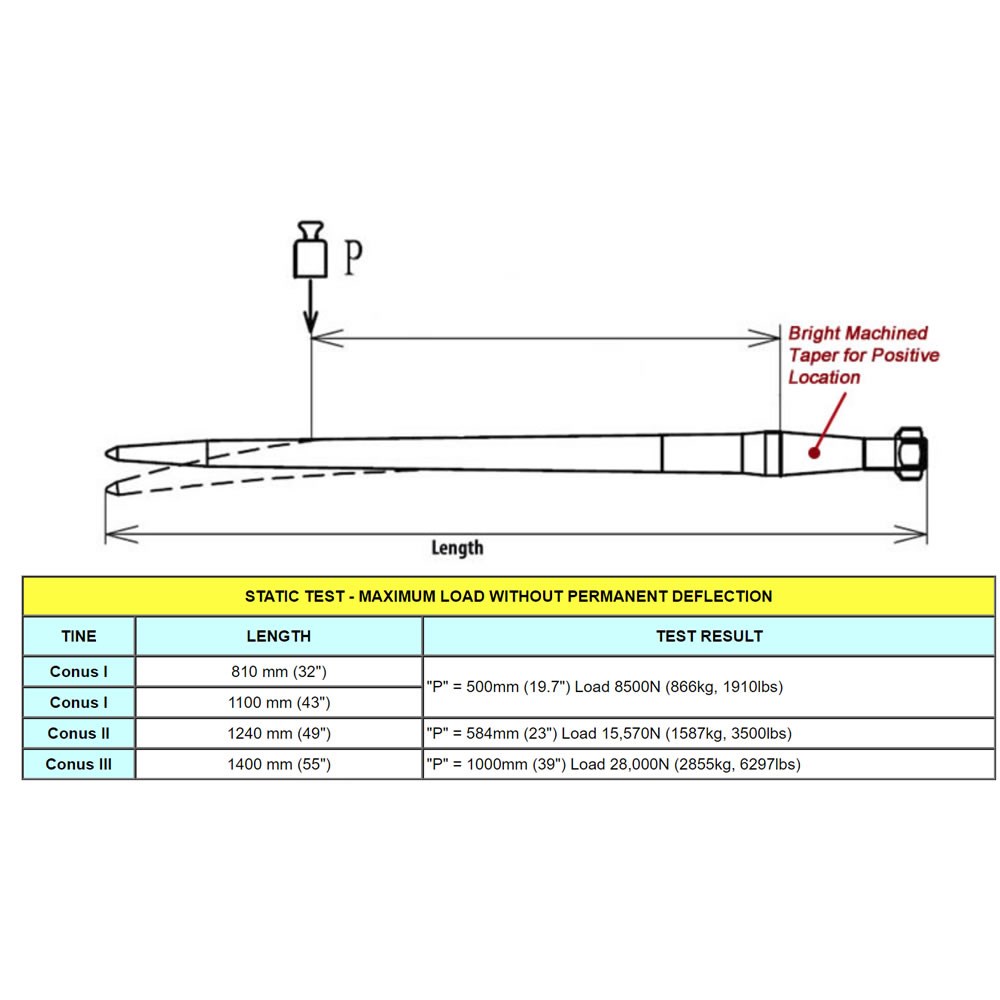

This is a straight tine with a Conus 1 taper. Static test load without permenent deflection is 8500N,866KG,1910Lbs.
- MAX STATIC LOAD = 866kg, 8500n, 1910 Lbs
- CONUS 1 WITH 22MM NUT
- POWDER-COATED
- FORGED AND HEAT-TREATED
- TINE LENGTH 1100MM (43')

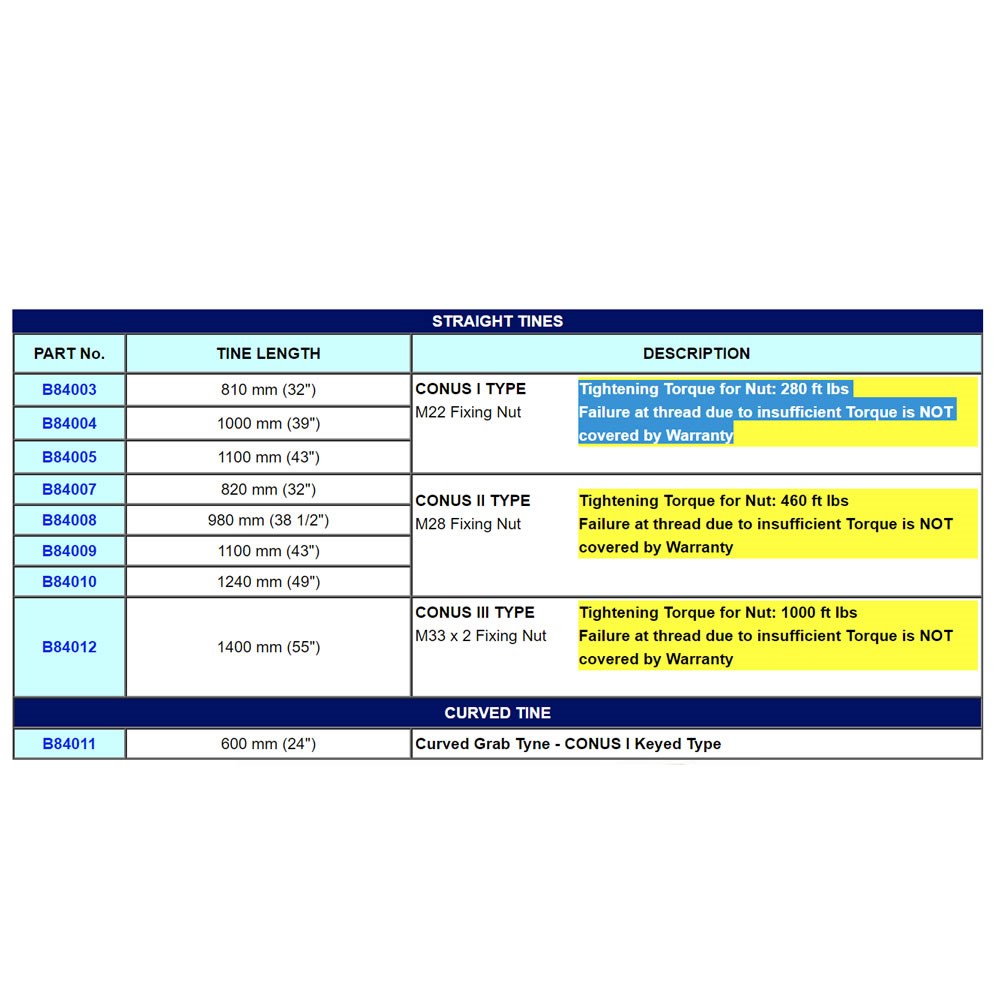

Tightening Torque for Nut: 280ft lbs. Failure at thread due to insufficient Torque is NOT covered by Warranty
