Hay Tynes & Bushes

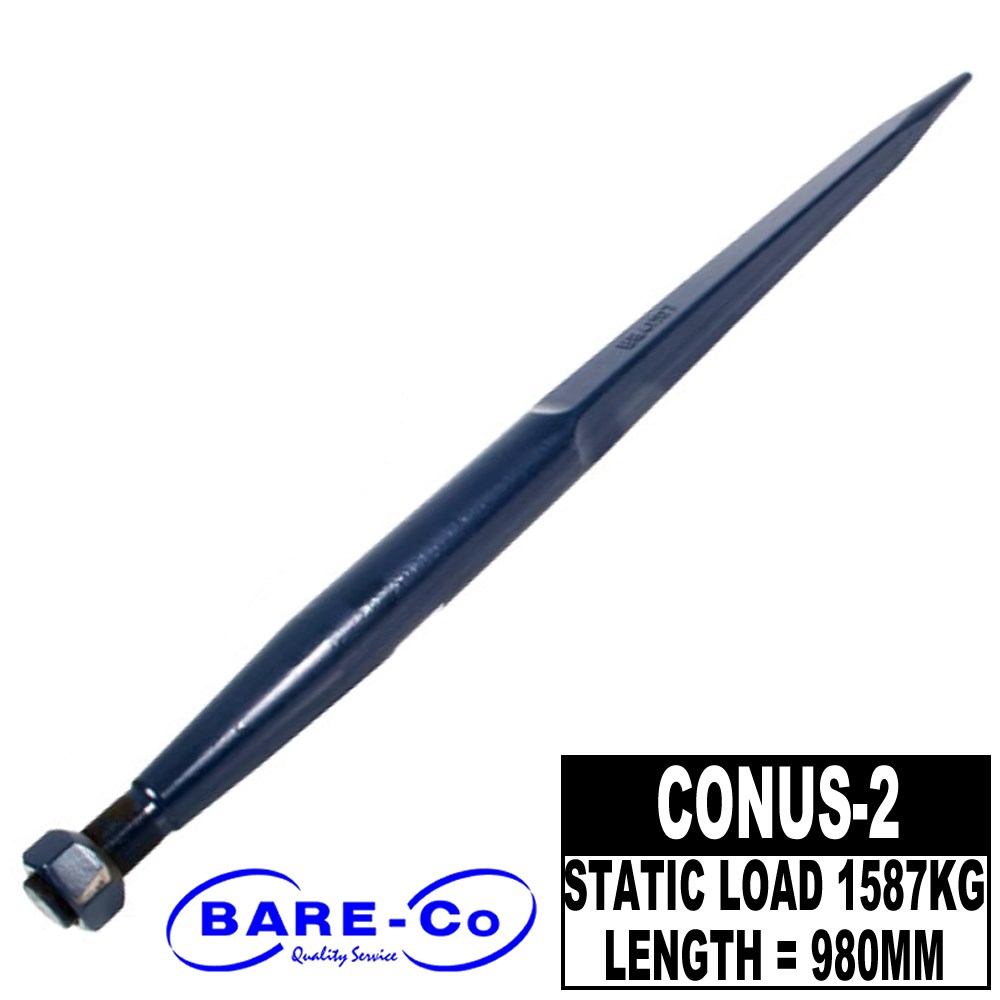

HAY TINE 980MM CONUS-2 M28

STATIC MAX LOAD = 1587KG BALE SPEAR WITH NUT

Product Code: B84008
  $123.50
EACH inc GST
Afterpay Logo
4 payments of $30.88
In Stock Low Stock Contact Us Please See Attributes 5
Increase value Decrease value

  • Detail
  • Parts & Codes

Bare-Co BLUE-LINE Hay Tines manufactured from superior quality alloy steel for increased capacity.

Blue-Line hay tines are forged, heat-treated and powder-coated for superior performance. Manufactured from S60Si7 Alloy Spring Steel with a tensile strength of 1650 N/mm sq. Each tine has a bright machined taper for positive location of the conus bush. Tines are supplied with nut.

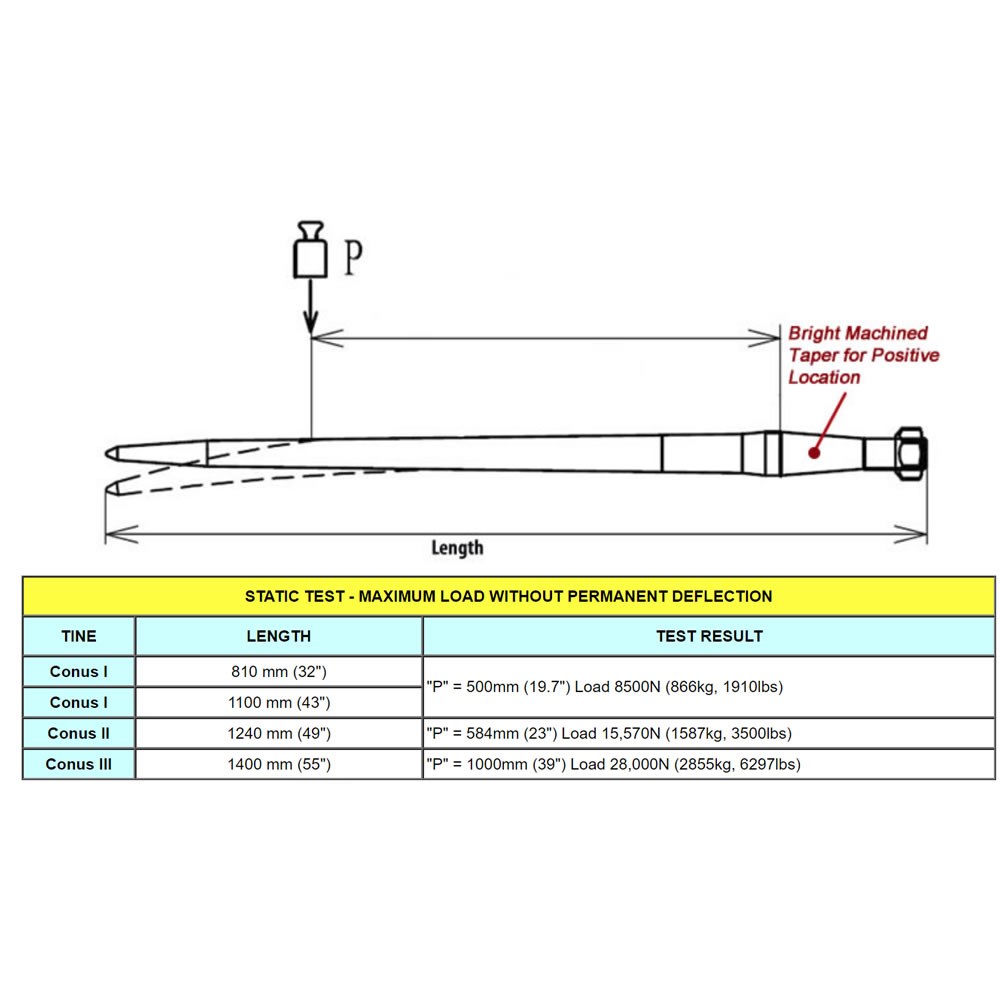

This is a straight tine with a Conus 2 taper. Static test load without permenent deflection is 15570N,1587KG,3500Lbs.

  • MAX STATIC LOAD =1557KG, 15570n, 3500 Lbs
  • CONUS 2 WITH 28MM NUT
  • POWDER-COATED
  • FORGED AND HEAT-TREATED
  • TINE LENGTH 980MM (38 1/2")

Tightening Torque for Nut: 460ft lbs. Failure at thread due to insufficient Torque is NOT covered by Warranty.

BALE SPEAR TYNE
