ICCONS BIS-HY Hybrid Gen2 Injection Adhesive - with 100 Year Design Life
ICCONS BIS-HY Hybrid Gen2 Injection Adhesive is a revolutionary solution engineered for a 100 Year Design Life.
Combining the unmatched strength of epoxy with fast-cure vinylester, it achieves a Fire Rating of F120 (2 hours) and excels in temperatures up to 160°C. Styrene-free and non-sag, BIS-HY offers rapid curing and extreme performance.
Approved for threaded rod and rebar in both cracked and non-cracked concrete, it's the first in Australia to boast Seismic C2 approval for threaded rod. This advanced adhesive system redefines adhesive anchor applications in both professional and DIY settings.
Features
- EXTREME Load Performance
- Fast 30min cure at 20ºC dry concrete
- 100 Year Design Life
- Fast cure characteristics save time and money on the job
- ETA approved for cracked concrete
- Fire resistance approval
- Potable Water approval
- Seismic C1 and C2 approved
- Low VOC for green projects

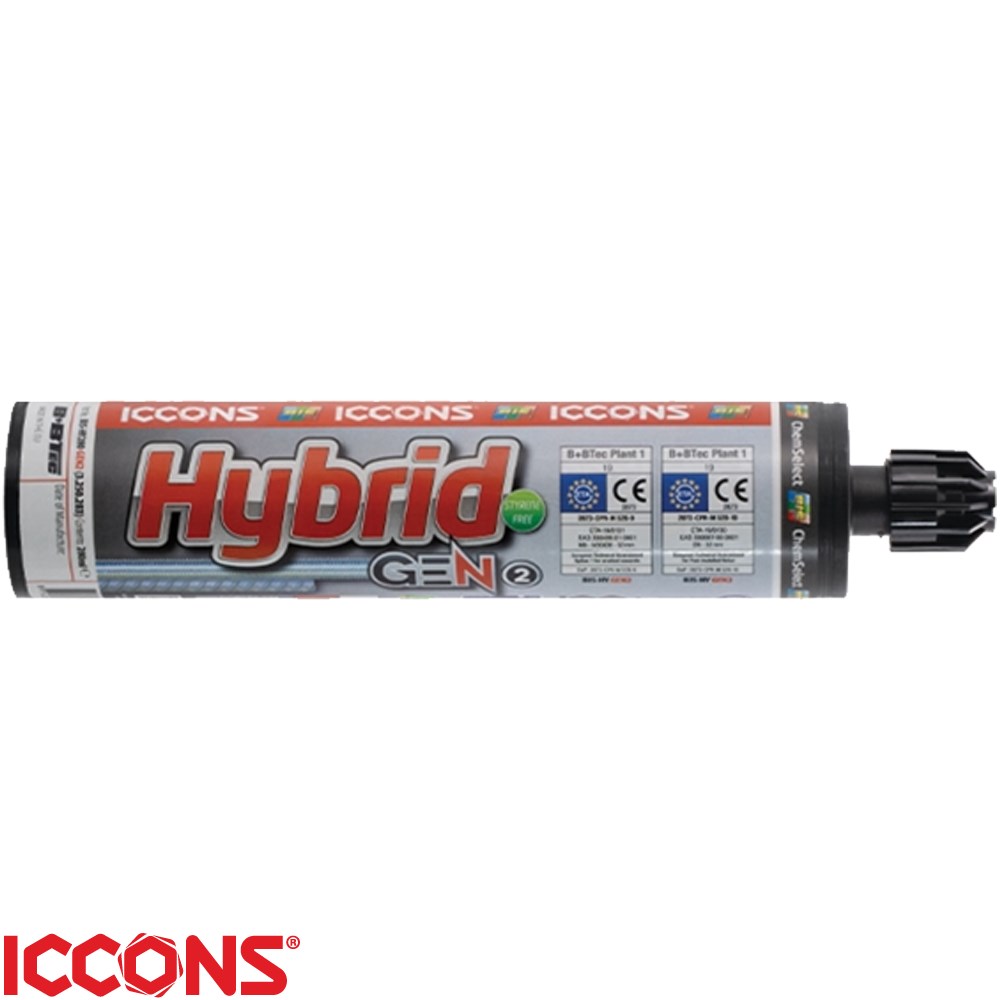

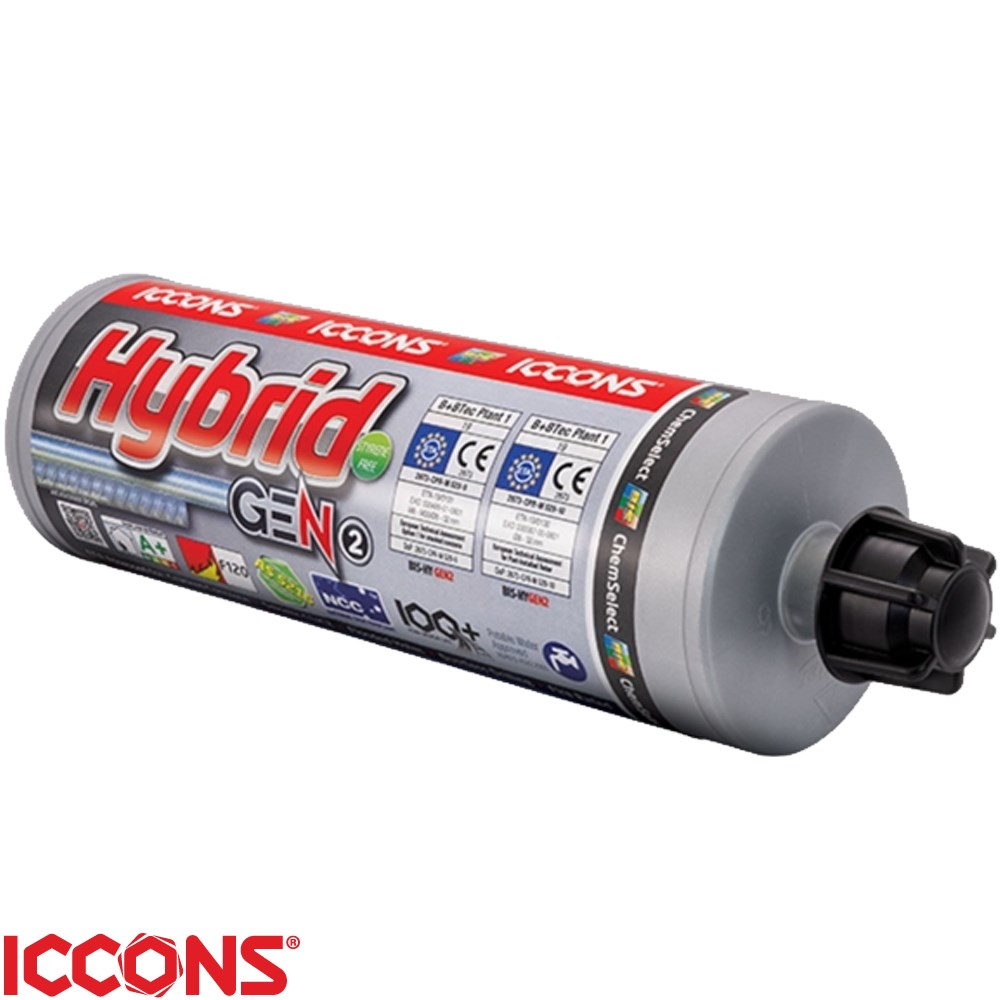

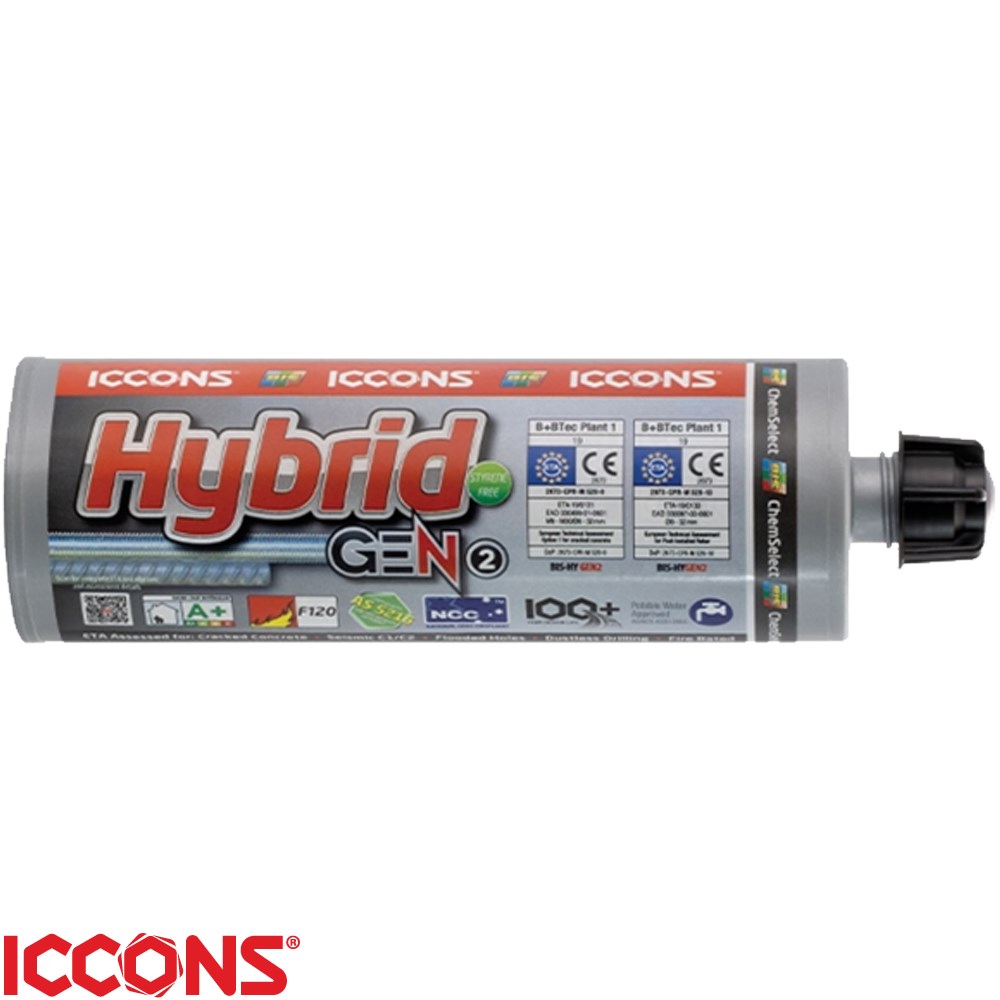

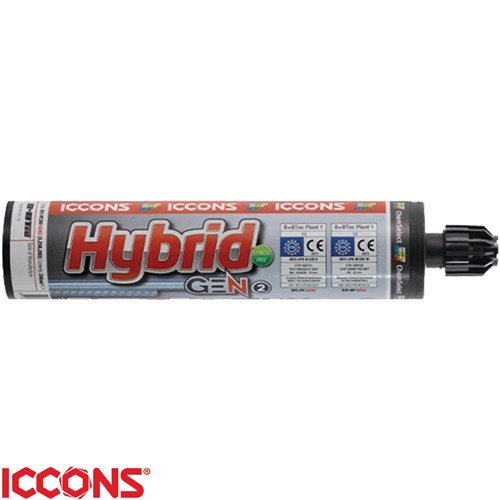

- Available in 280ml or 420ml
Applications
- Infrastructure construction (roads, viaducts, sound barriers, crash barriers, harbours, high rise construction, steel construction)
- Production Facilities (installation of cranes, robots, conveyor lines etc.)
- Suitable for threaded rod and rebar in cracked and non-cracked concrete
Use Conditions
- Installation in cracked and non-cracked concrete C20/25 to C50/60
- For anchor rods M8 – M30, rebar Ø8 – Ø32mm and threaded sleeves M6 – M20
- Seismic action C2: M12 – M24
- For hammer/air drilled holes
- Installation in dry, wet and flooded holes
- Overhead installation allowed
Click here for a project testimonial.
See Tech Data Sheets for more information
