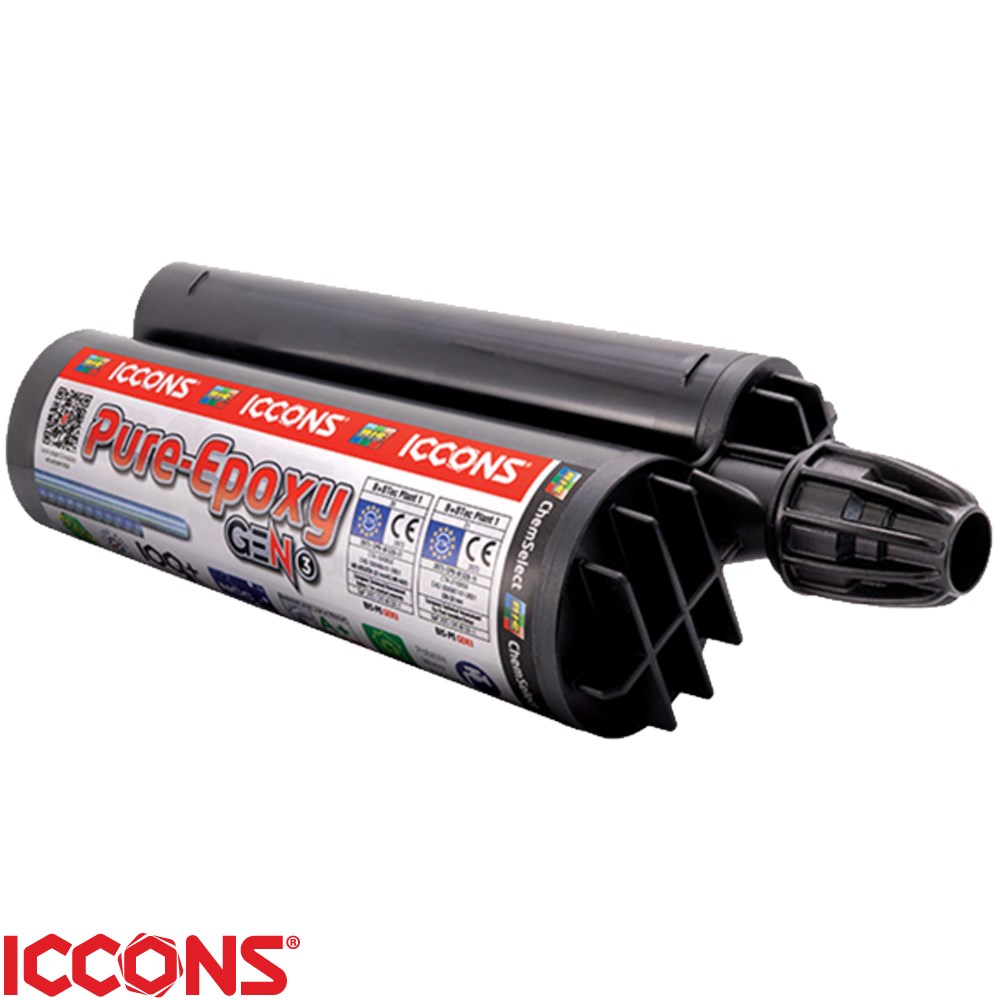

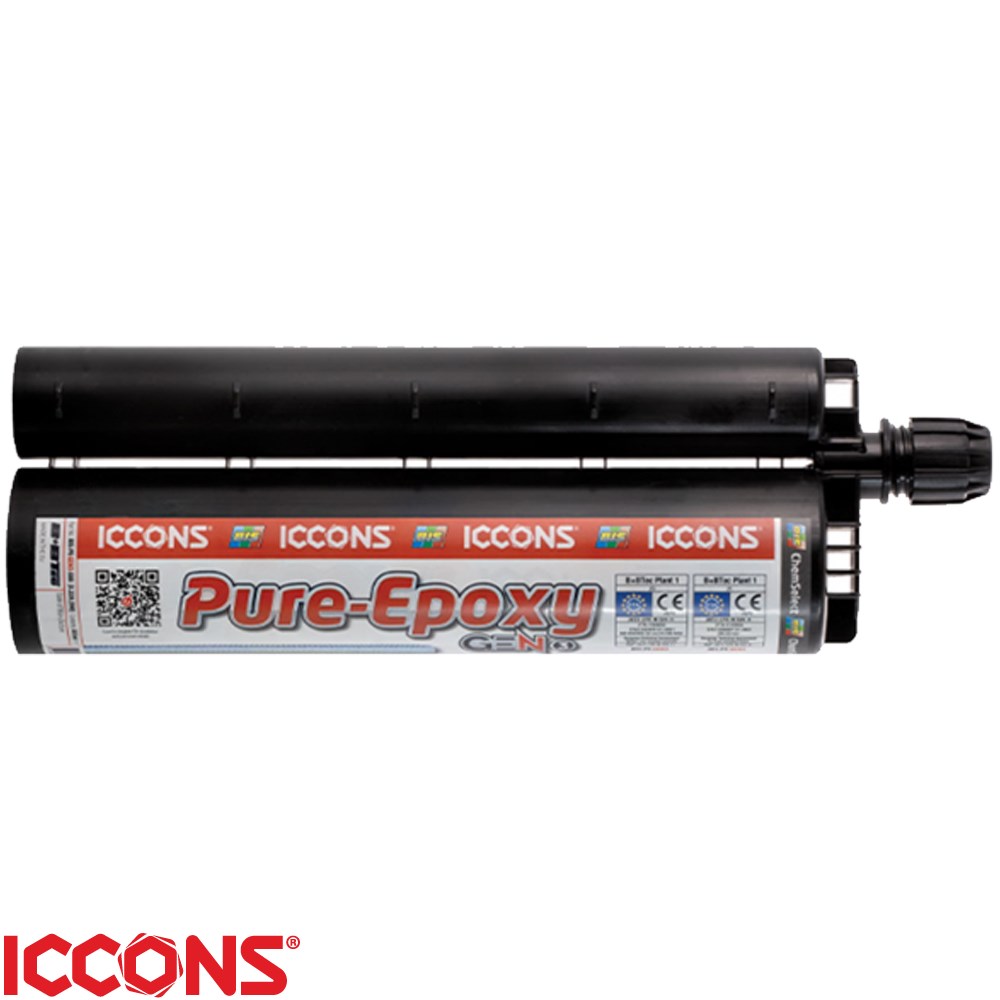

ICCONS BIS-PE Pure Epoxy Gen3 Injection Adhesive - with 100 Year Design Life
Engineered for ultimate performance, ICCONS BIS-PE GEN3 Pure Epoxy represents the pinnacle of adhesive anchoring systems. Approved for a true 100-year design life, it stands out as one of the few adhesive anchors offering unparalleled longevity and reliability.
Designed to tackle a multitude of applications, including fixing threaded rod, rebar, and internally threaded sockets into concrete, BIS-PE GEN3 Pure Epoxy is the ideal choice for major civil and infrastructure projects where design requirements demand a century-long lifespan.
In high-rise commercial construction, where safety is paramount, BIS-PE GEN3 Pure Epoxy shines as the preferred solution for fastening structural steel connections such as beams, columns, sound barriers, balustrades, and facades to concrete, ensuring a secure and long-lasting outcome.
For seismic anchoring and retrofitting needs, whether it's anchoring in seismic zones or retrofitting structures with concrete or post-installed rebar, ICCONS BIS-PE GEN3 Pure Epoxy offers unmatched strength and stability, providing peace of mind for even the most demanding projects.
Features
- EXTREME Load Performance
- Compliant to the National Construction Code 2019
- ETA for 100-year design life in accordance with EAD 330499-01-0601
- Complies to minimum requirements in accordance with AS 5216:2018
- Designed for cracked and non-cracked concrete
- ETA assessed for dry, wet and flooded holes
- For use with hollow drill bits providing dustless solution
- Designed for use in sustained load application i.e. overhead
- Seismic C1 and C2 assessed for threaded rod and reinforcing bar
- Fired Rated
- ICCONS Designfix software available for easy and quick design calculations
Application
- Infrastructure construction (roads, viaducts, sound barriers, crash barriers, harbours, high rise construction, steel construction)
- Production Facilities (installation of cranes, robots, conveyor lines etc.)
For Use In
- Installation in cracked and non-cracked concrete C20/25 to C50/60
- For anchor rods M8 – M30, rebar Ø8 – Ø32mm and threaded sleeves M6 – M20
- Seismic action C2: M12 – M24
- For hammer/air drilled holes
- For hollow drilled holes
- For diamond drilled holes
- Installation in dry, wet and flooded holes
- Overhead installation allowed
See Tech Data Sheets for more information
