A557 6-2/4-2/4-6 4 ROW 96L 48B R65 R75>2007 R66 R76 S SERIES

Product Code: CM015OEMCOCP

Detail
Technical
Interchange
Downloads

AGCO® Gleaner™ Compatible

Feeder House Chains Only Set - Front Chain

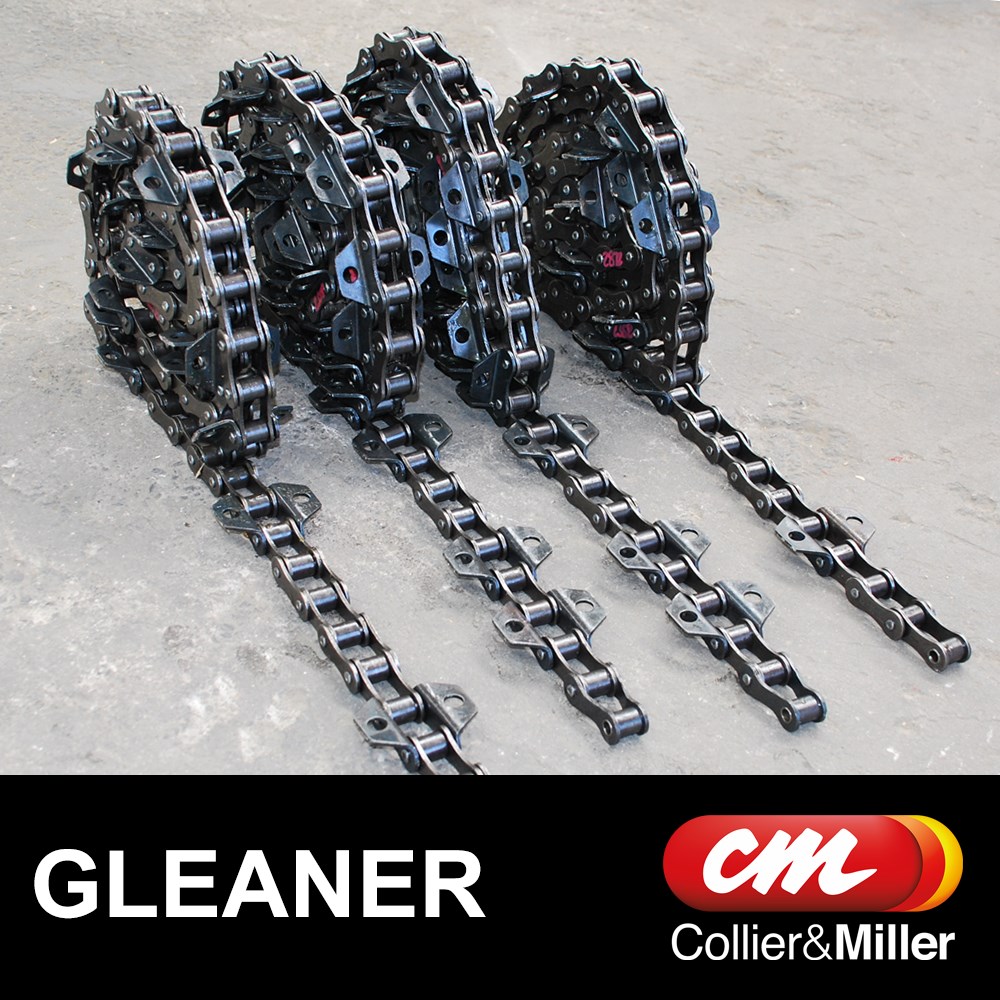

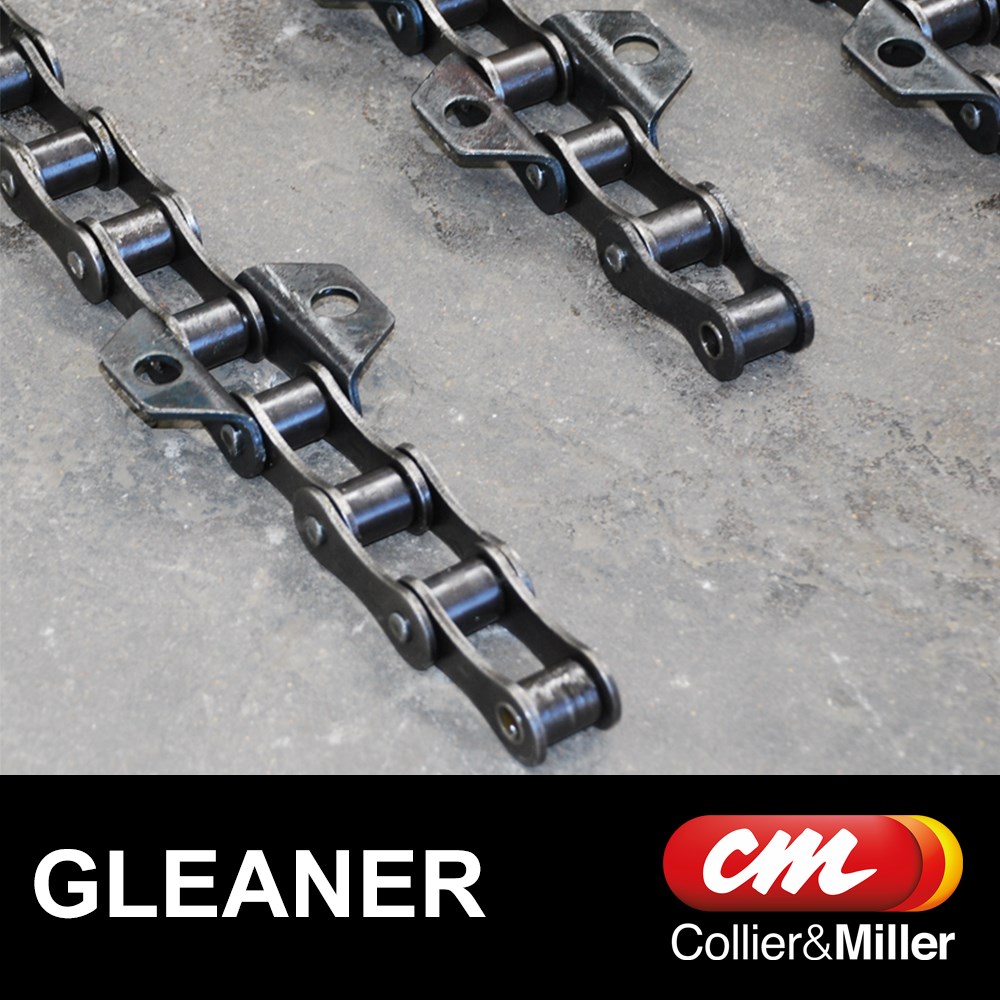

C&M replacement complete feeder house chains only kit to fit the front conveyor on AGCO Gleaner® combine harvesters .This is a set of 4 replacement chains with the same spacing and attachment hole spacing as the original Gleaner® chain.

You can re-chain your assembly using the original Gleaner® slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium chrome-pin chain. We warranty the quality of this kit, however we recommend you fit new sprockets at the time of installation

Part number

71149897 71149898

Series	Models	Serial/Year
AGCO® Gleaner™ R-Series	R65 & R75	EFF FROM SN HS7201
	R66 & R76	ALL

Features

C&M Assembled In Australia
Premium grade chrome-pin chain
4 x Connectors & 8 x Half Links Included
Same spacing as Gleaner® OEM Assembly
No fasteners supplied - reuse your original bolts
Fits Front Feeder Conveyor Elevator

C&M Technical Specifications

Item	Details	Notes
CM015OEMCOCP	Gleaner R65 & R75 EFF SN HS7101 ALL R66 R76	Check serial numbers
Chain Brand	AMEC	Stamped C&M

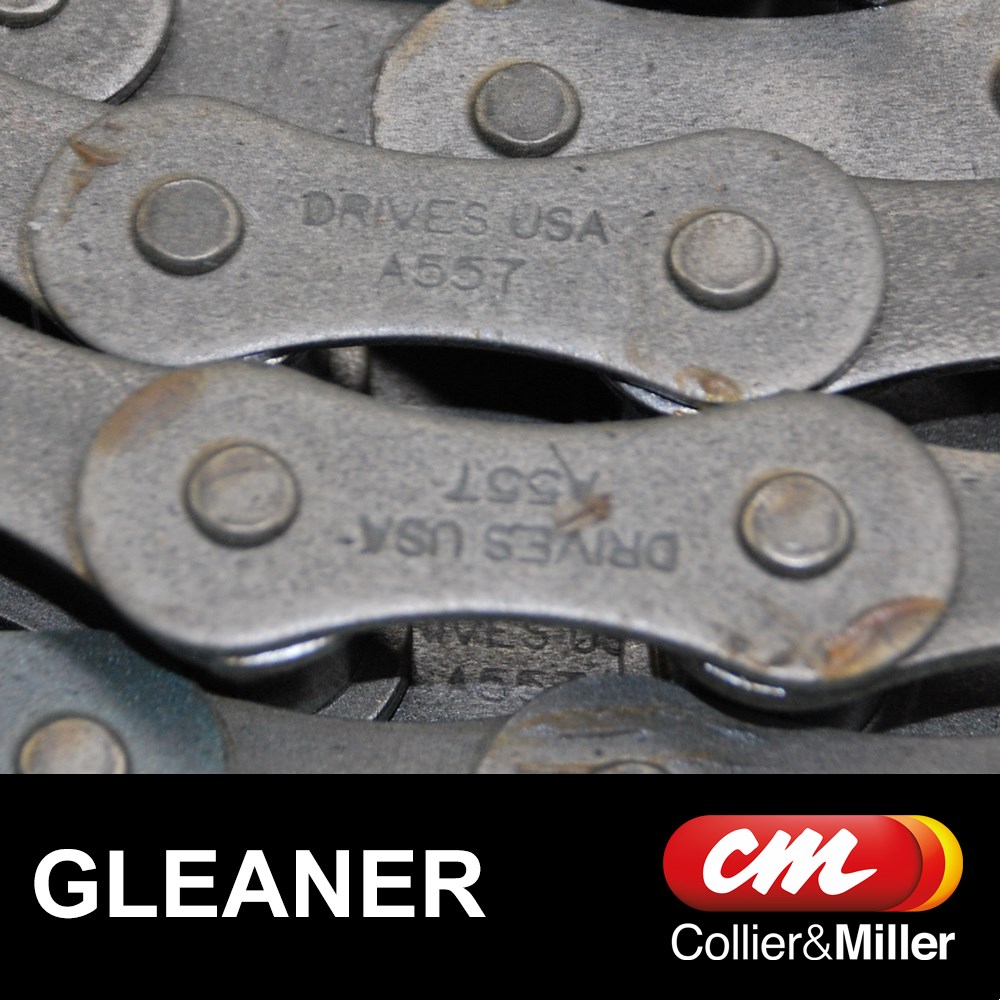

Chain Type	A557	Chrome Pin
Chain Assembly	4 Chain	No Bars

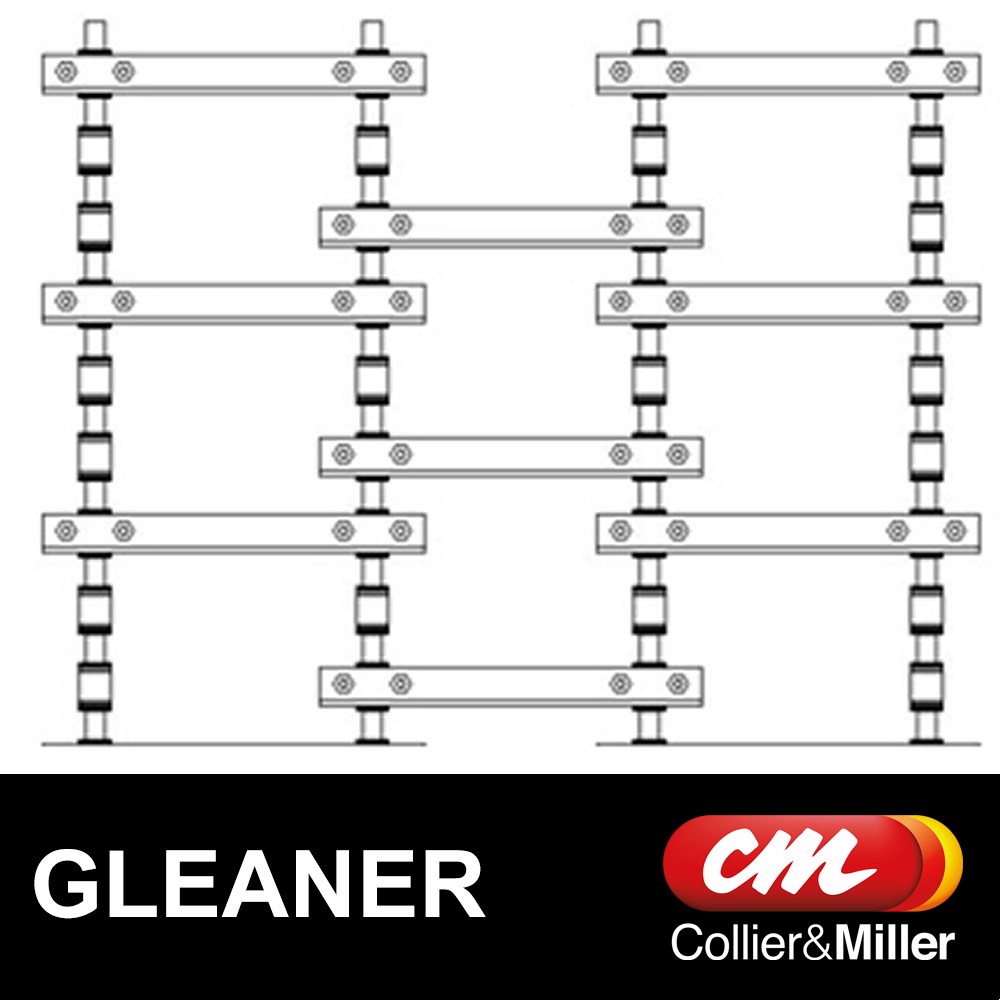

NAttachment Pattern	6-2/4-2/4-66	Same as OEM
Number of Pitches	97	Including Connectors
Supplied Connectors	4 x Conns 4 x Offset Links	Threaded
Assembly Width (Overall)
Number of bars	48	Not included
Chain centre to centre	396mm + 396mm + 396mm	15-5/8"+15-5/8"+15-5/8"
Bar Type	6mm U-Bar G350	Not included
Bolts	192 x CM121 1/2" X 1.0" UNC GRADE 8	Not included
Nuts	192 x NCCN12 1/2" CONE LOCK NUT	Not included
