Collier & Miller

A557 6-2/4-2/4-6 4 ROW 85L 42B R65 R75>2007 R66 R76

Product Code: CM016OEMCP

Detail
Technical
Interchange
Downloads

AGCO® Gleaner™ Compatible

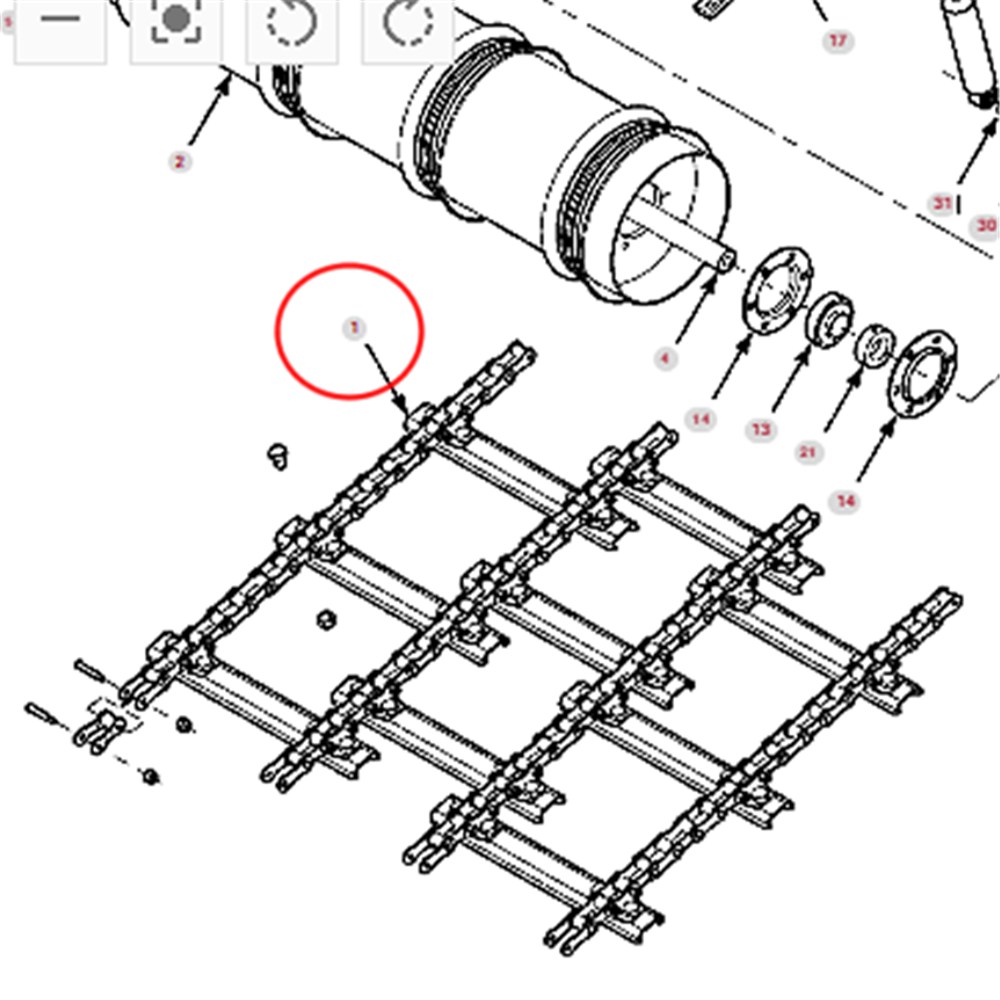

Feeder House Chain Assembly - Rear Chain

C&M replacement complete feeder house chain assembly to suit the rear conveyor on AGCO Gleaner® R-Series combine harvesters fitted with the 4 chain setup .This is a set of replacement chains fiited with electroplated 6mm roll-serrated u-bar slats with the same spacing as the AGCO Gleaner® original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation.

Part number

71449024

Series	Models	Serial/Year
AGCO® Gleaner™ R-Series	R65 & R65	EFF SN FROM HS72101
	R66 & R76	ALL

Features

C&M assembled in Australia
Fits Rear Feeder Conveyour Elevator
Premium grade chrome pin chain
Zinc plated 6mm roll-seratted U-Bar
Threaded connectors & half links included
Claas 10.9 bolts treated with loctite
Torque-prevailing cone lock nuts
Assembled ready to install

C&M Technical Specifications

Item	Details	Notes
CM016OEMCP	Gleaner R Series R65 R75 EFF SN HS72101 R66 R76 SLL	Check serial numbers
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Chrome Pin
Chain Assembly	1 Chain with bars
Attachment Pattern	6-2/4-2/4-6	Same as OEM
Number of Pitches	85	Including Connectors
Supplied Connectors	4 x Conns 8 x Offset Links	Threaded
Assembly Width (Overall)
Number of bars	42
Chain centre to centre	396mm + 396mm + 396mm	15-5/8"+15-5/8"+15-5/8"
Bar Type	6mm U-Bar G350	Roll serrated & electroplated
Bolts	168 x CM121 1/2" X 1.0" UNC GRADE 8	Threadlocker Pre-Treated
Nuts	168 x NCCN12 1/2" CONE LOCK NUT	Torque prevailing
