Claas® Lexion™ Compatible
Feeder House Chain Assembly - 4 Chain

APS Width 1420mm

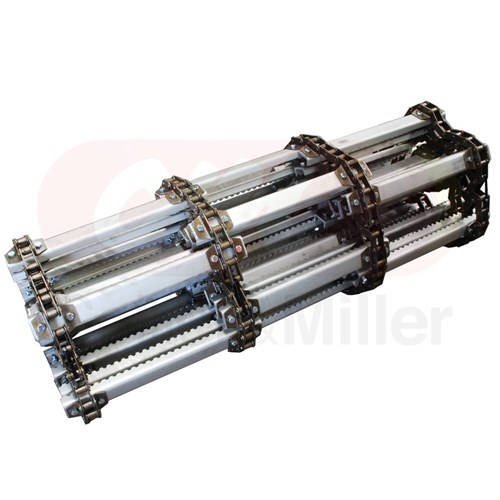

C&M replacement complete feeder house chain assembly to suit the front feeder house on CLAAS® & CAT® LEXION™ combine harvesters with APS width of 1420mm.This is a set of four (4) replacement chains fitted with roll-serrated and electroplated 6mm u-bars with the same spacing as the original CLAAS chains.

This complete chain assembly is supplied as CA512 (CA624 38.4 VB) with connectors and half links for each strand. We supply these chains in Australia from premium Drives USA made chain and grade 350 electroplated roll-serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit new sprockets at the time of installation.

Series	Models	Serial/Year
Cat® LEXION™ 500 NA	560R 570R 575R 580R 585R	Cat® North American APS with 1420mm
Claas® LEXION™ 500 Euro	570	European
Claas® LEXION™ 600	620, 630	Gen 1, 2 & 3
Cat® LEXION™ 700 NA	730, 740, 750	Cat® North American APS with 1420mm
Claas® LEXION™ 700 Euro	740, 750, 760	From C5500395 APS width 1420mm
Claas® LEXION™ 5000 Series	5300 5400 5500
Claas® LEXION™ 7000 Euro series	7400, 7500, 7600, 7700	European
Claas® LEXION™ 7000 NA series	7400	North Amerian

Features

• C&M assembled in Australia
• 4 X Chain assembly
• APS (Accelerated Pre-Separation) width of 1420mm
• Premuim Drives USA CA512(CA624) 38.4mm pitch chain
• Electroplated grade 350 6mm roll-serrated u-bars
• Connectors & half links included
• Bolted assembly ready to install

Item	Details	Notes
CM019OEM	Claas Feeder House Chain Assembly	1420mm APS
Chain Type	CA512 38.4V	38.4MM Pitch
Chain Brand	Drives Inc.	Stamped Drives
Chain Assembly	4 Chain with bars
Attachment Pattern	6 - 2/4-2/4 - 6	Same as Claas®
Number of Links	108	Including Connector
Supplied Connectors	1 x Conns 2 x Offset Links Cottered	Threaded
Assembly Width (Overall)	1220mm
Number of bars	54
Chain centre to centre	378mm + 378mm + 378mm
Bar Type	6mm U-Bar G350	Roll-Serrated & Electroplated
Bolts	216 x M10X25 Class 10.9	Threadlocker Pre-Treated
Nuts	216 x M10 Cone lock	Torque prevailing

Open Build Sheet

5181871 0005181870 0005181871CL

Warranty Policy

Collier & Miller’s warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.

This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.

Conditions of warranty

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR AND FITTED WITH NEW SPROCKETS. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
