Claas® Lexion™ Compatible

Feeder House Chains Only Set - 4 Chain

APS Width 1420mm

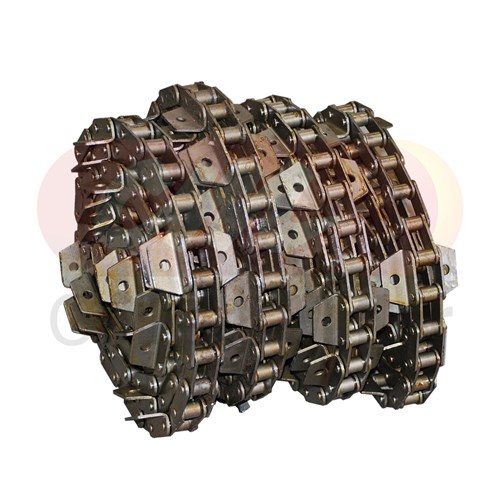

C&M replacement feeder house chains-only kit to suit the front feeder house on some models of CLAAS® LEXION™ combine harvesters. This is a set of four (4) replacement chains only to fit your existing CLAAS® slats.

You can re-chain your assembly using the original CLAAS® slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from Timken® Drives Inc. USA premium grade chain. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation.

Part Number

• Center x 2 0005200690CL Outer x 2 0005200680CL

Series	Models	Serial/Year
Claas® LEXION™	740, 750	From C5500395 APS width 1420mm

Features

• Premuim Drives USA CA512(CA624) chain
• 4 X Chains (2 Inner & 2 Outer)
• Cottered 4 x connectors and 8 x half links included
• Bolts & nuts not included

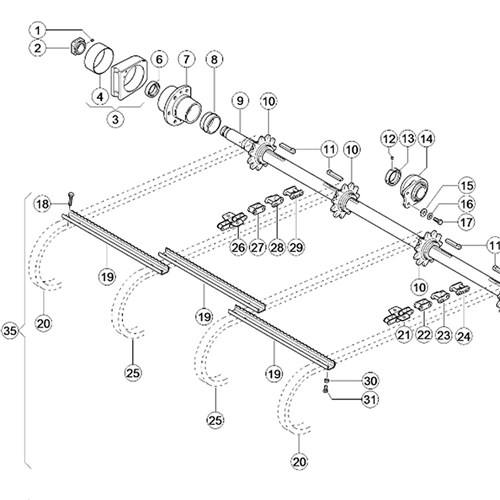

Item	Details	Notes
CM019OEMCO	Claas Feeder House Chain	sET1420mm APS
Chain Type	CA512 38.4V	38.4MM Pitch
Chain Brand	Drives Inc.	Stamped Drives
Chain Assembly	4 Chain	Bars not included
Attachment Pattern	6 - 2/4-2/4 - 6	Same as Claas®
Number of Links	108	Including Connector
Supplied Connectors	1 x Conns 2 x Offset Links Cottered	Threaded
Assembly Width (Overall)	1220mm
Number of bars	54	Not included
Chain centre to centre	378mm + 378mm + 378mm
Bar Type	6mm U-Bar G350	Not included
Bolts	216 x M10X25 Class 10.9	Not included
Nuts	216 x M10 Cone lock	Not included

Open Build Sheet

Warranty Policy

Collier & Miller’s warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.

This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.

Conditions of warranty

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR AND FITTED WITH NEW SPROCKETS. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
