Claas Compatible®

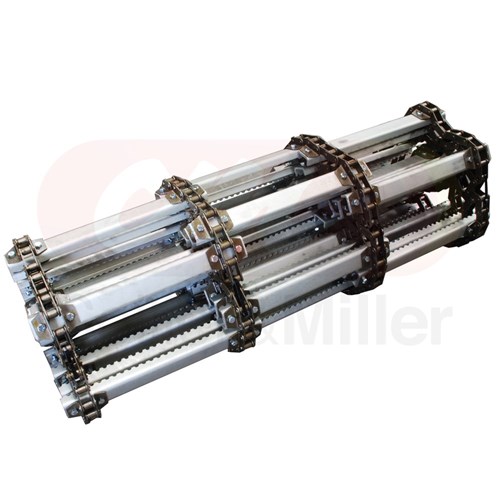

Feeder House Chain Assembly

C&M replacement complete feeder house chain assembly to suit the front feeder house on CLAAS® LEXION™ combine harvesters with APS width 1700mm (Chain Assembly Width is 1505mm). This is a set of four (4) replacement chains fitted with roll-serrated and electroplated 6mm u-bars with the same spacing as the original CLAAS® chains.

This complete chain assembly is supplied as CA512 (also known as CA624) with connectors and half links for each strand. We supply these chains in Australia from premium Drives USA made chain and grade 350 electroplated roll-serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation.

Series	Models	Serial/Year
Claas® LEXION™	770, 780	From C5500395 APS width 1700mm
		* Chain assembly width overall is 1505mm

Features

• C&M assembles in Australia
• 4 X Chain assembly - width of 1505mm
• APS (Accelerated Pre-Separation Drum) width of 1700mm
• Premuim Drives USA CA512 (CA624) chain
• Electroplated grade 350 6mm roll-serrated u-bars
• Connectors & half links included
• Bolted assembly ready to install

Technical Specifications

Assembly Code	CM021OEM
Assembly Width	1505mm (59.21")	APS width 1700mm
Chain Type	CA512(CA624)	Drives Inc USA
Chain Attachment	K1
Chain Strands	4
Chain Length	108 Links	Inc Connectors
Chain Connectors	4	Cottered
Chain Offset Links	8	Cottered
Bar Length	558.8mm (22.0")	6mm U-Bar Roll Serrated G350 Zinc
Bar Quantity	54  x 6mm Roll-Serrated U-Bars	All bars the same
Bar Chain Center	475mm (18.500")
Fastener Specs	M10X25 Zinc Class 10.9 Loctite - 35Nm	M10 Zinc torque prevailing cone lock nut

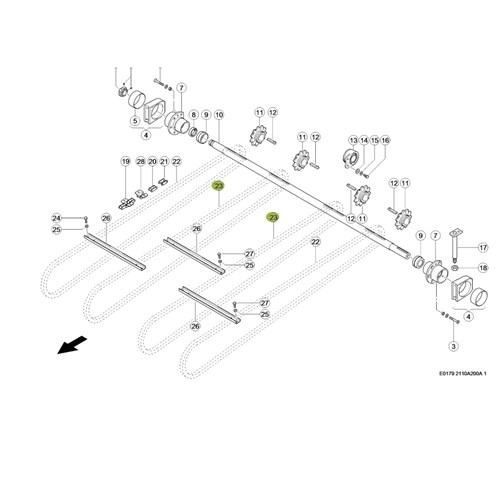

Build Sheet

0005179341CL 5179341 5179340 5179342 5179343 5179344 5179345 5179346 5179347 5179348 5179349 517934 517934.1 517934.2 517934.3 517934.4 517934.5 517934.6 517934.7 517934.8 517934.9 0005179340CL
