Claas® Lexion™ Compatible

Feeder House Chain Only Set - 4 Chain

APS WIDTH 1700mm

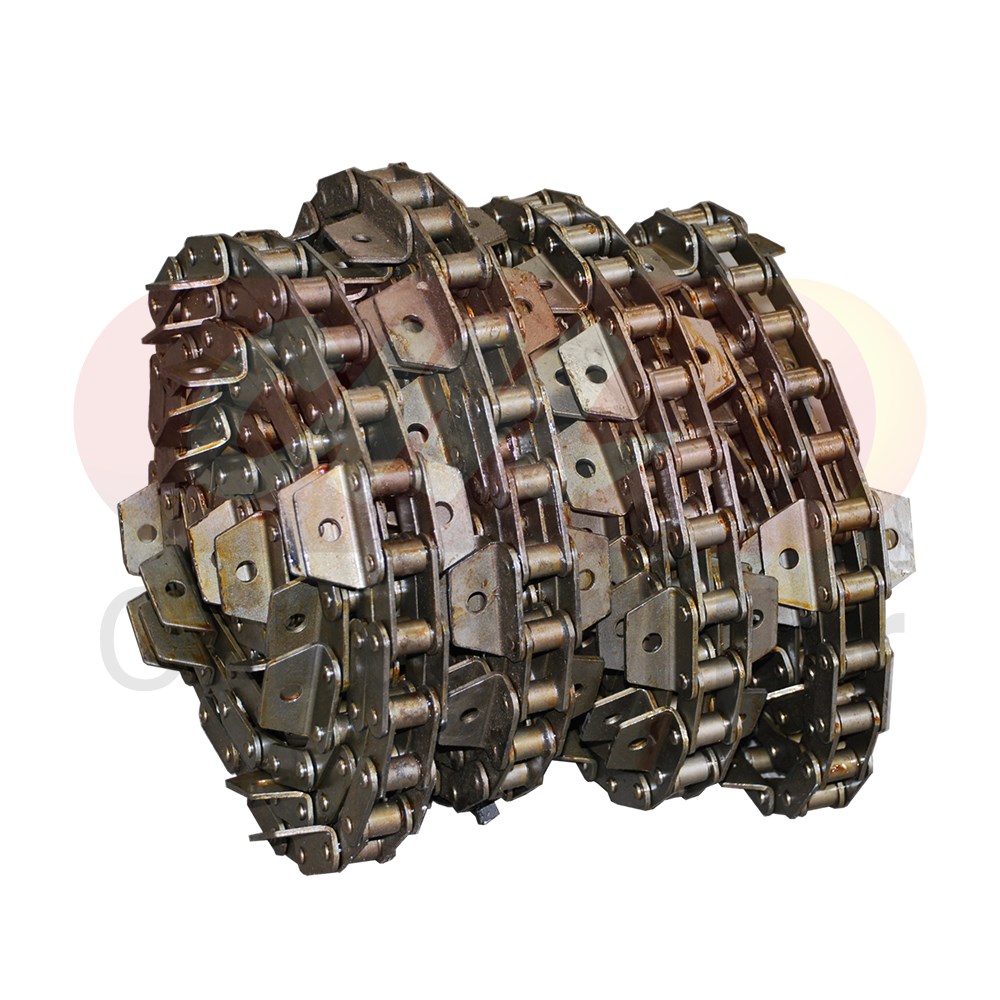

C&M replacement feeder house chains-only set to suit the front feeder house on some models of CLAAS® LEXION™ combine harvesters. This is a set of four (4) replacement chains only to fit your existing CLAAS® slats.

You can re-chain your assembly using the original CLAAS® slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from Timken® Drives Inc. USA premium grade chain. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation.

Part Number

• Center x 2 0005200690CL Outer x 2 0005200680CL

Series	Models	Serial/Year
LEXION	770, 780	From C5500395 APS width 1700mm

Features

• Premuim Drives USA CA512(CA624) chain
• 4 X Chains (2 Inner & 2 Outer)
• Cottered 4 x connectors and 8 x half links included
• Bolts & nuts not included

Item	Details	Notes
CM021OEMCO	Claas Feeder House Chains only	Chains Only
Chain Type	CA512 38.4V	38.4MM Pitch
Chain Brand	Drives Inc	Stamped Drives
Chain Assembly	4 Chain
Attachment Pattern	6 - 2/4 - 2/4- 6
Number of Links	108	Including Connector
Number of slats	54	Not included
Assembly Width (Overall)	1500mm	Fits 1700mm APS feeder
Chain centre to centre	470mm + 470mm + 470mm
Slat Type	6mm U-Bar	Not included
Supplied Connectors	1 x Conns 2 x Offset Links Cottered	Per strand
Bolts	216 x M10X25 Class 10.9	Not included
Nuts	216 x M10 Cone lock	Not included

Build Sheet

0005200690CL 0005200680CL 5200690 5200680 5200691 5200681 5200692 5200682 5200693 5200683 5200694 5200684 5200695 5200685 5200696 5200686 5200697 5200687 5200698 5200688 5200699 5200689 520068 520068.1 520068.2 520068.3 520068.4 520068.5 520068.6 520068.7 520068.8 520068.9 0005201710CL 5201710 5201711 5201712 5201713 5201714 5201715 5201716 5201717 5201718 5201719 520171 520171.1 520171.2 520171.3 520171.4 520171.5 520171.6 520171.7 520171.8 520171.9 0006305672CL 6305672 6305670 6305671 6305673 6305674 6305675 6305676 6305677 6305678 6305679 630567 630567.1 630567.2 630567.3 630567.4 630567.5 630567.6 630567.7 630567.8 630567.9 0006305670CL

Warranty Policy

Collier & Miller’s warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.

This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.

Conditions of warranty

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR AND FITTED WITH NEW SPROCKETS. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
