CASE IH CHAINS ONLY A557 8TH 2 ROW 72L 9B 1644/1666/2166 54.5" FEEDER

A557 8TH 2 ROW 72L 9B 1644/1666/2166 54.5" FEEDER

Product Code: CM028OEMCO

Detail
Technical
Interchange
Downloads

Case-IH® 1644 1666 2144 2166 2344 2366 Compatible

Feeder House Chains Only

54.5" FEEDER HOUSE

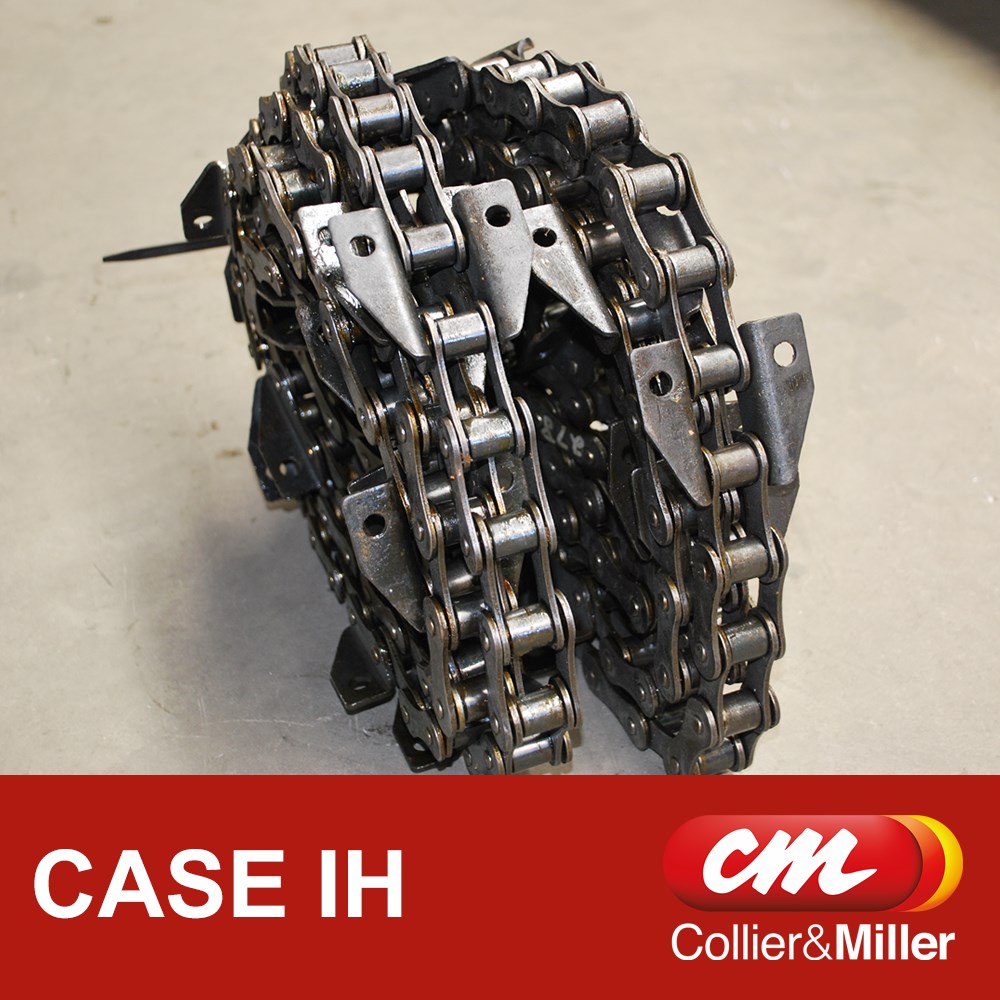

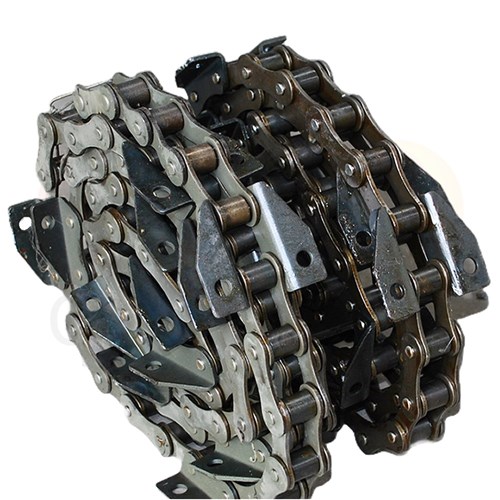

C&M replacement feeder house chains only to suit the front feeder house on CASE-IH® Mid-Series combine harvesters.This is a set of 2 replacement chains with the same spacing and attachment holes as the Case-IH® original chain.

You can re-chain your assembly using the original Case-IH® slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade black-pin chain. We guarantee the quality of these unit, however we recommend you fit new sprockets at the time of installation.

Part Numbers

107871A1 107928A1

Series	Models	Serial/Year
Case-IH® 16 Series	1644, 1666
Case-IH® 21 Series	2144, 2166
Case-IH® 23 Series	2344 2366

Features

C&M Assembled In Australia
Fits 54.5" feeder house
Premium grade pin chain
2 x Connectors & 4 x Half Links Included
Same spacing as CNH® OEM Assembly
No fasteners supplied - reuse your original bolts

C&M Technical Specifications

Item	Details	Notes
CM028OEMCO	Case-IH® Early Series	54.5" feeder
Chain Brand	AMEC	Stamped C&M
Chain Type	A557

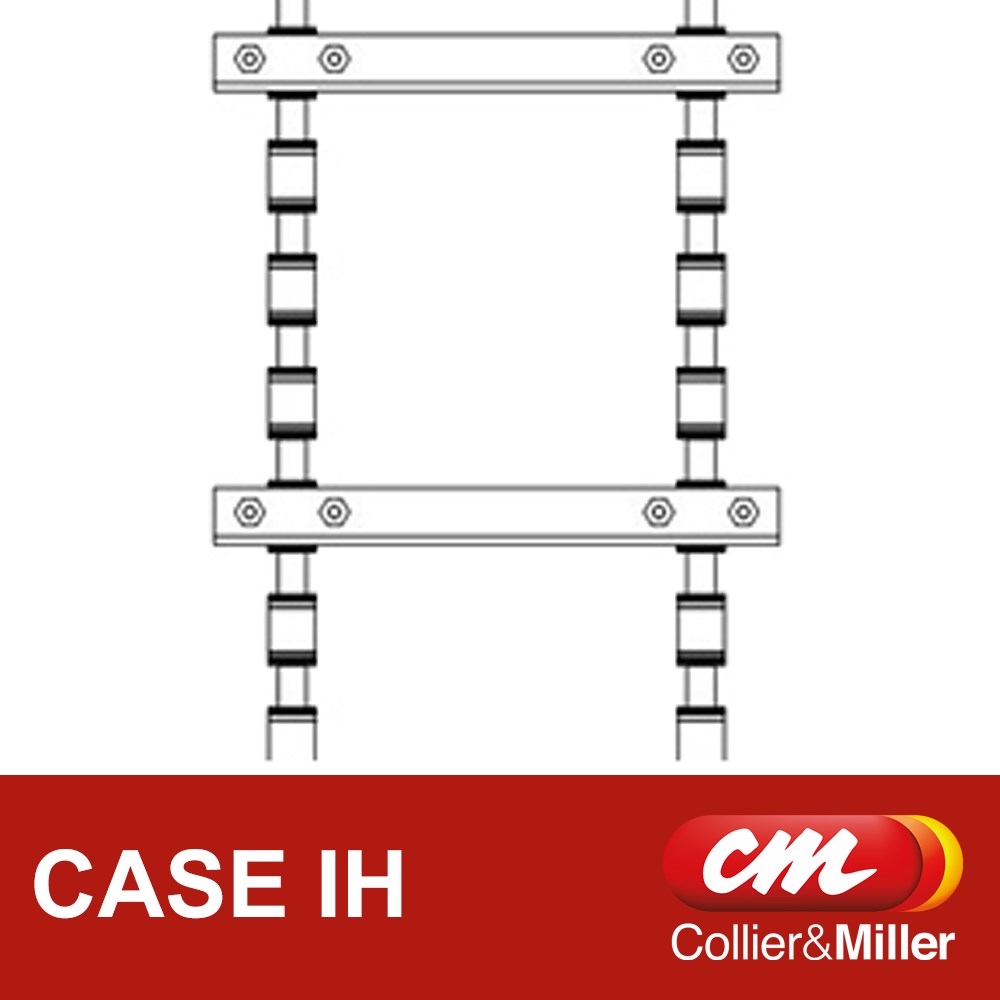

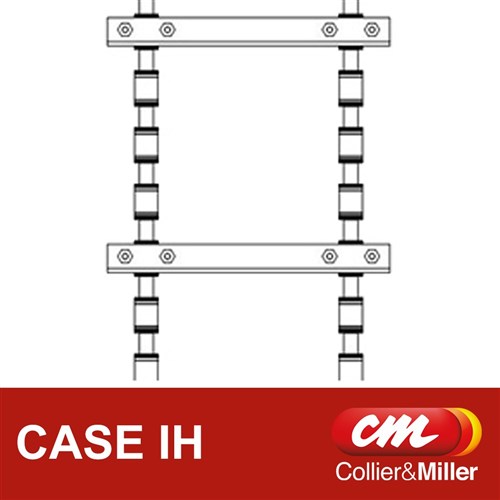

Chain Assembly	2 Chain	No Bars
Attachment Pattern	8th	Same as Case-IH OEM
Number of Pitches	71	Including Connectors
Supplied Connectors	2 x Conns 6 x Offset Links	Threaded
Assembly Width (Overall)	867mm
Number of bars	9
Chain centre to centre	690mm
Bar Type	6mm U-Bar G350	Not included
Bolts	36 x M10X25 Class 10.9	Not included
Nuts	36 x M10 Cone lock	Not included
