CASE IH FEEDER CHAIN ASSY A557 6TH 2 ROW 69L 12B 1480/1680 54.5" FEEDER

A557 6TH 2 ROW 69L 12B 1480/1680 54.5" FEEDER

Product Code: CM030OEM

Detail
Technical
Interchange
Downloads

Case-IH® 1480 1680 1688 2188 Compatible

Feeder House Chain With Stiffener

54.5" feeder house.

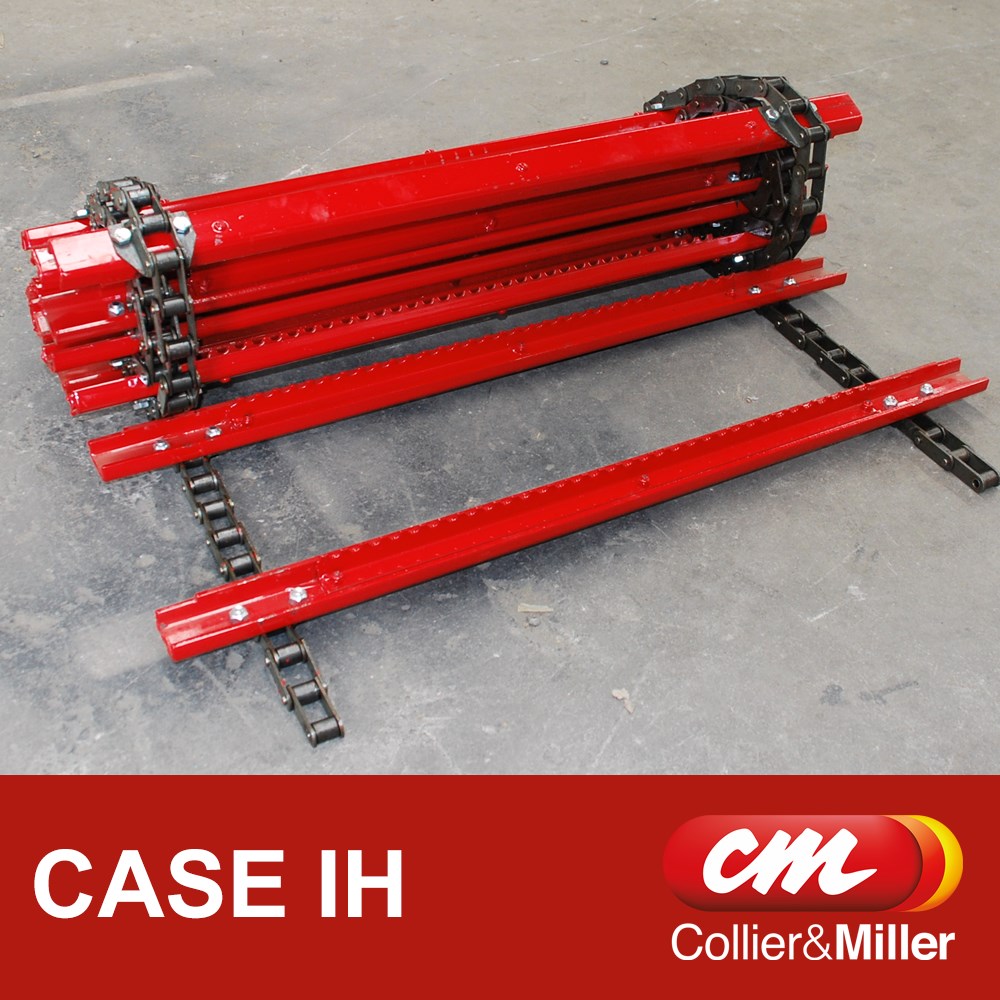

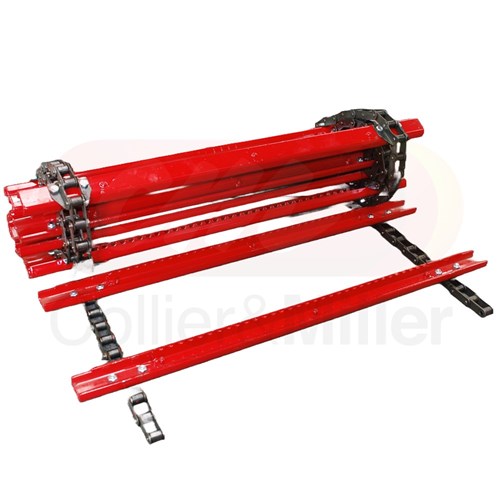

C&M replacement complete feeder house chain assembly to suit the front feeder house on early model Case-IH® combine harvesters.This is a set of two (2) replacement chains fiited with zinc plated 6mm serrated U-Bar slats and stiffeners with the same spacing as the CNH® original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chain and high performance electroplated, roll-serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation

Part Numbers

1324721C92 1319204C91 117872A1 117866A1

Series	Models	Serial/Year
Case-IH® 1400 Series	1480
Case-IH® 1600 Series	1680 1688
Case-IH® 2100 Series	2188

Features

Fits 54.5" feeder house
Premium grade chain
Electroplated rolled serration 6mm u-bar
Slat material grade 350MPa yield strength
Connectors & half links included
Bolted assembly ready to install.

C&M Technical Specifications

Item	Details	Notes
CM030OEM	Case-IH® Early Series	54.5" feeder
Chain Brand	AMEC	Stamped C&M
Chain Type	A557
Chain Assembly	2 Chain with bars	Bars have stiffeners installed
Attachment Pattern	6th	Same as Case-IH OEM
Number of Pitches	69	Including Connectors
Supplied Connectors	2 x Conns 4 x Offset Links	Threaded
Assembly Width (Overall)	1100MM
Number of bars	12
Chain centre to centre	925MM
Bar Type	6mm U-Bar G350	Roll serrated & electroplated with stiffener
Bolts	48 x M10X25 Class 10.9	Threadlocker Pre-Treated
Nuts	48 x M10 Cone lock	Torque prevailing
