CASE IH FEEDER CHAINS ONLY A557 6TH 2 ROW 69L 12B 1480/1680 54.5" FEEDER

A557 6TH 2 ROW 69L 12B 1480/1680 54.5" FEEDER

Product Code: CM030OEMCO

Detail
Technical
Interchange
Downloads

Case-IH® 1480 1680 1688 2188 Compatible

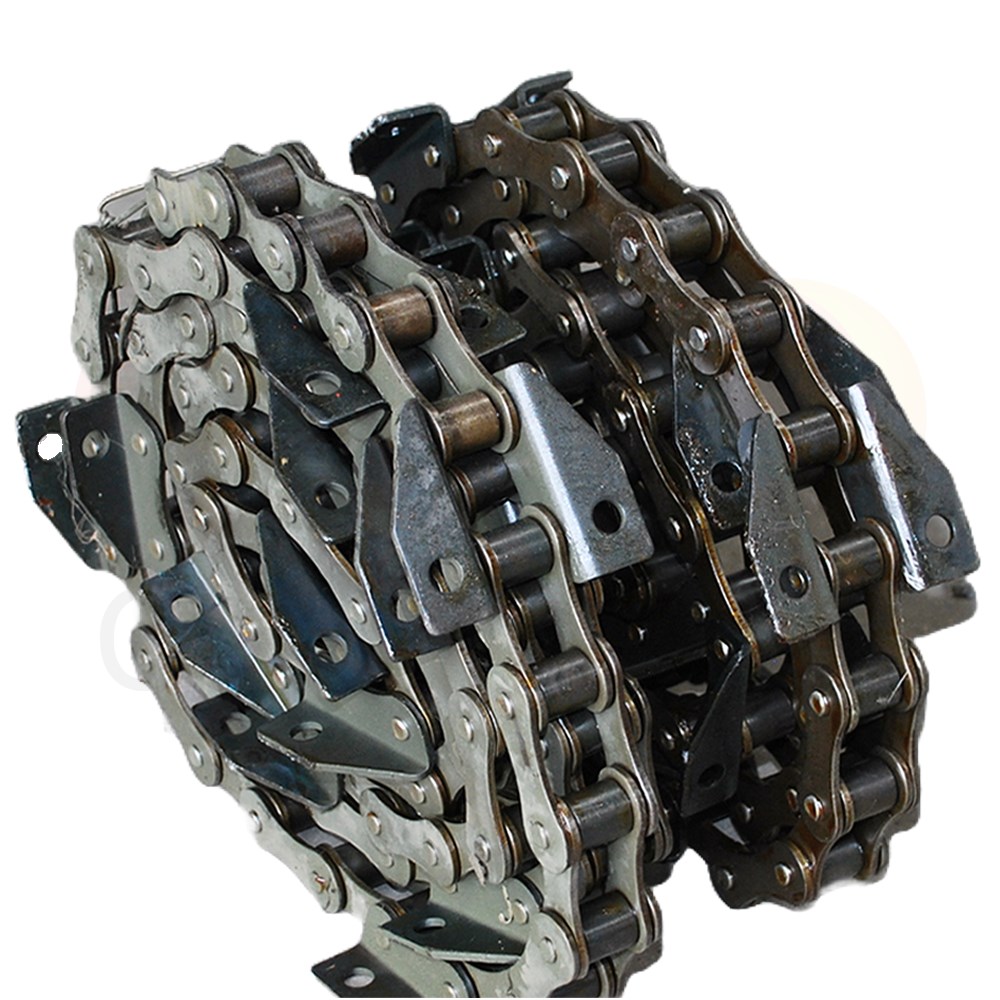

Feeder House Chains Only Set

54.5" FEEDER HOUSE

C&M replacement feeder house chains only set to fit the front feeder house on CASE-IH® Mid-Series combine harvesters.This is a set of 2 replacement chains with the same spacing and attachment holes as the Case-IH® original chain.

You can re-chain your assembly using the original Case-IH® slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade black-pin chain. We guarantee the quality of these unit, however we recommend you fit new sprockets at the time of installation.

Part Numbers

1324721C92 1319204C91 117872A1 117866A1

Series	Models	Serial/Year
Case-IH® 1400 Series	1480
Case-IH® 1600 Series	1680 1688
Case-IH® 2100 Series	2188

Features

C&M Assembled In Australia
Premium grade pin chain
2 x Connectors & 4 x Half Links Included
Same spacing as CNH® OEM Assembly
No fasteners supplied - reuse your original bolts

C&M Technical Specifications

Item	Details	Notes
CM030OEMCO	Case-IH® Early Series	54.5" feeder
Chain Brand	AMEC	Stamped C&M
Chain Type	A557
Chain Assembly	2 Chain	No Bars
Attachment Pattern	6th	Same as Case-IH OEM
Number of Pitches	69	Plus Connectors
Supplied Connectors	2 x Conns 4 x Offset Links
Assembly Width (Overall)	1100MM
Number of bars	12
Chain centre to centre	925MM
Bar Type	6mm U-Bar G350	Not included
Bolts	48 x M10X25 Class 10.9	Not included
Nuts	48 x M10 Cone lock	Not included
