CASE-IH® Compatible Feeder House Chain Assembly (Non Rock-Trap)

Keep your product feeding system in top condition with this premium Australian-assembled feeder house chain. Specifically engineered for Case IH® late model 240, 250 and 260 series flagship combines (Non Rock-Trap models), this assembly ensures consistent crop flow and reliable performance during the busiest harvest windows.

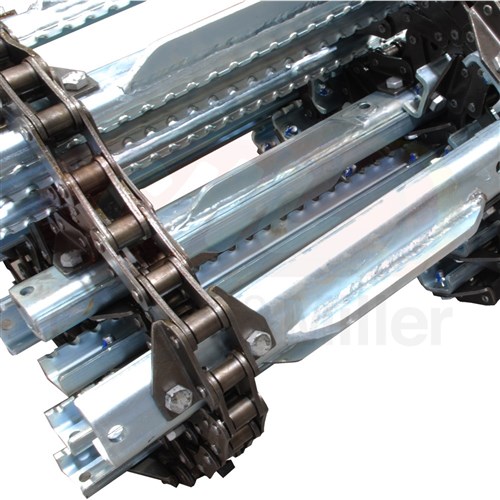

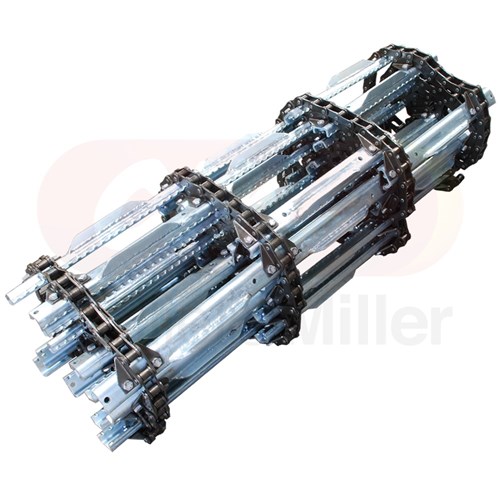

This complete assembly features a set of four (4) heavy-duty strands utilizing premium 960D chrome pin chain for an extended service life. The system is fitted with 42 high-performance, 6mm zinc-plated serrated U-bars with a bottom web, precision-fabricated from G350 steel to match the original Case IH® spacing. We recommend fitting a new sprocket at the time of installation to maintain peak feeder house efficiency and protect your new chain from premature wear.

Flagship Series Model Compatibility

Replaces OEM Part Numbers: 51534633 (250 Series), 90433430 (260 Series)

Feeder House Chain for Case IH 7250, 8250, 9250 and 7260, 8260, 9260 Models

Series	Models	Details
Case-IH® 250 Series	7250, 8250, 9250	Non Rock-Trap
Case-IH® 260 Series	7260, 8260, 9260	Non Rock-Trap

Technical Specifications & Features

• Quality Assurance: Assembled in Australia to keep your equipment in top condition.
• Chain Type: Premium 960D Chrome Pin Chain for maximum durability.

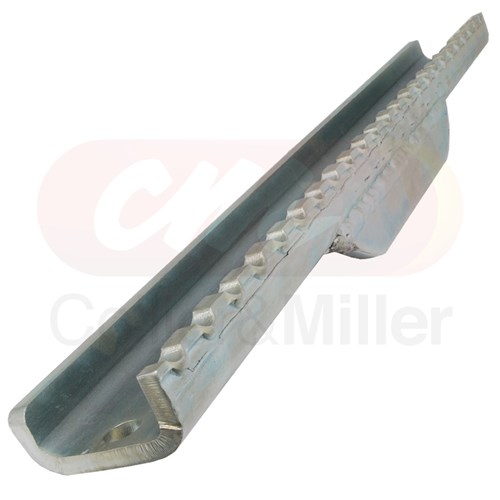

• Slat Configuration: 42 x Fabricated G350, rolled-serration electroplated 6mm U-bars.
• Assembly: Supplied fully assembled with 4 x threaded connectors for straightforward installation.
• Extended Service Life: Chrome pin construction provides superior wear resistance in abrasive conditions.
• Available for fast Australia-wide dispatch from Collier & Miller.

51534633 90433430

Warranty Policy

Collier & Miller’s warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.

This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.

Conditions of warranty

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR AND FITTED WITH NEW SPROCKETS. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
