CASE FEEDER SPROCKET ASSY 15T

SPROCKET ONLY 250 SERIES 7250 8250 9250 NON CLUTCHED

Product Code: CM48101428
  $2250.00
EACH inc GST
Afterpay Logo
Unavailable for this order
In Stock Low Stock Contact Us Please See Attributes 1
Increase value Decrease value

  • Detail

CASE-IH® Compatible
250 Series Feeder House Sprocket

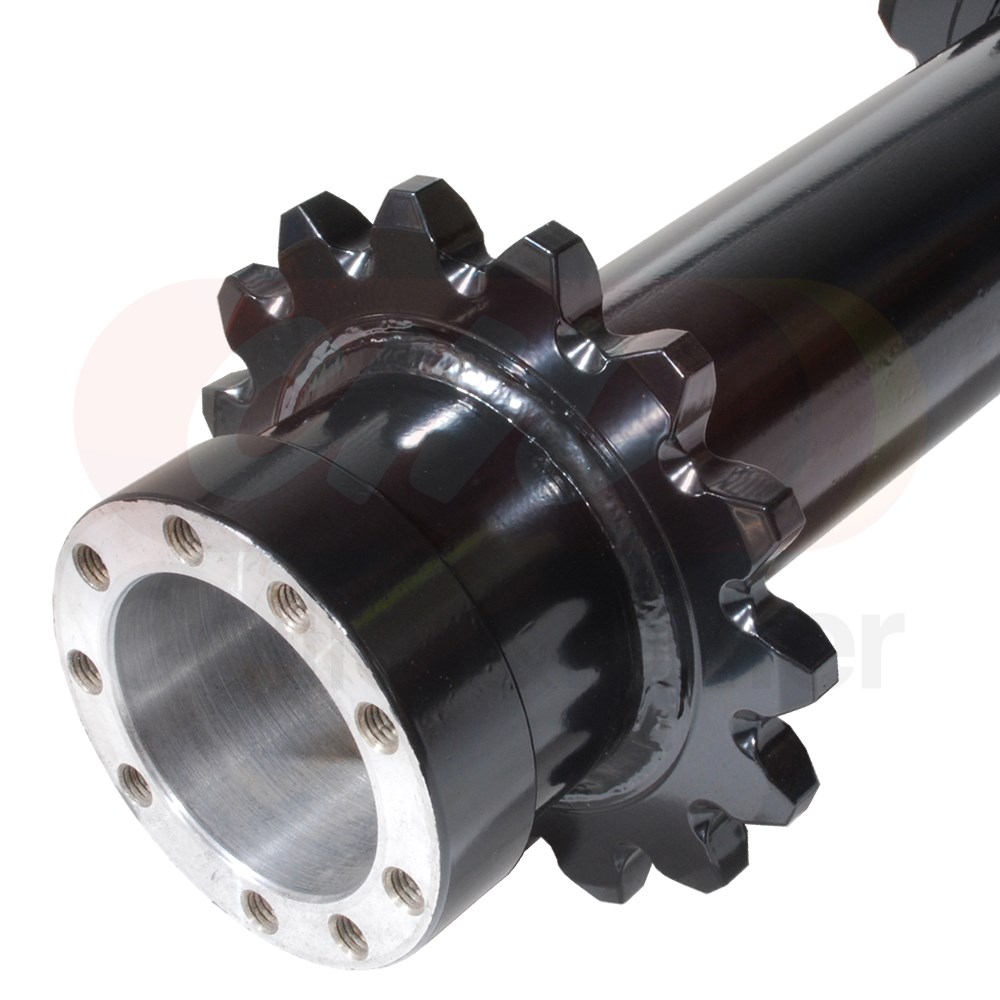

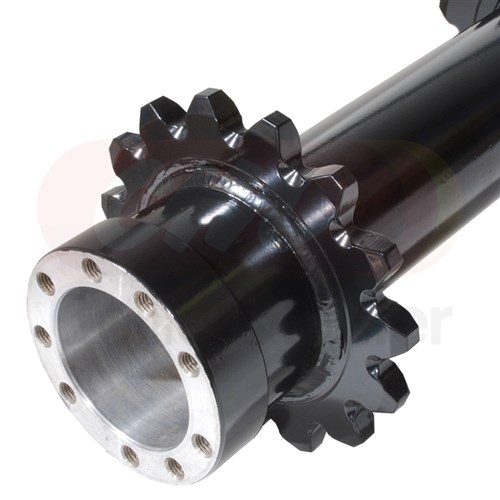

C&M aftermarket feeder house sprocket to fit CASE-IH® 250 Series combine harvesters. This is an Australian made feeder house sprocket which fits the feeder house on CASE-IH® 250 series (7250, 8250, 9250) combine harvesters. This assembly is machined to accept the CASE-IH® feeder gearbox flange as supplied with the original sprocket.

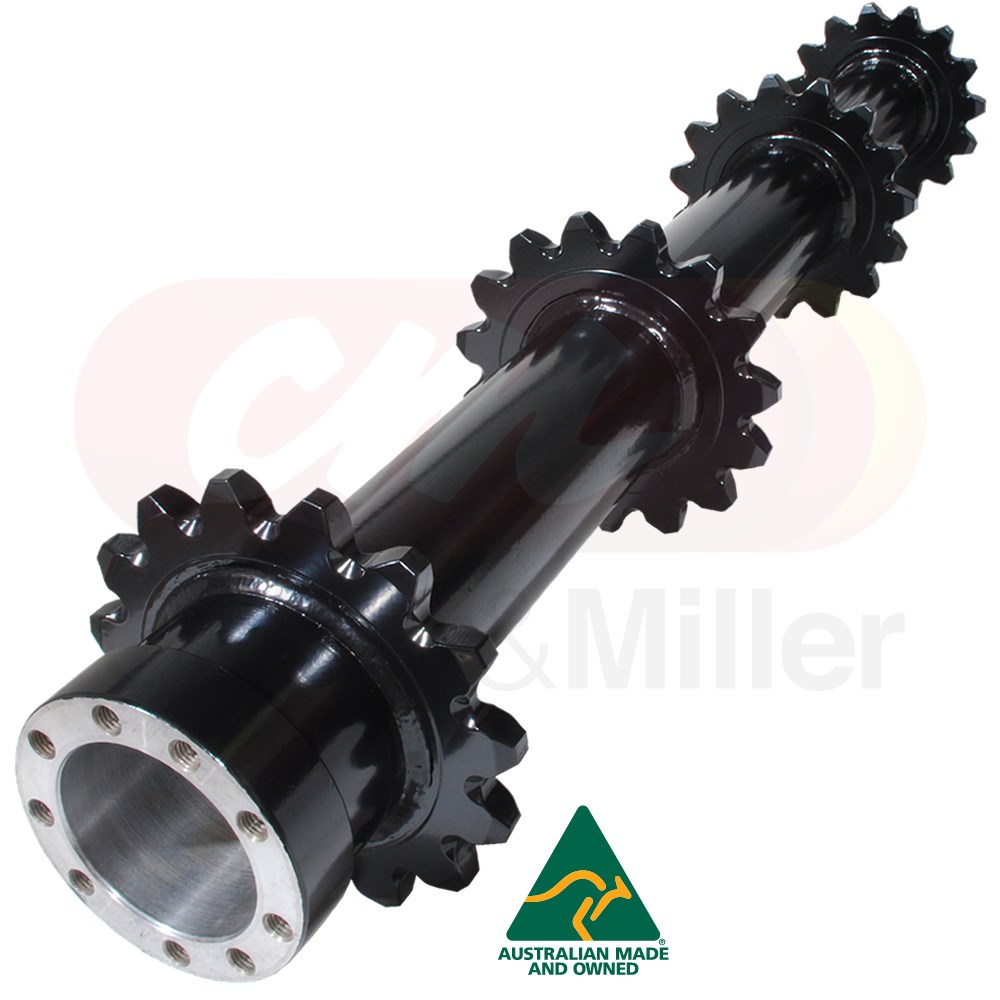

Manufactured as a single piece tube assembly it is supplied with 4 x 15 Tooth sprockets machined from grade 1045 steel, welded to a central tube and fitted with a female hub one end and threaded on the other. The sprocket will fit existing Case-IH® combine harvesters as the female hub will accept the OEM Case-IH® gearbox flange. All components are Australian made with machining being done in our factory.

Part Numbers
  • 48101428
Series Models Serial/Year/Part#
Case 250 Series 7250, 8250, 9250 non-clutched

Features
  • C&M Made In Australia
  • Sprocket supplied ready to accept 48150111 Hub
  • Special heavy wall seamless tube to cope with high radial loading
  • Special design tooth relief
  • Grade 1045 sprocket material
  • Powdercoat black finish
THE SUPPLIED SPROCKET IS MANUFACTURED TO ACCEPT YOUR EXISTING GEARBOX FLANGE. YOU WILL BE REQUIRED TO RE-USE THESE CASE-IH® COMPONENTS:
  • 48150111 Gearbox Flange
  • 48150115 Plug
  • 11061575 Locking Ring
  • 48150120 Hub
  • 48127083 Shaft
Case-IH® Compatible ensures the C&M aftermarket part will fit the machine model stated based on our research and customer feedback. C&M parts are an aftermarket product and do not make a claim to be a genuine Case-IH® part. It is recommended prior to ordering you should verify the parts will fit your equipment. Case-IH® is a registered trademark of CNH Industrial America LLC
